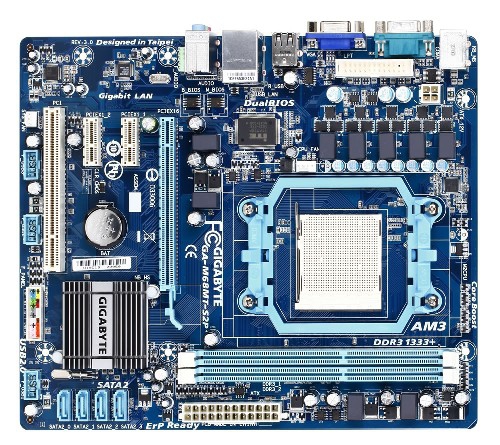

GIGABYTE GA-M68MT-S2P Socket AM3 micro ATX
Model GA-M68MT-S2PPart no. M68MT-S2PEAN 818313010995
56 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1, 5, 10, JBOD
- Parallel processing technology supportNot supported
- USB 2.0 ports quantity4
- Ethernet interface typeGigabit Ethernet
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1, 5, 10, JBOD
- Parallel processing technology support
- Not supported
- USB 2.0 ports quantity
- 4
- Ethernet interface type
- Gigabit Ethernet
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-M68MT-S2P
- Part numbers
- M68MT-S2P, GA-M68MT-S2P-R3, GA-M68MT-S2P-R1, GA-M68MT-S2P-R3.1, GA-M68MT-S2P-R2.3
- EAN / UPC
- 818313010995, 4719331816162
- Also known as
- GIGABYTE GA-M68MT-S2P Socket AM3 micro ATX
Specifications
56 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
| Compatible processor series | AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 800,1066,1333 MHz |
| Maximum internal memory | 8 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 512MB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | NVIDIA |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |

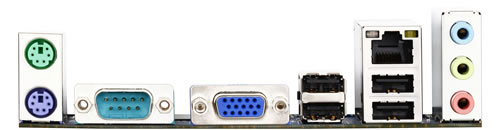

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 2 |
| Microphone in | Yes |
| Parallel ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8211CL |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 7 / Vista / XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| ACPI version | 1.0b |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 225 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Trial software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Special features | Supports @BIOS Supports Q-Flash Support for Xpress BIOS Rescue Supports Download Center Supports Xpress Install Supports Xpress Recovery2 Supports EasyTune(Note 4) |
