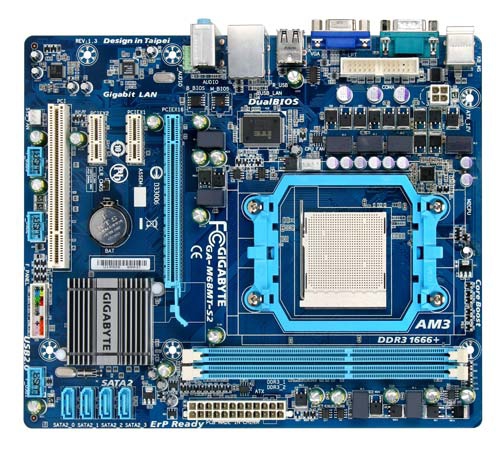

GIGABYTE GA-M68MT-S2 (rev. 1.3)
Model GA-M68MT-S2 (rev. 1.3)Part no. GA-M68MT-S2EAN 818313011961
58 specifications
- Processor manufacturerAMD
- Number of memory slots2
- Supported storage drive interfacesSATA
- Parallel processing technology supportNot supported
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- Supported storage drive interfaces
- SATA
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-M68MT-S2 (rev. 1.3)
- Part number
- GA-M68MT-S2
- EAN / UPC
- 818313011961, 4719331846206
- Also known as
- GIGABYTE GA-M68MT-S2 (rev. 1.3) NVIDIA nForce 630a Socket AM3 micro ATX
Specifications
58 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
| Compatible processor series | AMD Phenom II X2 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 800,1066,1333,1666 MHz |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | NVIDIA |
| Graphics card | GeForce 7025 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |

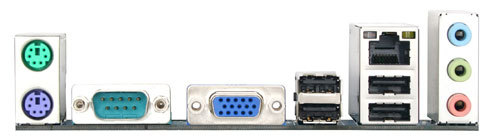

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8211CL |
| Wake-on-LAN ready | Yes |
| Wi-Fi standards | Not supported |
| Bluetooth | No |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | NVIDIA |
| Motherboard chipset | NVIDIA nForce 630a |
| Audio chip | Realtek ALC888B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows XP Windows Vista Windows 7 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 16 Mbit |
| ACPI version | 1.0b |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 206 mm |
Packaging content
| Specification | Value |
|---|---|
| Trial software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
