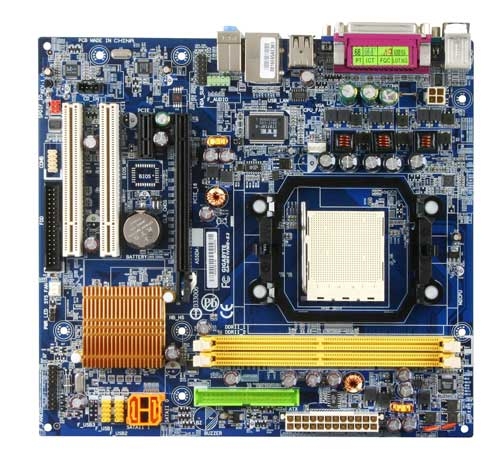

GIGABYTE GA-M61VME-S2 motherboard Socket AM2 micro ATX
Model GA-M61VME-S2
26 specifications
- Processor manufacturerAMD
- Number of memory slots2
- USB 2.0 ports quantity4
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- Motherboard form factor
- micro ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-M61VME-S2
- Part number
- GA-M61VME-S2
- Also known as
- GIGABYTE GA-M61VME-S2 motherboard Socket AM2 micro ATX
Specifications
26 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Processor system buses supported | 2000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 1 PCI Express x 16 slot - 1 PCI Express x 1 slot - 2 PCI slots |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Special features | - Download Center - Q-Flash - EasyTune (Note 3) - Xpress Install - Xpress Recovery2 - Xpress BIOS Rescue |
| I/O ports | - 1 parallel port - 1 COMA port - 1 VGA port |
