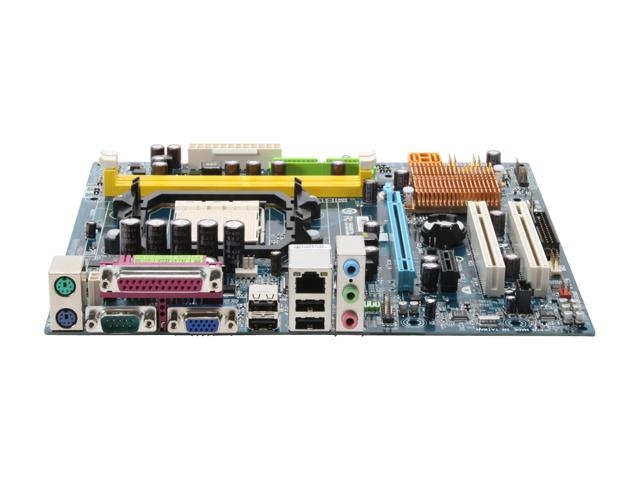

GIGABYTE GA-M61SME-S2 NVIDIA GeForce 6100/nForce 405 chipset
Model GA-M61SME-S2 NVIDIA GeForce 6100/nForce 405 chipsetPart no. GA-M61SME-S2EAN 818313003409
29 specifications
- Processor manufacturerAMD
- Number of memory slots2
- USB 2.0 ports quantity4
- Networking features10/100 Ethernet
- Motherboard form factormicro ATX
- Width244 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- Networking features
- 10/100 Ethernet
- Motherboard form factor
- micro ATX
- Width
- 244 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-M61SME-S2 NVIDIA GeForce 6100/nForce 405 chipset
- Part number
- GA-M61SME-S2
- EAN / UPC
- 818313003409, 4719331812065
- Also known as
- GIGABYTE GA-M61SME-S2 NVIDIA GeForce 6100/nForce 405 chipset Socket AM2 micro ATX
Specifications
29 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100 Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC883 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 1 PCI Express x 16 - 1 PCI Express x 1 - 2 PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 245 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Graphics controller | NVIDIA CineFX 3.0 |
