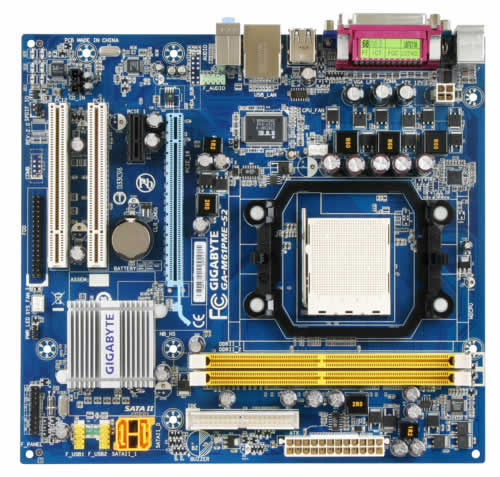

GIGABYTE GA-M61PME-S2 motherboard Socket AM2 micro ATX
Model GA-M61PME-S2EAN 818313005199
35 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1
- USB 2.0 ports quantity4
- Networking featuresGigabit Ethernet
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1
- USB 2.0 ports quantity
- 4
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- micro ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-M61PME-S2
- Part number
- GA-M61PME-S2
- EAN / UPC
- 818313005199, 4719331852030
- Also known as
- GIGABYTE GA-M61PME-S2 motherboard Socket AM2 micro ATX
Specifications
35 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Processor system buses supported | 2000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x 16 1 x PCI Express x 1 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 225 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | IDE |
| Controller interface type | SATA |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-M61PME-S2 motherboard Socket AM2 micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-M61PME-S2 motherboard Socket AM2 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-M61PME-S2 motherboard Socket AM2 micro ATX
All motherboard comparisons- GIGABYTE GA-M61PME-S2 motherboard Socket AM2 micro ATX vsGIGABYTE GA-MA74GM-S2H motherboard AMDCompare specs
- GIGABYTE GA-M61PME-S2 motherboard Socket AM2 micro ATX vsGIGABYTE GA-EX38-DQ6 Socket 774 ATXCompare specs
- GIGABYTE GA-M61PME-S2 motherboard Socket AM2 micro ATX vsGIGABYTE GA-G31MF-S2 motherboard LGA 775 (Socket T) micro ATXCompare specs
- GIGABYTE GA-M61PME-S2 motherboard Socket AM2 micro ATX vsGIGABYTE GA-MA78GM-S2H motherboard AMDCompare specs
- GIGABYTE GA-M61PME-S2 motherboard Socket AM2 micro ATX vsMSI K9A2GM-FIH motherboard AMDCompare specs
- GIGABYTE GA-M61PME-S2 motherboard Socket AM2 micro ATX vsMSI K9N2 DiamondCompare specs

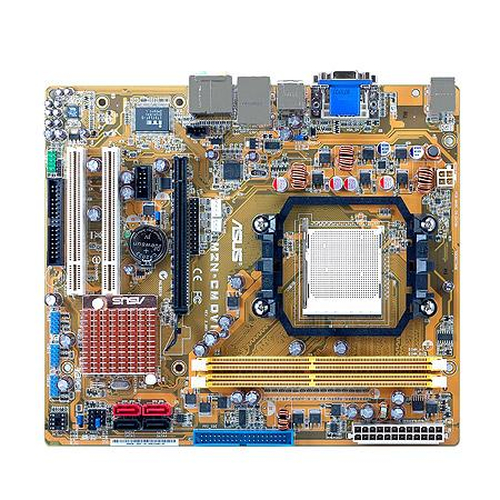

- GIGABYTE GA-M61PME-S2 motherboard Socket AM2 micro ATX vsASUS M2N-CM DVI - 7025 AM2+ HT2000Compare specs

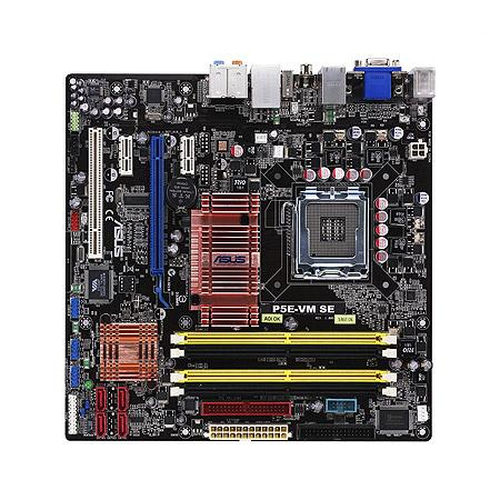

- GIGABYTE GA-M61PME-S2 motherboard Socket AM2 micro ATX vsASUS P5E-VM SE/G35 775 FSB 1333Compare specs
