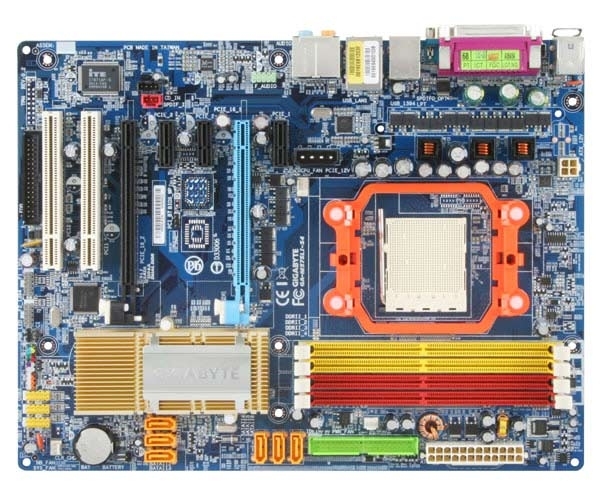

GIGABYTE GA-M57SLI-S4 motherboard Socket AM2 ATX
Model GA-M57SLI-S4EAN 4719331821180
27 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors3
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-M57SLI-S4
- Part number
- GA-M57SLI-S4
- EAN / UPC
- 4719331821180
- Also known as
- GIGABYTE GA-M57SLI-S4 motherboard Socket AM2 ATX
Specifications
27 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Processor system buses supported | 2000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 2 PCI Express x 16 slot - 3 PCI Express x 1 slot - 2 PCI slots |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Special features | - Download Center - Q-Flash - EasyTune (Note 3) - Xpress Install - Xpress Recovery2 - Xpress BIOS Rescue |
