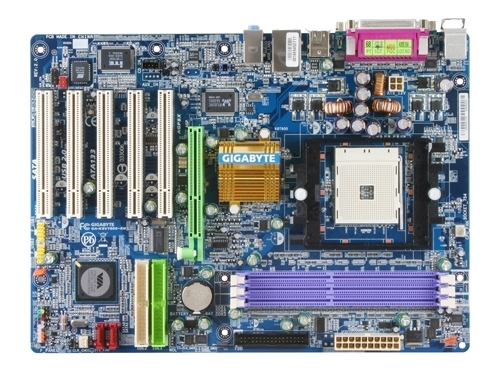

GIGABYTE GA-K8VT800-RH motherboard Socket 754 ATX
Model GA-K8VT800-RH
28 specifications
- Processor manufacturerAMD
- Number of memory slots3
- USB 2.0 connectors2
- USB 2.0 ports quantity4
- Networking featuresEthernet LAN
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 3
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Networking features
- Ethernet LAN
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-K8VT800-RH
- Part number
- GA-K8VT800-RH
- Also known as
- GIGABYTE GA-K8VT800-RH motherboard Socket 754 ATX
Specifications
28 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 754 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 3 |
| Maximum internal memory | 3 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking features | Ethernet LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 8x/4x (AGP 3.0) 5 x PCI (PCI 2.2) |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 295 mm |
| Depth | 215 mm |
Other features
| Specification | Value |
|---|---|
| Audio output | Realtek ALC850 AC'97 Audio Codec |
| Floppy disk drive connector | Yes |
