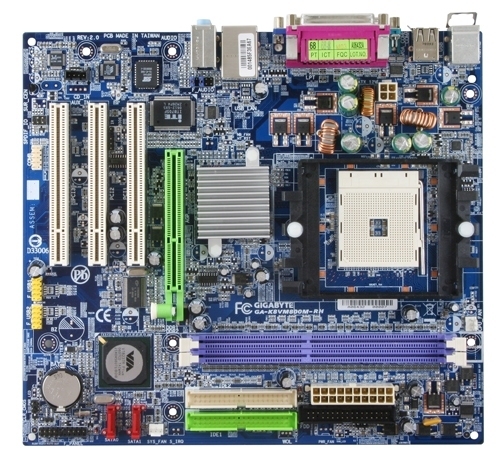

GIGABYTE GA-K8VM800M-RH motherboard VIA K8M800 Socket 754 micro ATX
Model GA-K8VM800M-RHEAN 4719331826079
31 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1
- USB 2.0 ports quantity4
- Networking features10/100Mbps Ethernet
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1
- USB 2.0 ports quantity
- 4
- Networking features
- 10/100Mbps Ethernet
- Motherboard form factor
- micro ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-K8VM800M-RH
- Part number
- GA-K8VM800M-RH
- EAN / UPC
- 4719331826079
- Also known as
- GIGABYTE GA-K8VM800M-RH motherboard VIA K8M800 Socket 754 micro ATX
Specifications
31 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 754 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100Mbps Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | VIA K8M800 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 8x/4x (AGP 3.0) 3 x PCI (PCI 2.2) |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 220 mm |
Other features
| Specification | Value |
|---|---|
| Audio output | Realtek ALC 655 AC'97 Audio Codec |
| Floppy disk drive connector | Yes |
| Graphics controller | VIA UniChrome Pro Graphics |
What people say
Reviews & ratings
GIGABYTE GA-K8VM800M-RH motherboard VIA K8M800 Socket 754 micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-K8VM800M-RH motherboard VIA K8M800 Socket 754 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-K8VM800M-RH motherboard VIA K8M800 Socket 754 micro ATX
All motherboard comparisons- GIGABYTE GA-K8VM800M-RH motherboard VIA K8M800 Socket 754 micro ATX vsGIGABYTE GA-M61PM-S2 motherboard Socket AM2 micro ATXCompare specs

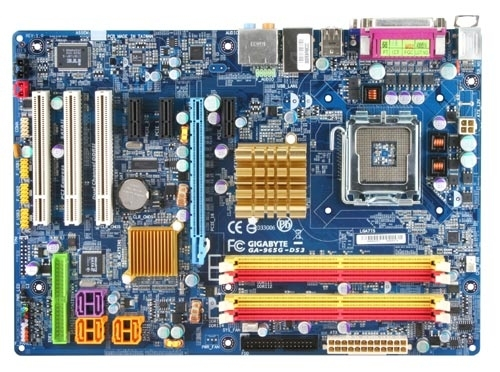

- GIGABYTE GA-K8VM800M-RH motherboard VIA K8M800 Socket 754 micro ATX vsGIGABYTE GA-965G-DS3 motherboard LGA 775 (Socket T) ATXCompare specs
