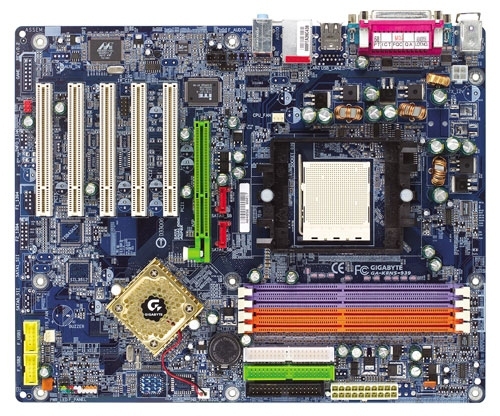

GIGABYTE GA-K8NS-939, nForce3 Ultra, Socket 939
Model GA-K8NS-939, nForce3 Ultra, Socket 939Part no. GA-K8NS-00-G1
29 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors2
- Networking featuresMarvell 8001 Gigabit Ethernet
- Motherboard form factorATX
- PCI slots5
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Networking features
- Marvell 8001 Gigabit Ethernet
- Motherboard form factor
- ATX
- PCI slots
- 5
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-K8NS-939, nForce3 Ultra, Socket 939
- Part number
- GA-K8NS-00-G1
- Also known as
- GIGABYTE GA-K8NS-939, nForce3 Ultra, Socket 939 ATX
Specifications
29 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 939 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 3 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| COM ports quantity | 2 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Marvell 8001 Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC850 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 5 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| AGP x8 slots | 1 |
| Floppy disk drive connector | Yes |
