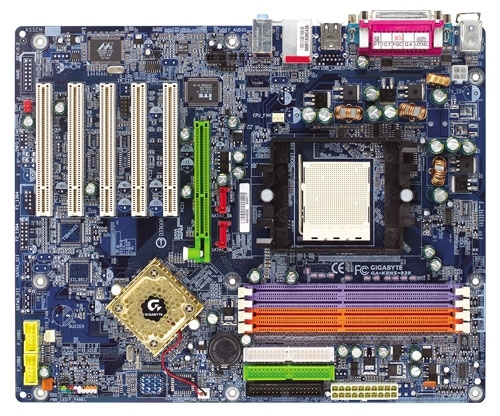

GIGABYTE GA-K8NS-939 Socket 939 ATX
Model GA-K8NS-939Part no. GA-K8NS939
23 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors2
- Motherboard form factorATX
- Expansion slots1 x AGP 5 x PCI (PCI 2.3)
- Width305 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Motherboard form factor
- ATX
- Expansion slots
- 1 x AGP 5 x PCI (PCI 2.3)
- Width
- 305 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-K8NS-939
- Part number
- GA-K8NS939
- Also known as
- GIGABYTE GA-K8NS-939 Socket 939 ATX
Specifications
23 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 939 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 3 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 2 |
| Parallel ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 5 x PCI (PCI 2.3) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Audio output | Realtek ALC850 Audio AC'97 |
| Floppy disk drive connector | Yes |
