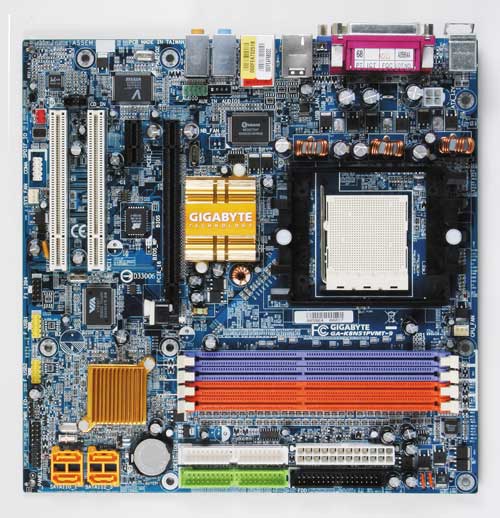

GIGABYTE GA-K8N51PVMT-9 motherboard Socket 939 micro ATX
Model GA-K8N51PVMT-9EAN 4719331842086
28 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors2
- Motherboard form factormicro ATX
- Width24.4 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Motherboard form factor
- micro ATX
- Width
- 24.4 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-K8N51PVMT-9
- Part number
- GA-K8N51PVMT-9
- EAN / UPC
- 4719331842086
- Also known as
- GIGABYTE GA-K8N51PVMT-9 motherboard Socket 939 micro ATX
Specifications
28 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 939 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Controller type | VIA VT 6307 IEEE1394 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC880 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI-Express X16 1 x PCI-Express X1 2 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 24.4 mm |
| Depth | 24.4 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| I/O ports | 1 x S-Video |
| Manageability features | NVIDIA Firewall NVIDIA RAID 0,1,0+1,5 Norton Internet Security Xpress Installation Xpress Recovery 2 |
