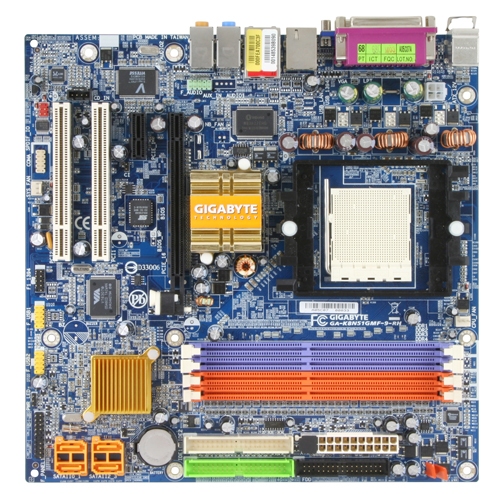

GIGABYTE GA-K8N51GMF-9-RH Socket 939 micro ATX
Model GA-K8N51GMF-9-RHPart no. K8N51GMF-9-RH
41 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels1, 0+1, 5
- USB 2.0 connectors2
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 1, 0+1, 5
- USB 2.0 connectors
- 2
- Motherboard form factor
- micro ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-K8N51GMF-9-RH
- Part numbers
- K8N51GMF-9-RH, GA-K8N51GMF-9-RH
- Also known as
- GIGABYTE GA-K8N51GMF-9-RH Socket 939 micro ATX
Specifications
41 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 939 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
| Flash memory | 4 MB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 1, 0+1, 5 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 2 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | No |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
| Modem (RJ-11) ports | 0 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
| Compatible operating systems | Windows Linux |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI-Express X16 slot 1 x PCI-Express X1 slot 2 x PCI slots (PCI 2.3 compliant) |
Other features
| Specification | Value |
|---|---|
| Audio output | Realtek ALC880 audio codec |
| Azalia Digital Header (ADH) connector | No |
| EZ plug connector | No |
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | No |
| RAID controller type | NVIDIA |
