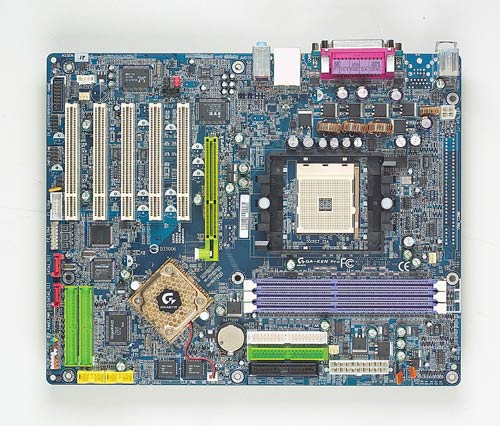

GIGABYTE GA-K8N Pro (rev. 1.x)
Model GA-K8N Pro (rev. 1.x)Part no. GA-K8N PRO
43 specifications
- Processor manufacturerAMD
- Number of memory slots3
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- LAN controllerRealtek RTL8110S
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 3
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- LAN controller
- Realtek RTL8110S
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-K8N Pro (rev. 1.x)
- Part number
- GA-K8N PRO
- Also known as
- GIGABYTE GA-K8N Pro (rev. 1.x) Socket 754 ATX
Specifications
43 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 754 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 3 |
| Supported memory clock speeds | 266,333,400 MHz |
| Maximum internal memory | 3 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 4 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| Number of IEEE1394 connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 2 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8110S |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC658 |
| Audio output channels | 6.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 98/ Me/ 2000/ XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 5 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| AGP x8 slots | 1 |
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | Yes |
| Quick installation guide | Yes |
