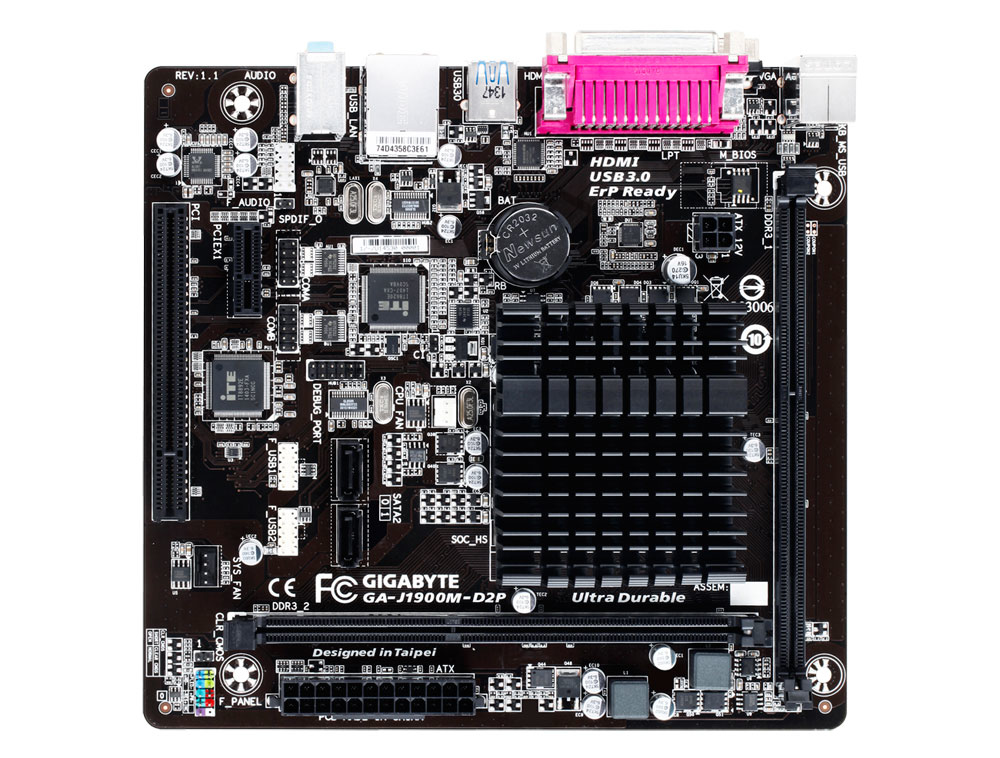

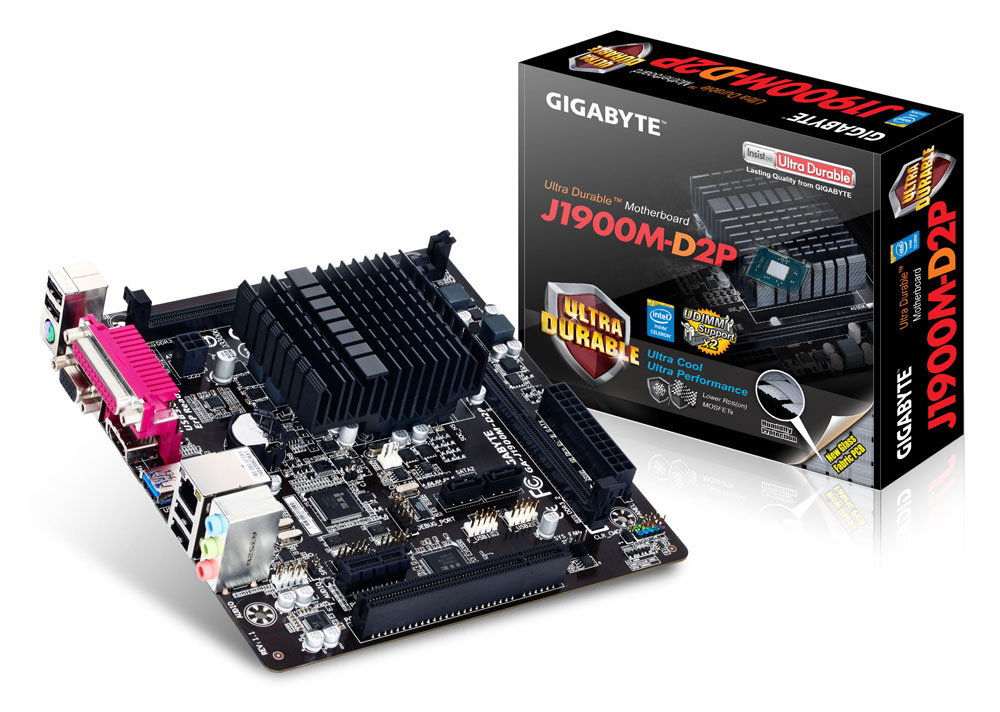

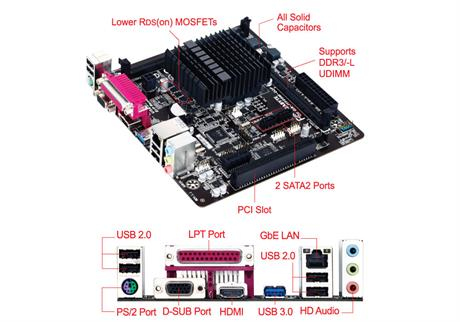

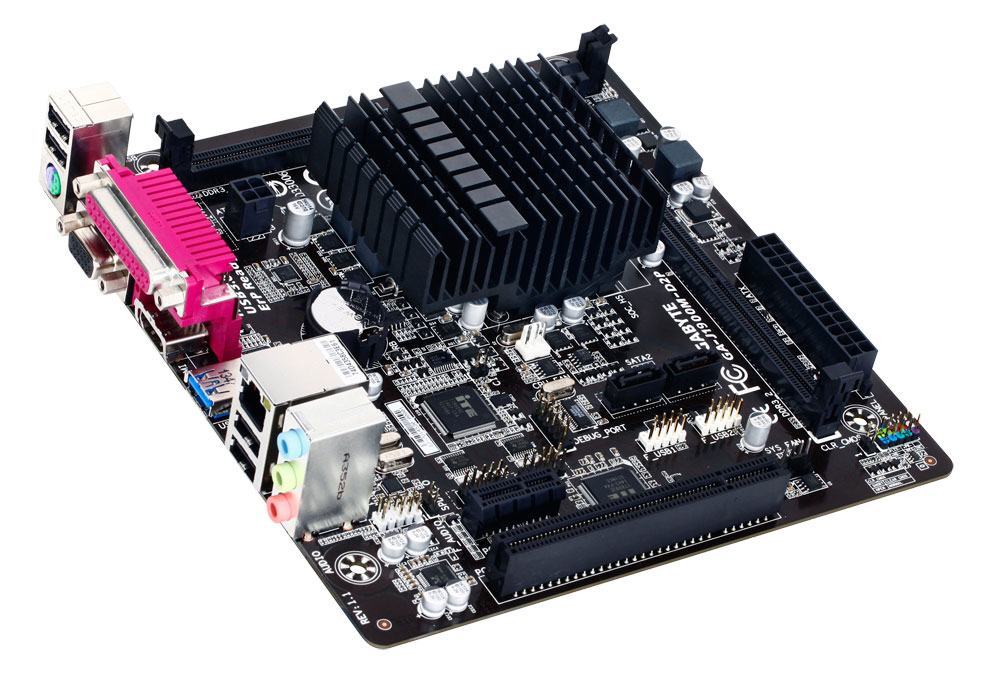

GIGABYTE GA-J1900M-D2P motherboard NA (integrated CPU) micro ATX

GIGABYTE GA-J1900M-D2P motherboard NA (integrated CPU) micro ATX

Model GA-J1900M-D2PEAN 4719331833206

54 specifications
  • ProcessorJ1900
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
  • Supported storage drive interfacesSATA II
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor
J1900
Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM, DDR3L-SDRAM
Supported storage drive interfaces
SATA II
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
GIGABYTE
Category
Motherboard
Model
GA-J1900M-D2P
Part number
GA-J1900M-D2P
EAN / UPC
4719331833206
Also known as
GIGABYTE GA-J1900M-D2P motherboard NA (integrated CPU) micro ATX

Specifications

54 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketNA (integrated CPU)
Compatible processor seriesIntel® Celeron®
Processor modelJ1900
Processor cores4

Memory

Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA II

Internal I/O

USB 2.0 connectors2
Number of SATA II connectors2
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
Parallel connectorYes
Serial port headers2

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs3
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedYes

Expansion slots

PCI Express x1 slots1
PCI slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version5.0
Clear CMOS jumperYes

Processor special features

Intel Rapid Storage TechnologyNo
Intel® Anti-Theft Technology (Intel® AT)No

Weight & dimensions

Width190 mm
Depth180 mm

Other features

Intel® vPro™ Platform EligibilityNo
Processor frequency2 GHz
