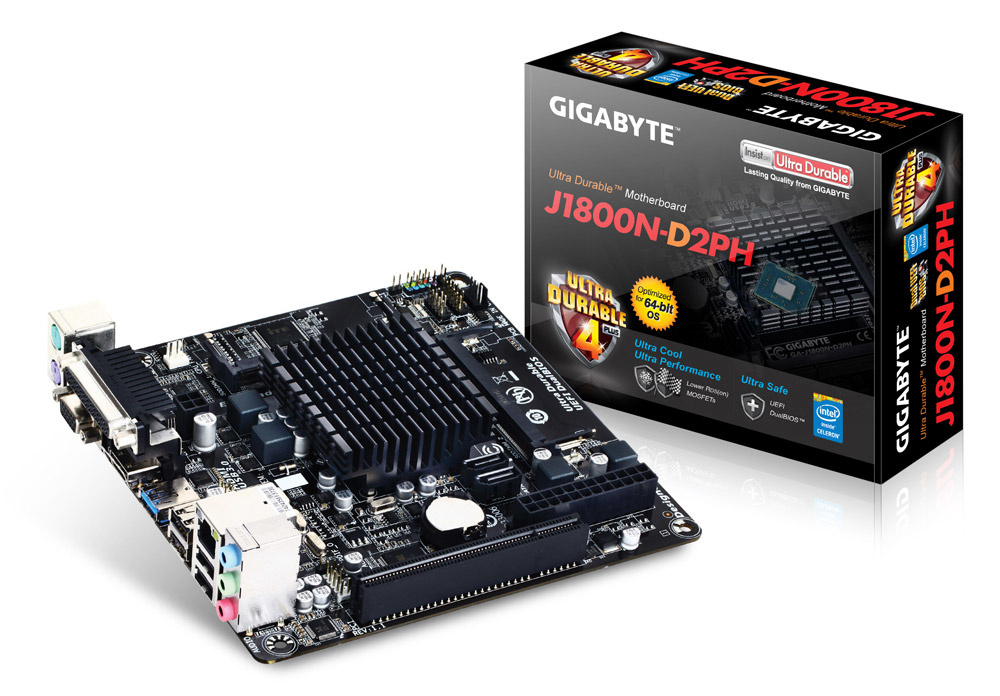

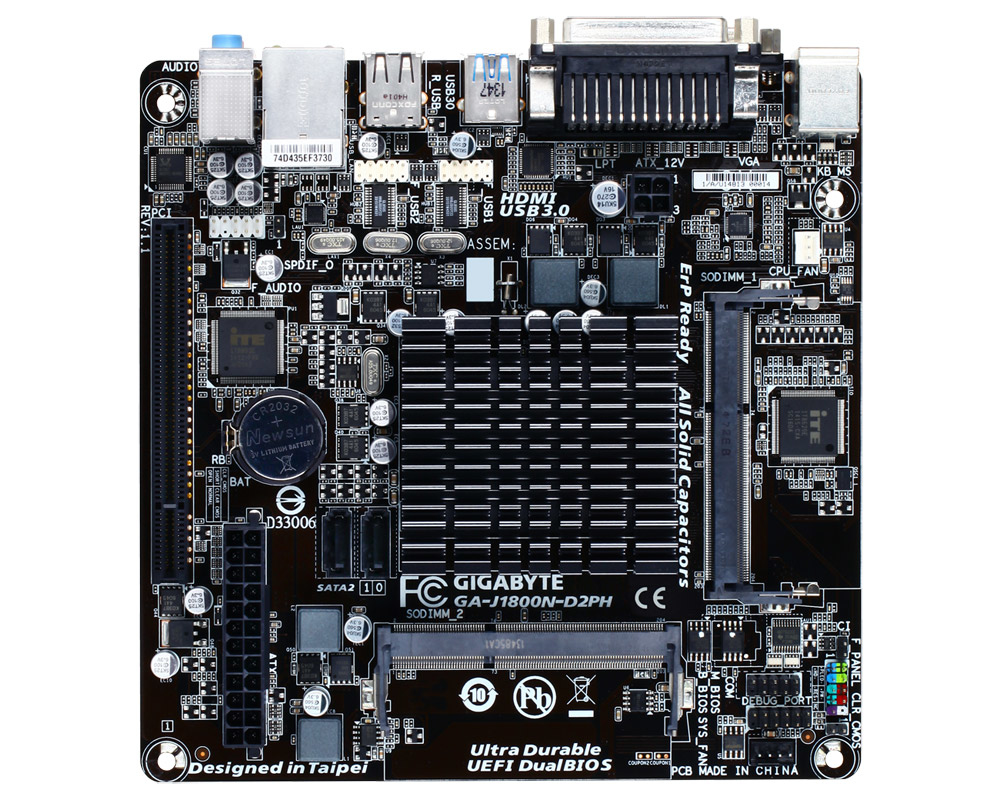

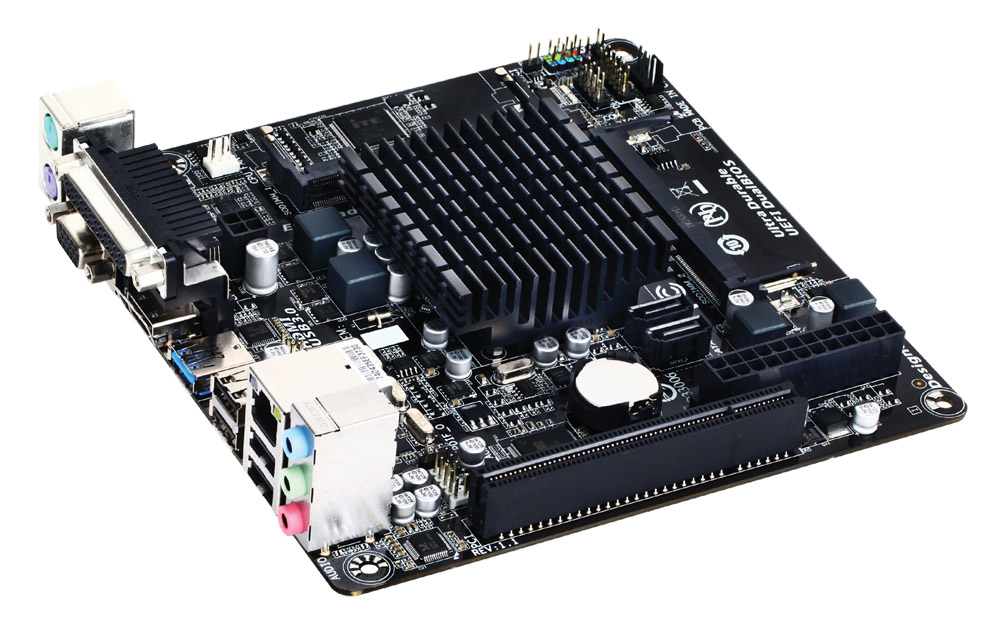

GIGABYTE GA-J1800N-D2PH (rev. 1.1)
Model GA-J1800N-D2PH (rev. 1.1)Part no. GA-J1800N-D2PH
66 specifications
- ProcessorJ1800
- Processor manufacturerIntel
- Supported memory typesDDR3L-SDRAM
- Supported storage drive interfacesSATA II
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
Overview
- Processor
- J1800
- Processor manufacturer
- Intel
- Supported memory types
- DDR3L-SDRAM
- Supported storage drive interfaces
- SATA II
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-J1800N-D2PH (rev. 1.1)
- Part number
- GA-J1800N-D2PH
- Also known as
- GIGABYTE GA-J1800N-D2PH (rev. 1.1) BGA 1170 mini ITX
Specifications
66 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | BGA 1170 |
| Compatible processor series | Intel® Celeron® |
| Maximum number of SMP processors | 1 |
| Processor model | J1800 |
| Processor cores | 2 |
| Processor thermal power (max) | 10 W |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3L-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1333 MHz |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 2560 x 1600 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 2 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Serial port headers | 1 |

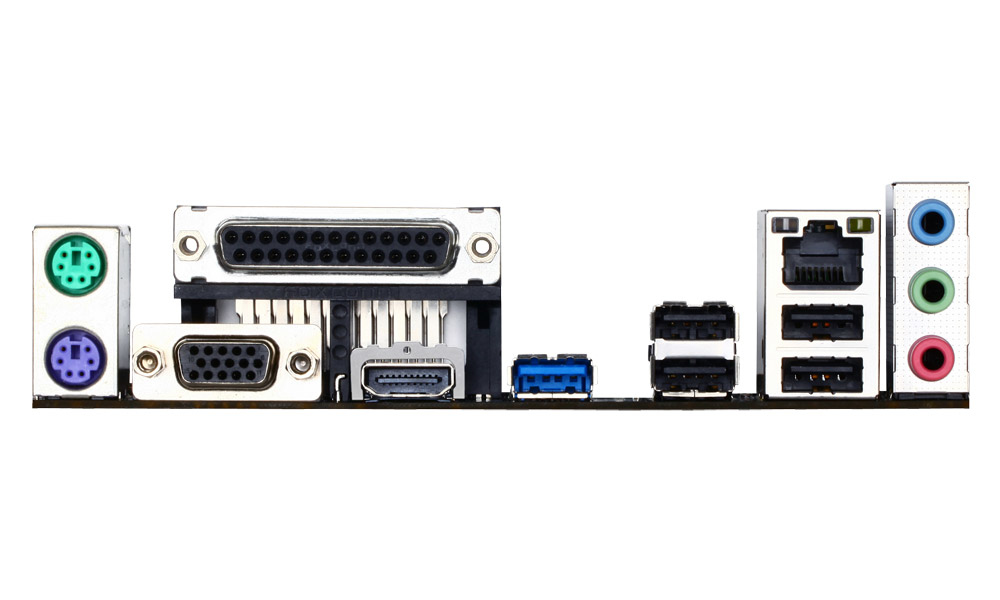

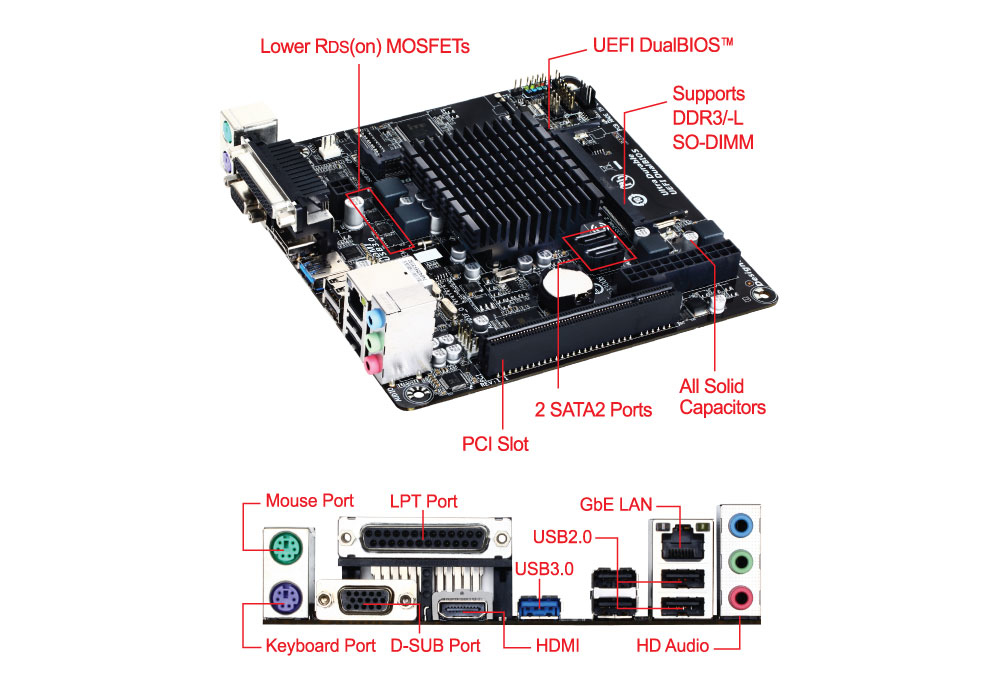

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Power supply, Temperature |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Overclocking features | Xpress Install, @BIOS, APP Center, ON/OFF Charge |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Processor frequency | 2.41 GHz |
