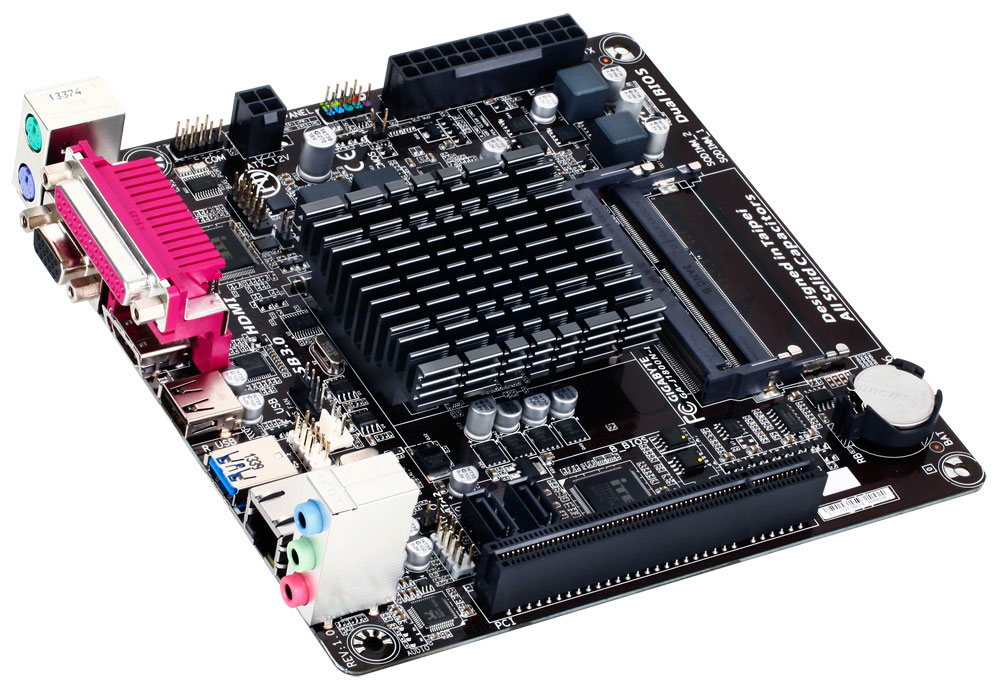

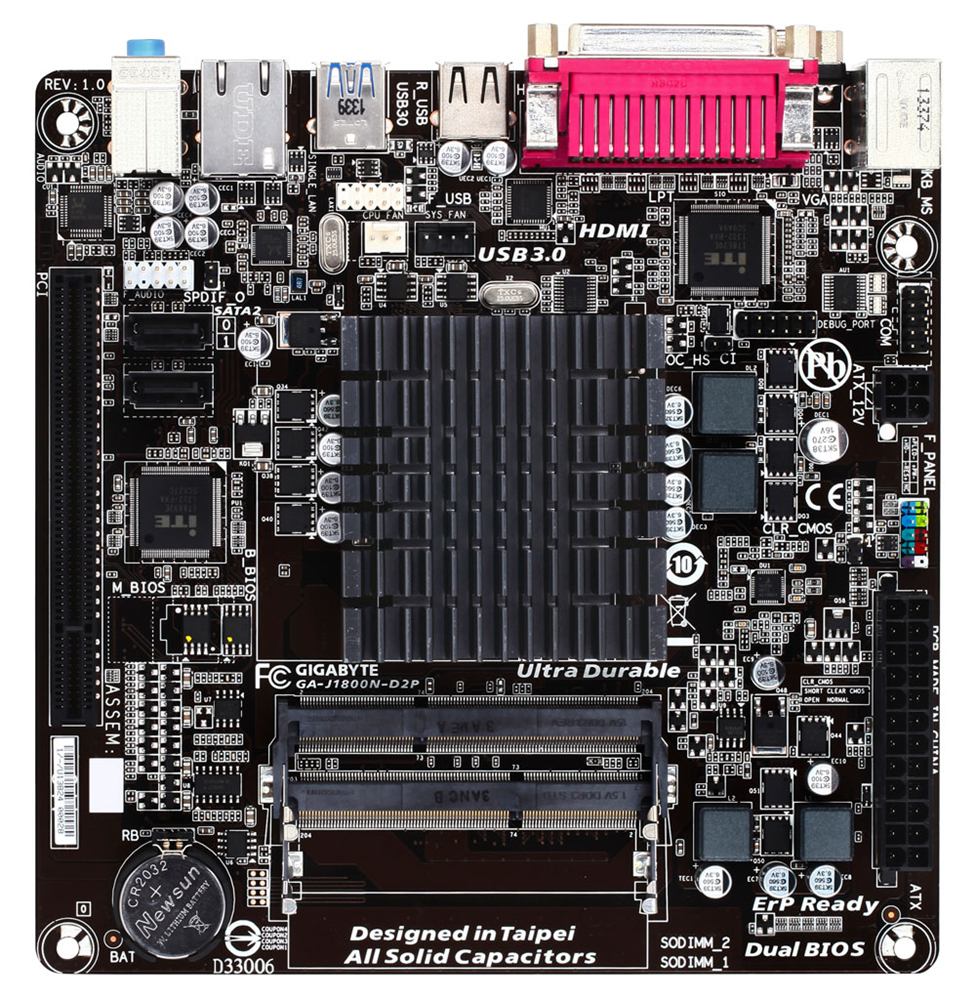

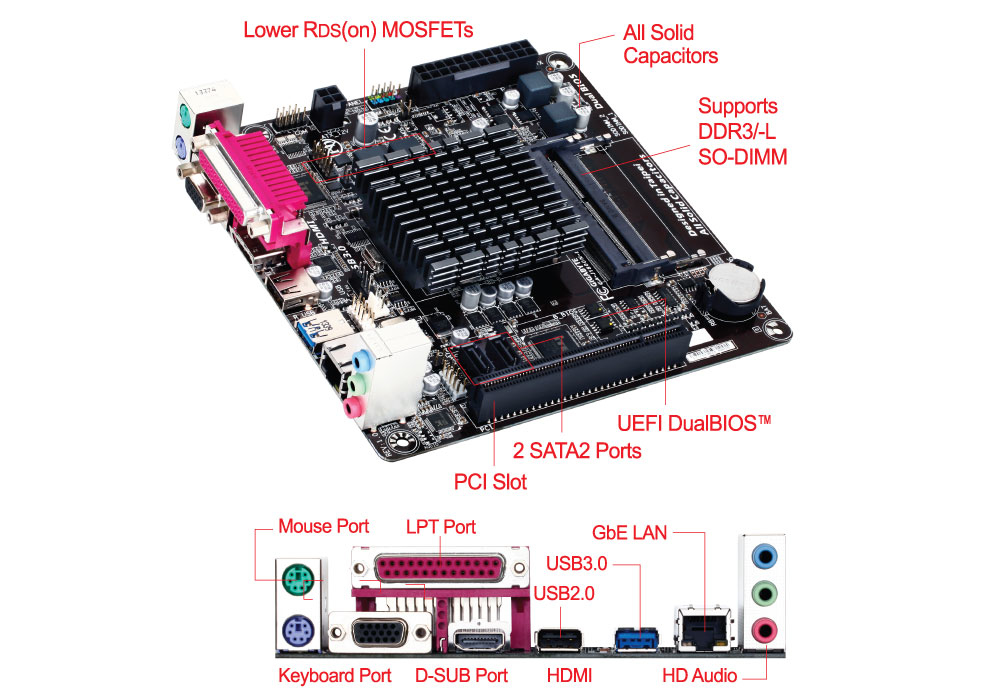

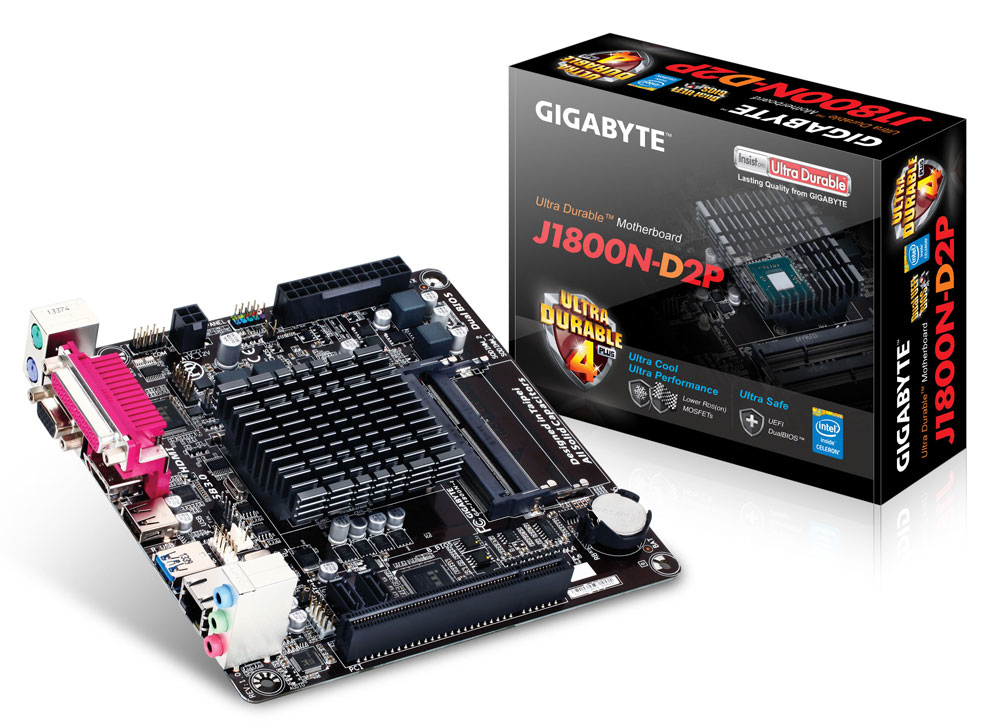

GIGABYTE GA-J1800N-D2P motherboard NA (integrated CPU) mini ITX

GIGABYTE GA-J1800N-D2P motherboard NA (integrated CPU) mini ITX

Model GA-J1800N-D2PEAN 818313019547

55 specifications
  • ProcessorJ1800
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA, SATA II
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
See all specifications

Overview

Processor
J1800
Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA, SATA II
Parallel processing technology support
Not supported
USB 2.0 connectors
3
Brand
GIGABYTE
Category
Motherboard
Model
GA-J1800N-D2P
Part number
GA-J1800N-D2P
EAN / UPC
818313019547, 4719331806224, 8183130195470
Also known as
GIGABYTE GA-J1800N-D2P motherboard NA (integrated CPU) mini ITX

Specifications

55 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketNA (integrated CPU)
Processor modelJ1800

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeSO-DIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333 MHz
Maximum internal memory8 GB

Storage controllers

Supported storage drive interfacesSATA, SATA II

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors0
Number of SATA II connectors2
Number of SATA connectors2
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes

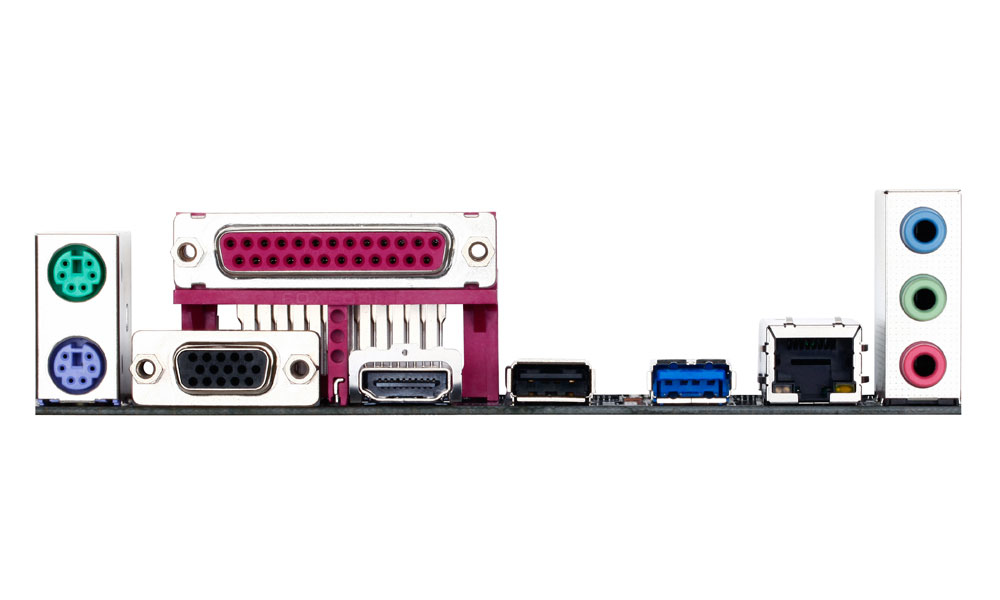

Rear panel I/O ports

USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiNo

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Audio chipRealtek ALC887
Audio output channels7.1 channels
PC health monitoringCPU, Fan
Cooling typePassive
Power source typeATX

Expansion slots

PCI slots1

BIOS

BIOS typeUEFI AMI
ACPI version2.0a

Processor special features

Intel® Anti-Theft Technology (Intel® AT)No
Intel® Virtualization Technology (Intel® VT)VT-x

Weight & dimensions

Width170 mm
Depth170 mm

Other features

mSATA ports quantity0
Intel® vPro™ Platform EligibilityNo
Mac operating systems supportedYes
