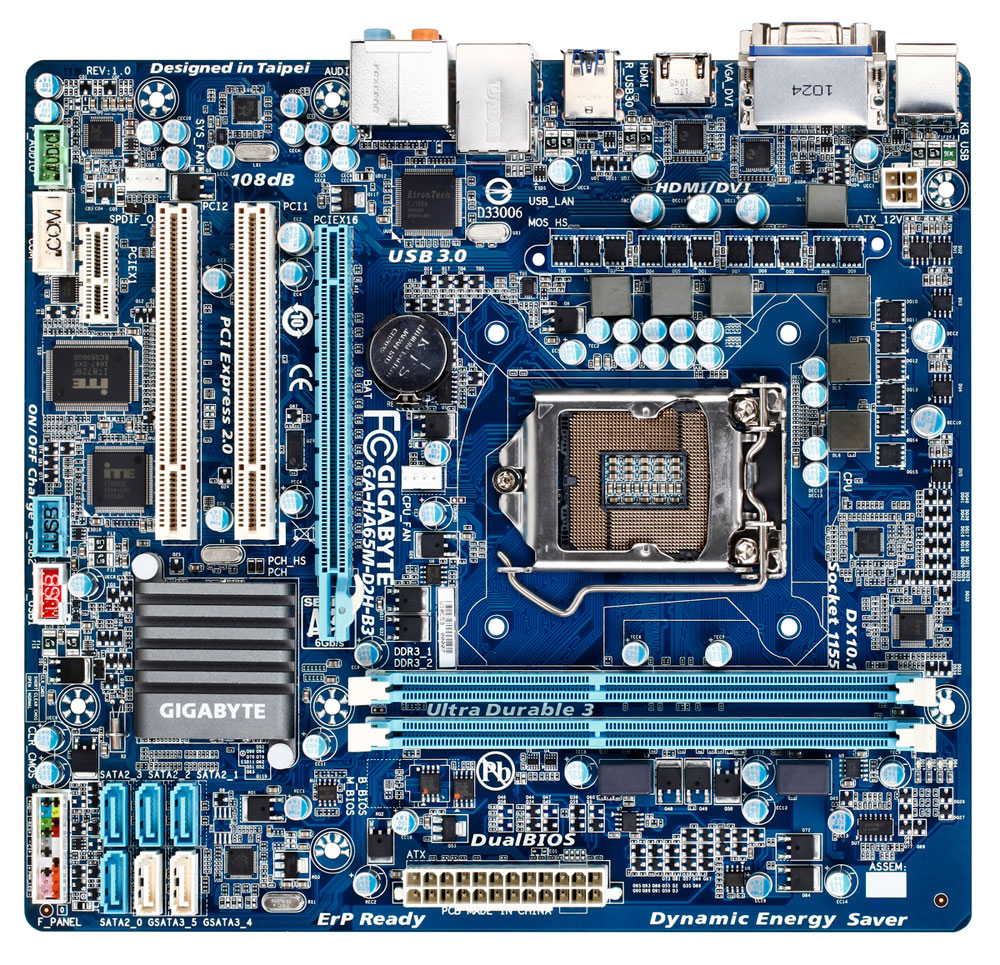

GIGABYTE GA-HA65M-D2H-B3 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX

GIGABYTE GA-HA65M-D2H-B3 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX

Model GA-HA65M-D2H-B3EAN 4719331807108

54 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Parallel processing technology support
Not supported
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
GIGABYTE
Category
Motherboard
Model
GA-HA65M-D2H-B3
Part numbers
GA-HA65M-D2H-B3, GA-HA65M-D2H-B3-R1
EAN / UPC
4719331807108
Also known as
GIGABYTE GA-HA65M-D2H-B3 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX

Specifications

54 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
ECC сompatibilityNon-ECC
Supported memory clock speeds800,1066,1333 MHz
Maximum internal memory16 GB
Supported memory module capacities1GB, 2GB, 4GB, 8GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III

Graphics

Parallel processing technology supportNot supported
On-board graphics cardYes
Graphics card familyIntel

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors2
Number of SATA II connectors4
Number of SATA connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of IEEE1394 connectors0

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs6
Microphone inYes

Network

Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H61
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows 7/Vista/XP

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI slots2

BIOS

BIOS typeAWARD

Weight & dimensions

Width244 mm
Depth222 mm

Other features

S/PDIF in connectorYes
