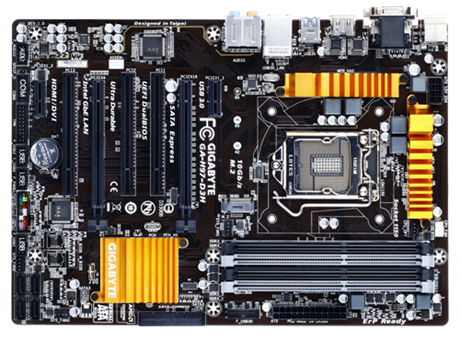

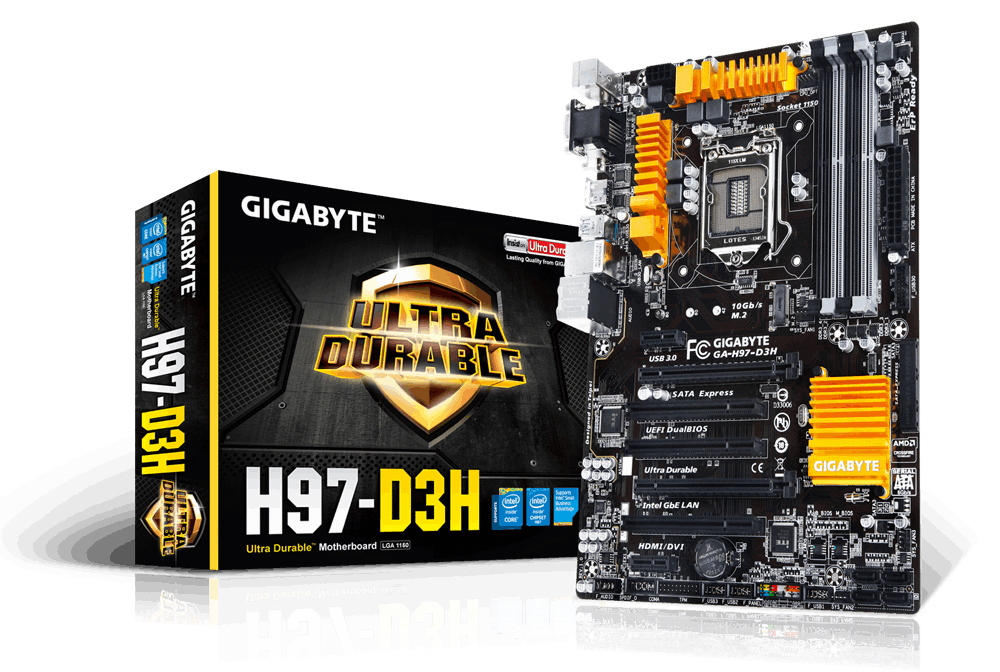

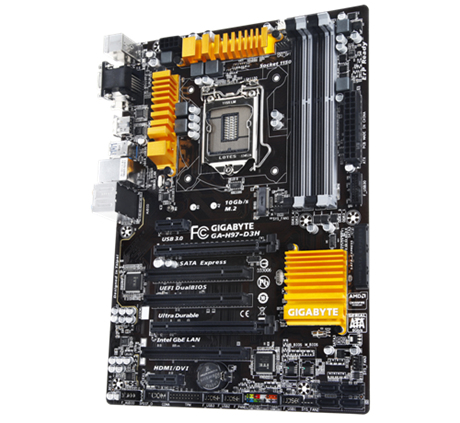

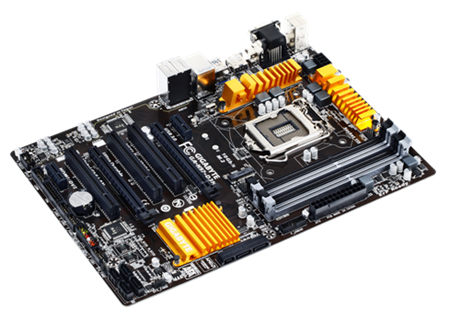

GIGABYTE GA-H97-D3H motherboard Intel® H97 LGA 1150 (Socket H3) ATX
Model GA-H97-D3HPart no. GA-H97-D3H-R1EAN 8183130206114
53 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA
- Maximum graphics card memory1000 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA
- Maximum graphics card memory
- 1000 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-H97-D3H
- Part numbers
- GA-H97-D3H-R1, GA-H97-D3H
- EAN / UPC
- 8183130206114, 818313020611, 4719331816636, 5054230870648 +1 more
- Also known as
- GIGABYTE GA-H97-D3H motherboard Intel® H97 LGA 1150 (Socket H3) ATX
Specifications
53 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1333,1600 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1000 MB |
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 3 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA connectors | 7 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

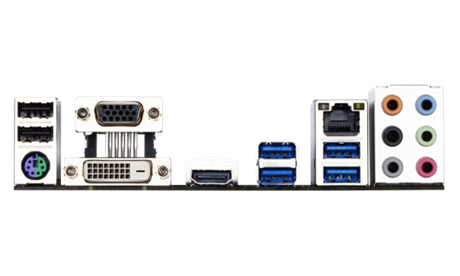

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| DVI-D ports quantity | 1 |
| Headphone outputs | 6 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Bluetooth | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H97 |
| Audio chip | Realtek ALC1150 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 5.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 214 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM version) Intel Rapid Start Technology Intel Smart Connect Technology Intel Smart Response Technology Intel Small Business Advantage cFosSpeed |
What people say
Reviews & ratings
GIGABYTE GA-H97-D3H motherboard Intel® H97 LGA 1150 (Socket H3) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-H97-D3H motherboard Intel® H97 LGA 1150 (Socket H3) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-H97-D3H motherboard Intel® H97 LGA 1150 (Socket H3) ATX

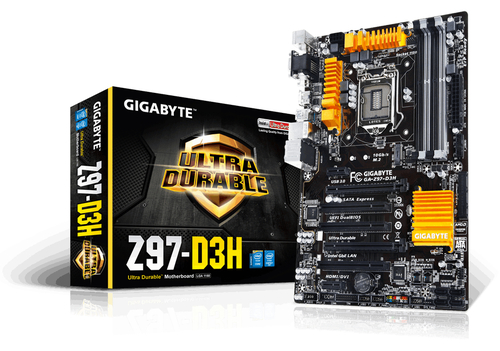

All motherboard comparisons- GIGABYTE GA-H97-D3H motherboard Intel® H97 LGA 1150 (Socket H3) ATX vsGIGABYTE GA-Z97-D3H motherboard Intel® Z97 LGA 1150 (Socket H3) ATXCompare specs

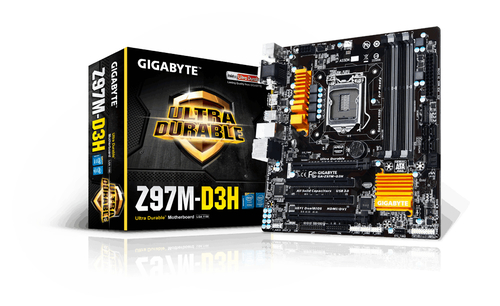

- GIGABYTE GA-H97-D3H motherboard Intel® H97 LGA 1150 (Socket H3) ATX vsGIGABYTE GA-Z97M-D3H motherboard Intel® Z97 LGA 1150 (Socket H3) micro ATXCompare specs

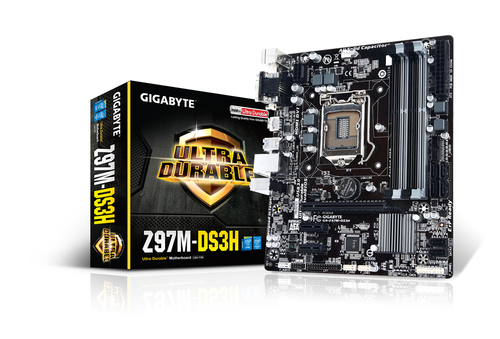

- GIGABYTE GA-H97-D3H motherboard Intel® H97 LGA 1150 (Socket H3) ATX vsGIGABYTE GA-Z97M-DS3H motherboard Intel® Z97 LGA 1150 (Socket H3) micro ATXCompare specs
- GIGABYTE GA-H97-D3H motherboard Intel® H97 LGA 1150 (Socket H3) ATX vsGIGABYTE G1.SNIPER Z97Compare specs

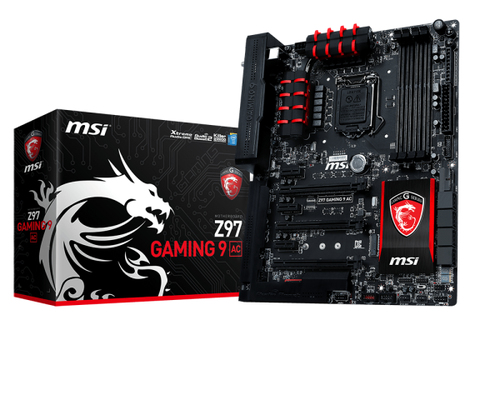

- GIGABYTE GA-H97-D3H motherboard Intel® H97 LGA 1150 (Socket H3) ATX vsMSI Z97 GAMING 9 ACCompare specs
- GIGABYTE GA-H97-D3H motherboard Intel® H97 LGA 1150 (Socket H3) ATX vsMSI H97M-E35 Intel® H97 LGA 1150 (Socket H3) micro ATXCompare specs

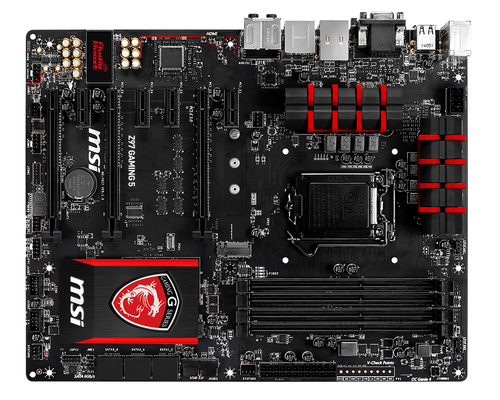

- GIGABYTE GA-H97-D3H motherboard Intel® H97 LGA 1150 (Socket H3) ATX vsMSI Z97 GAMING 5Compare specs

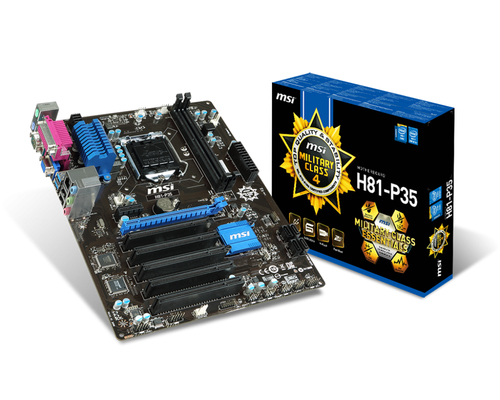

- GIGABYTE GA-H97-D3H motherboard Intel® H97 LGA 1150 (Socket H3) ATX vsMSI H81-P35 motherboard Intel® H81 LGA 1150 (Socket H3) ATXCompare specs
