GIGABYTE GA-H81N-D2H motherboard Intel® H81 mini ITX
Model GA-H81N-D2HEAN 4719331823382
32 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA, SATA II
- USB 2.0 connectors1
- USB 2.0 ports quantity4
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA, SATA II
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Component for
- PC
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-H81N-D2H
- Part number
- GA-H81N-D2H
- EAN / UPC
- 4719331823382, 5054629646199
- Also known as
- GIGABYTE GA-H81N-D2H motherboard Intel® H81 mini ITX
Specifications
32 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory slots type | DIMM |
| Supported memory clock speeds | 1333,1600 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA, SATA II |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 2 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Serial port headers | 1 |

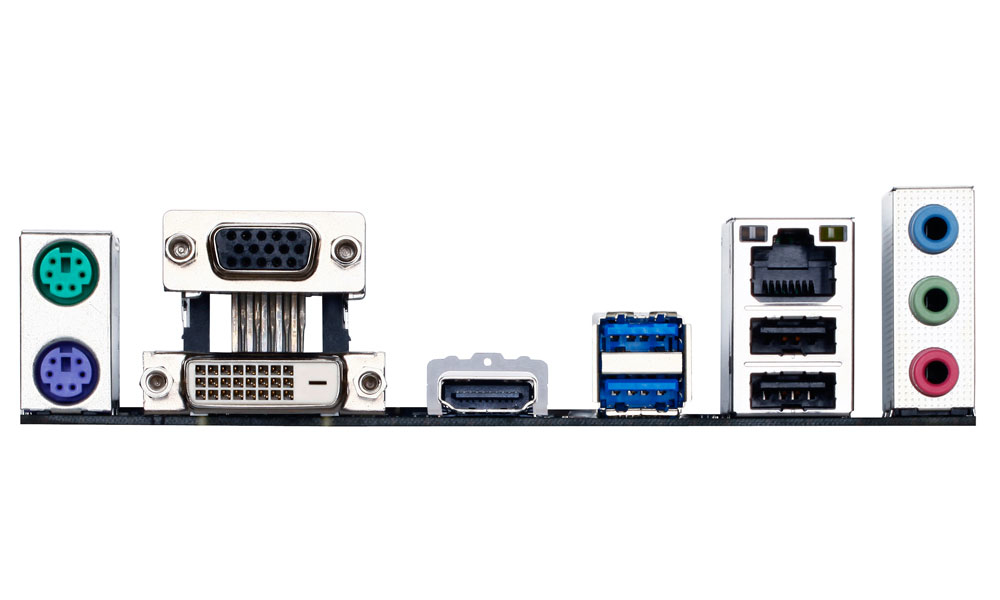

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H81 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
