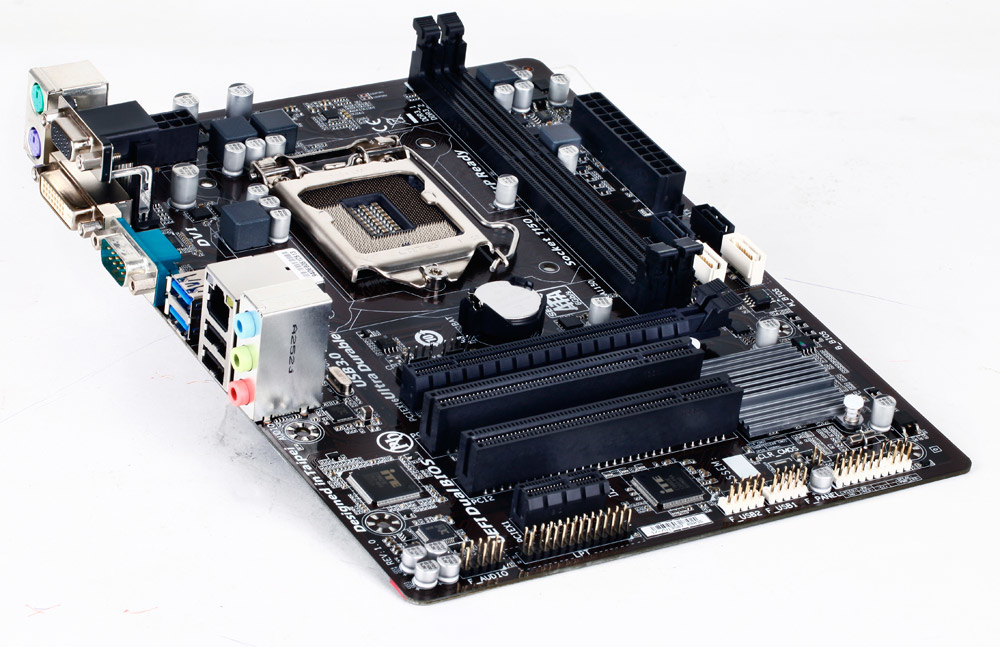

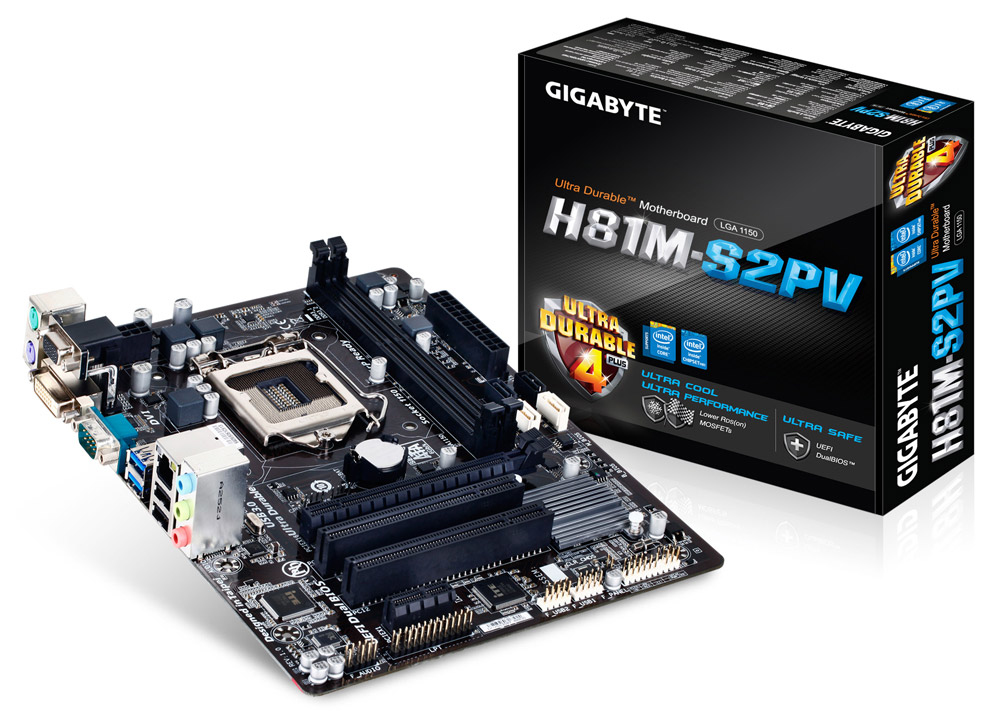

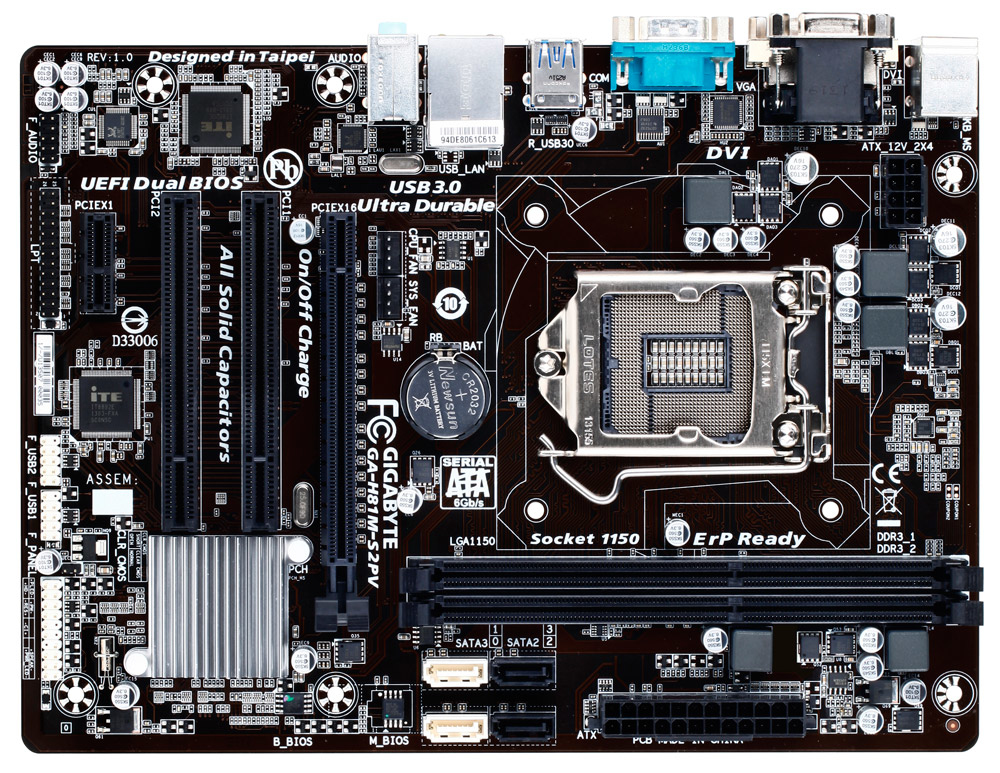

GIGABYTE GA-H81M-S2PV motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX
Model GA-H81M-S2PVEAN 917663644048
58 specifications
- Memory16 GB
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Maximum graphics card memory1024 MB
- USB 2.0 connectors2
Overview
- Memory
- 16 GB
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-H81M-S2PV
- Part number
- GA-H81M-S2PV
- EAN / UPC
- 917663644048, 102930789441, 132017969435, 163121159757 +13 more
- Also known as
- GIGABYTE GA-H81M-S2PV motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX
Specifications
58 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Internal memory | 16 GB |
| Supported memory clock speeds | 1333,1600 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Parallel processing technology support | Not supported |
| Maximum resolution | 1920 x 1200 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 2 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Parallel connector | Yes |

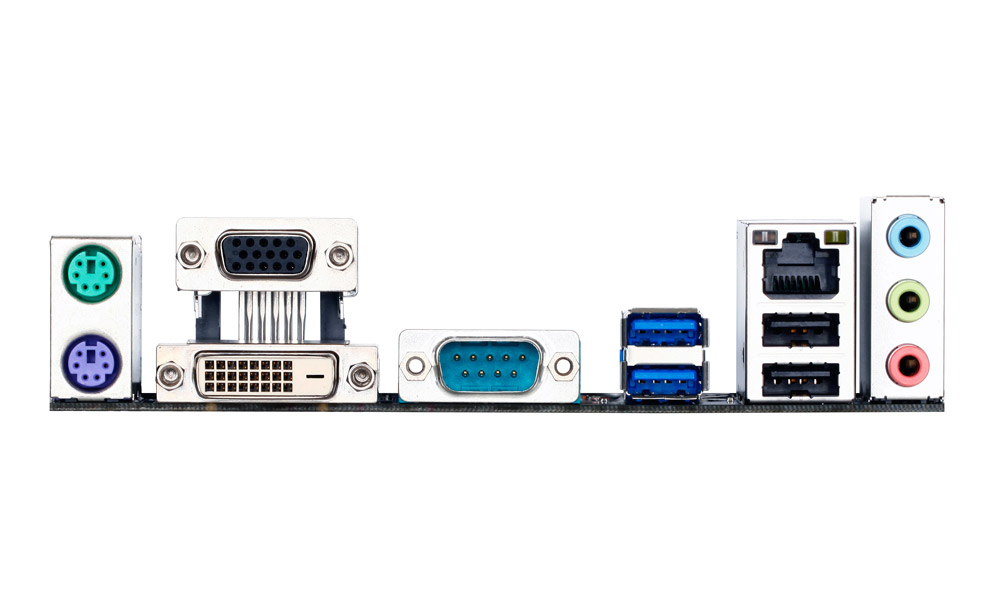

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | No |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H81 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 180 mm |
What people say
Reviews & ratings
GIGABYTE GA-H81M-S2PV motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-H81M-S2PV motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-H81M-S2PV motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX
All motherboard comparisons- GIGABYTE GA-H81M-S2PV motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX vsGIGABYTE GA-H81M-HD3 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs
- GIGABYTE GA-H81M-S2PV motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX vsGIGABYTE GA-6UASL3 motherboard Intel® C202 LGA 1155 (Socket H2) micro ATXCompare specs
- GIGABYTE GA-H81M-S2PV motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX vsGIGABYTE GA-H81M-DS2 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs

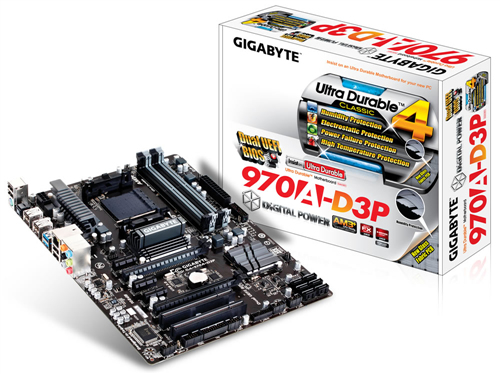

- GIGABYTE GA-H81M-S2PV motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX vsGIGABYTE GA-970A-D3P motherboard AMD 970 Socket AM3+ ATXCompare specs
