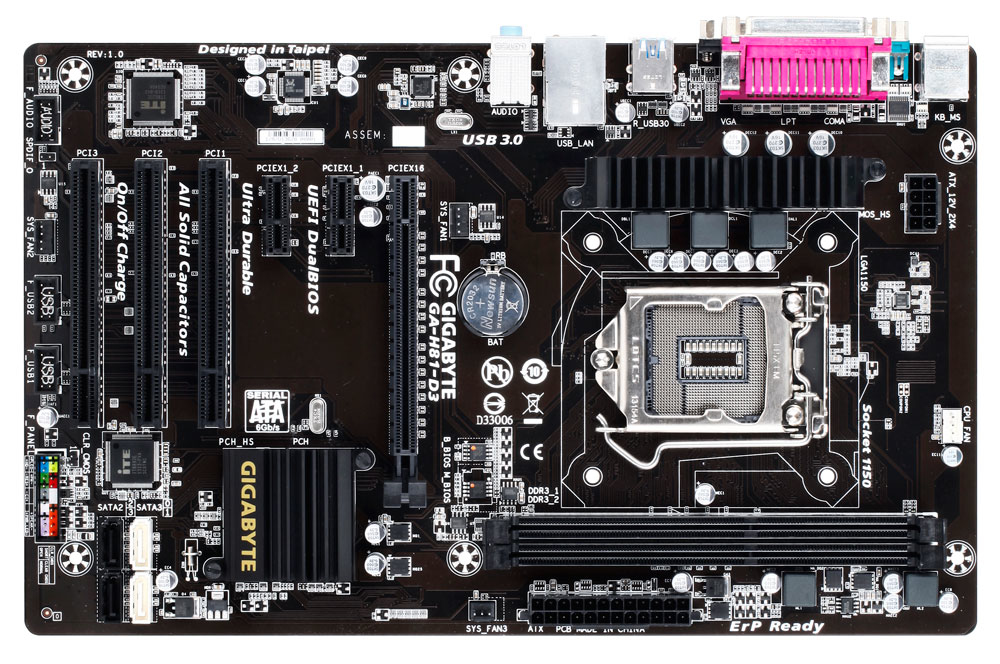

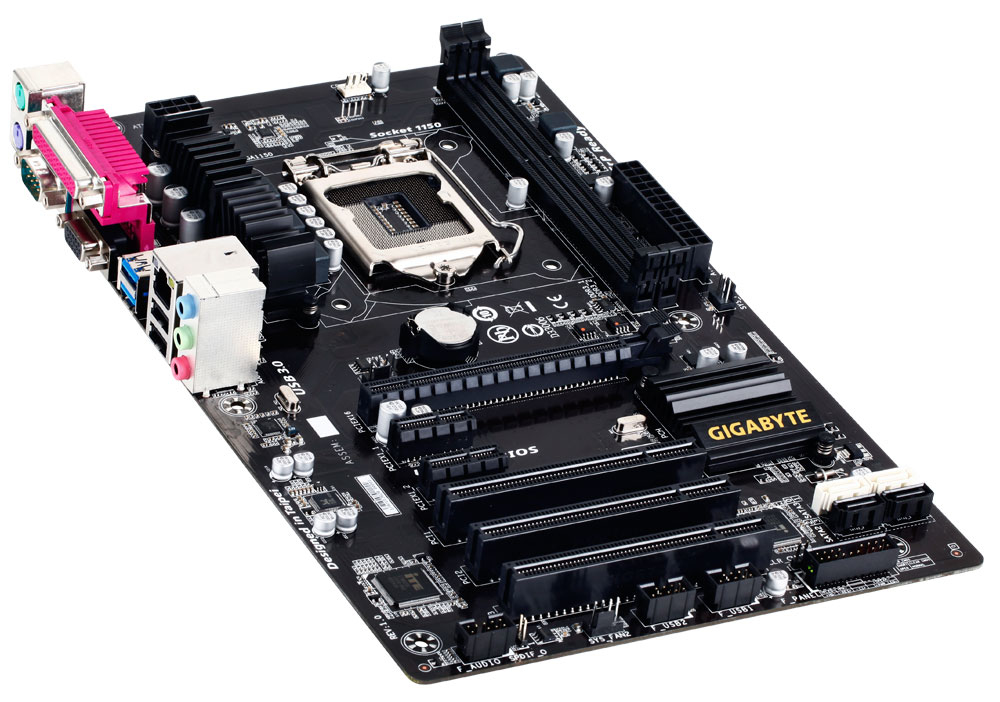

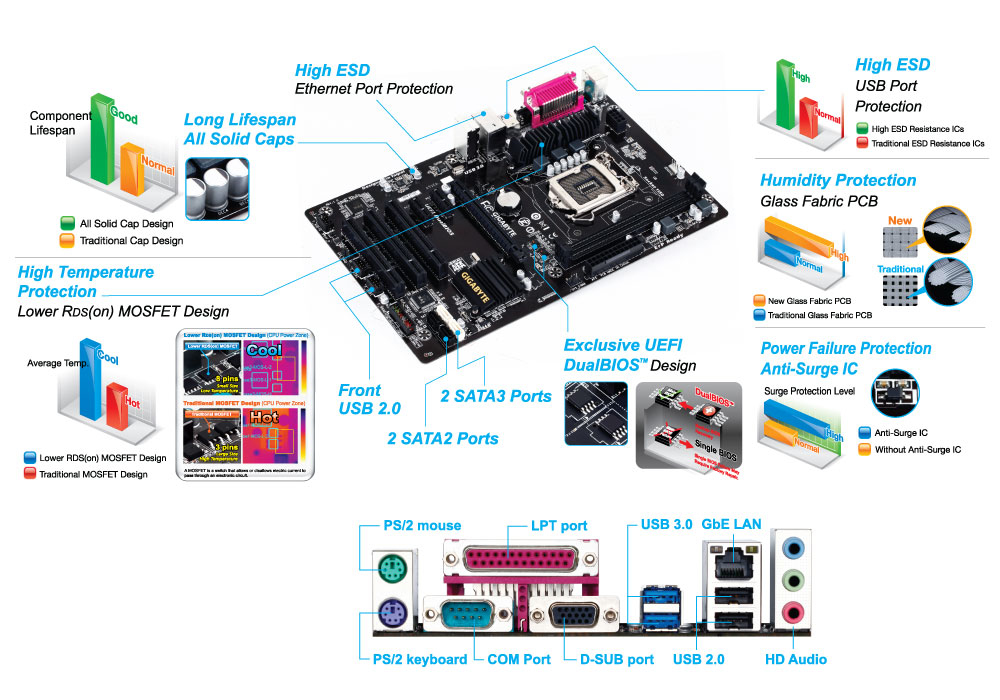

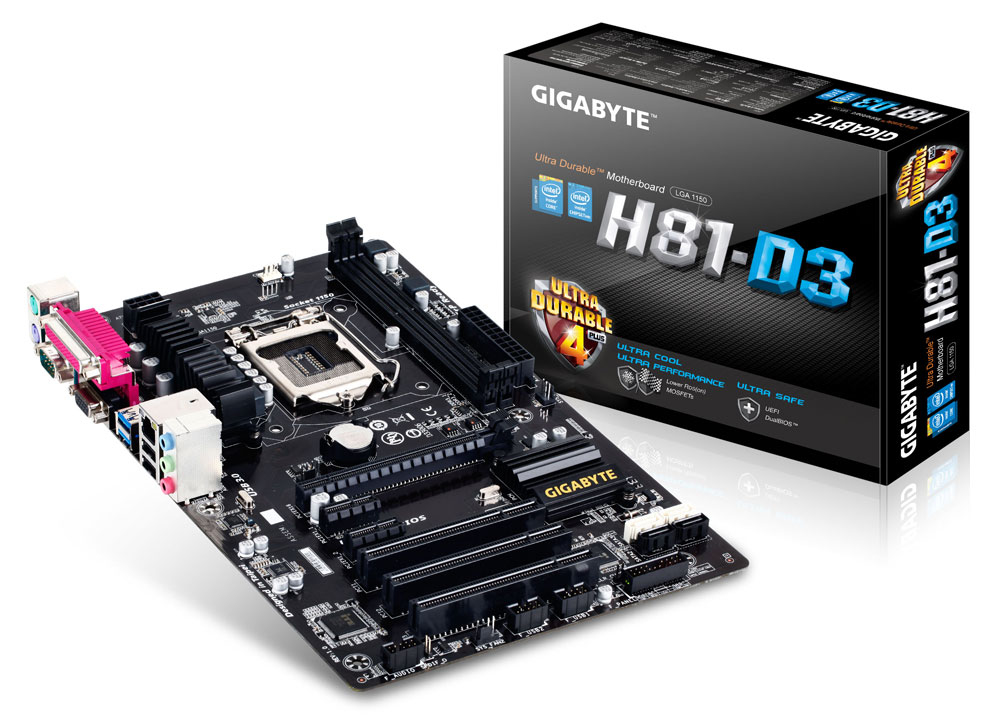

GIGABYTE GA-H81-D3 motherboard Intel® H81 LGA 1150 (Socket H3) ATX
Model GA-H81-D3EAN 818313018052
65 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Maximum graphics card memory1024 MB
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-H81-D3
- Part number
- GA-H81-D3
- EAN / UPC
- 818313018052, 4719331832186, 8183130180520
- Also known as
- GIGABYTE GA-H81-D3 motherboard Intel® H81 LGA 1150 (Socket H3) ATX
Specifications
65 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Intel Core i3/i5/i7/i9 series | i3-4xxx, i5-4xxx, i7-4xxx |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1333,1600 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Graphics card family | Intel |
| Maximum resolution | 1920 x 1200 pixels |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 2 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |

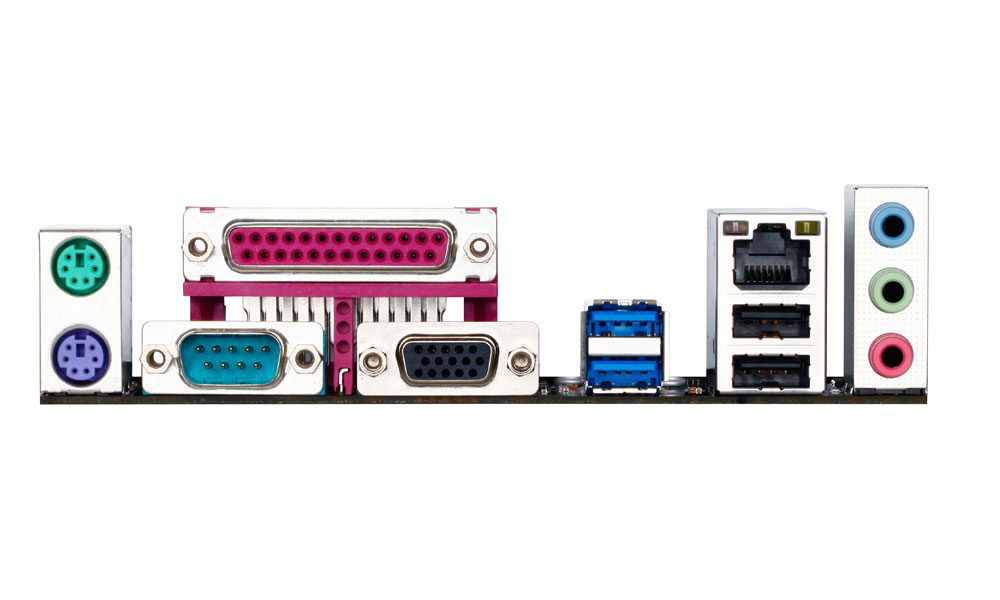

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H81 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Power supply, Temperature |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Processor with Intel Graphics Technology required | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 190 mm |
Other features
| Specification | Value |
|---|---|
| Number of processors supported | 1 |
| PCI Express slots quantity | 3 |
What people say
Reviews & ratings
GIGABYTE GA-H81-D3 motherboard Intel® H81 LGA 1150 (Socket H3) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-H81-D3 motherboard Intel® H81 LGA 1150 (Socket H3) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-H81-D3 motherboard Intel® H81 LGA 1150 (Socket H3) ATX

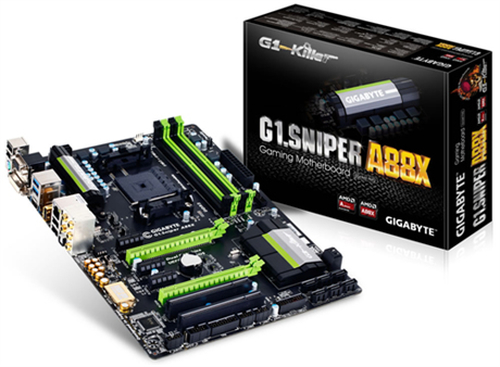

All motherboard comparisons- GIGABYTE GA-H81-D3 motherboard Intel® H81 LGA 1150 (Socket H3) ATX vsGIGABYTE G1.Sniper A88XCompare specs

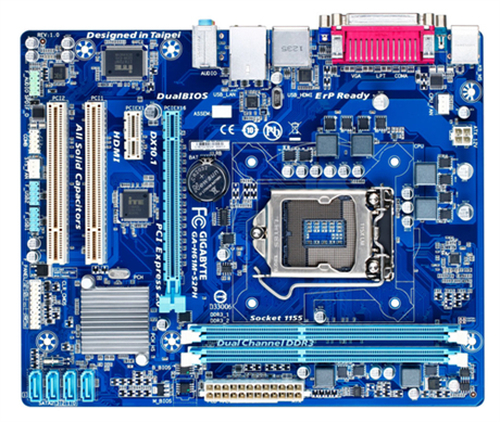

- GIGABYTE GA-H81-D3 motherboard Intel® H81 LGA 1150 (Socket H3) ATX vsGIGABYTE GA-H61M-S2PH motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs
- GIGABYTE GA-H81-D3 motherboard Intel® H81 LGA 1150 (Socket H3) ATX vsGIGABYTE GA-H81M-S2PH motherboard Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs
- GIGABYTE GA-H81-D3 motherboard Intel® H81 LGA 1150 (Socket H3) ATX vsGIGABYTE GA-H81M-D2V motherboard Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs

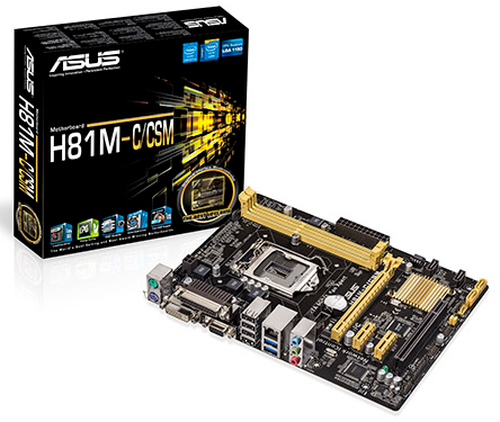

- GIGABYTE GA-H81-D3 motherboard Intel® H81 LGA 1150 (Socket H3) ATX vsASUS H81M-C/CSM motherboard Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs

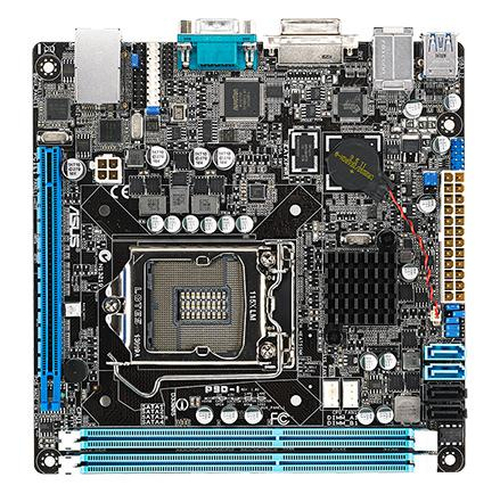

- GIGABYTE GA-H81-D3 motherboard Intel® H81 LGA 1150 (Socket H3) ATX vsASUS P9D-I Intel® C222 LGA 1150 (Socket H3) Mini-ITXCompare specs
