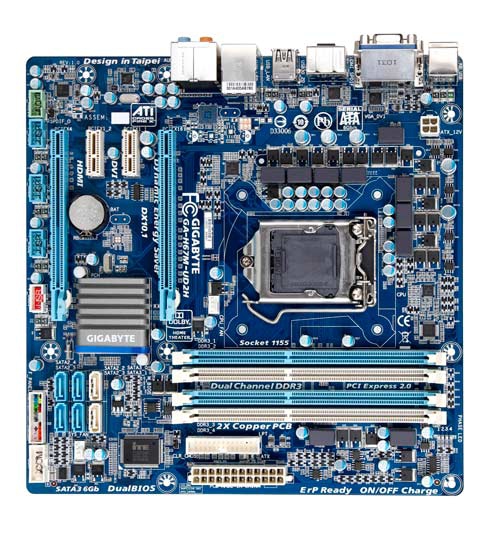

GIGABYTE GA-H67M-UD2H motherboard LGA 1155 (Socket H2) micro ATX
Model GA-H67M-UD2H
45 specifications
- Processor socketLGA 1155 (Socket H2)
- Number of memory slots4
- RAID levels0, 1, 5, 10
- On-board graphics cardYes
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111E
Overview
- Processor socket
- LGA 1155 (Socket H2)
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- On-board graphics card
- Yes
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111E
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-H67M-UD2H
- Part number
- GA-H67M-UD2H
- Also known as
- GIGABYTE GA-H67M-UD2H motherboard LGA 1155 (Socket H2) micro ATX
Specifications
45 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 800,1066,1333 MHz |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |

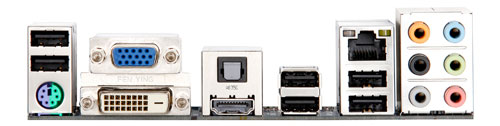

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| ACPI version | 1.0b |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | Norton Internet Security (OEM) |
Other features
| Specification | Value |
|---|---|
| Controller interface type | SATA |
