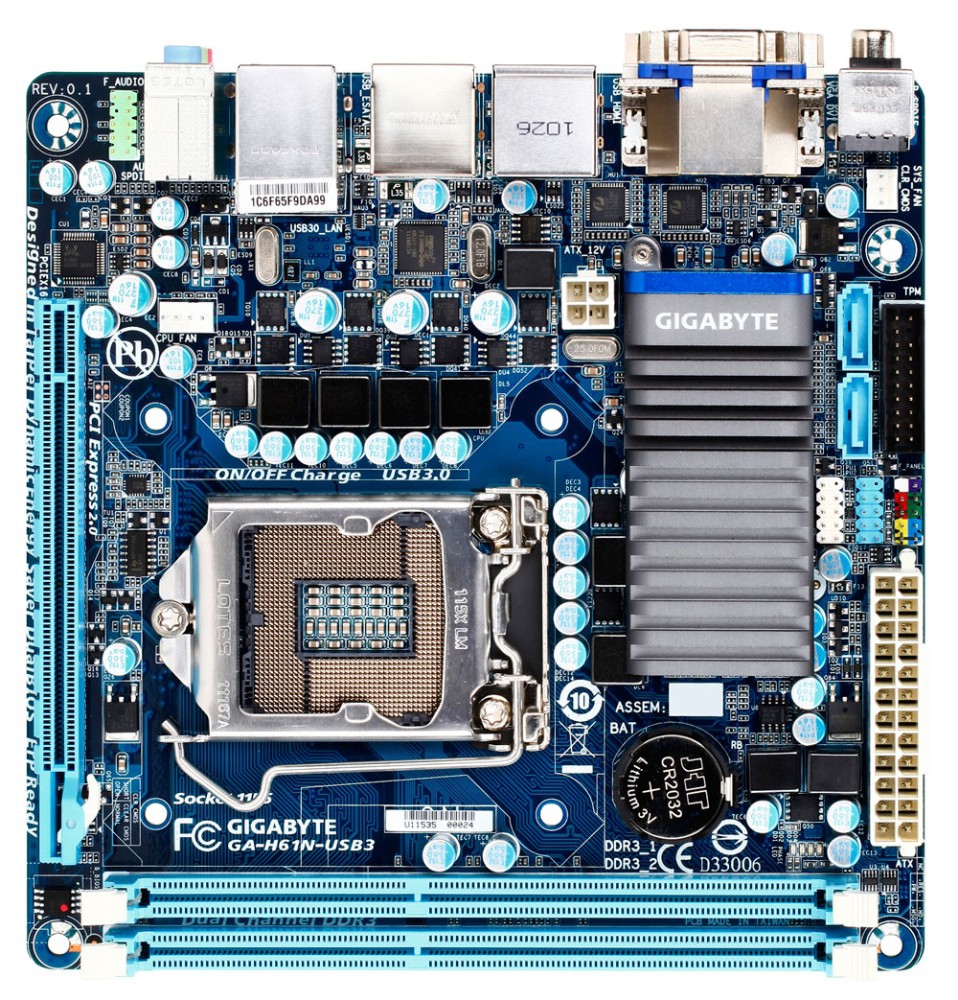

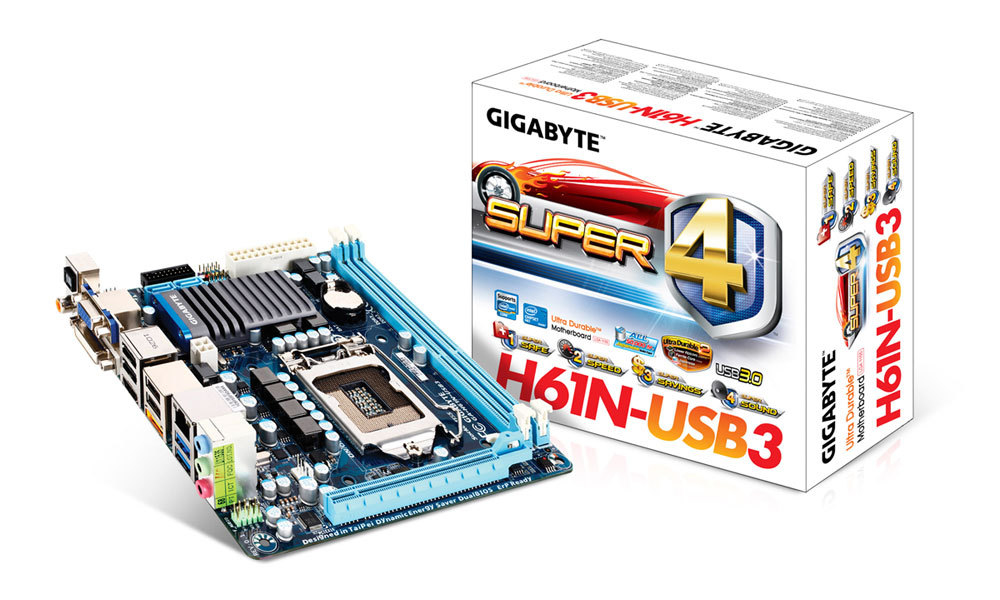

GIGABYTE GA-H61N-USB3 motherboard Intel® H61 LGA 1155 (Socket H2) mini ITX

GIGABYTE GA-H61N-USB3 motherboard Intel® H61 LGA 1155 (Socket H2) mini ITX

Model GA-H61N-USB3EAN 8183130136060

48 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Parallel processing technology support
Not supported
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
GIGABYTE
Category
Motherboard
Model
GA-H61N-USB3
Part number
GA-H61N-USB3
EAN / UPC
8183130136060, 151903040331, 745449855919, 803982907110 +3 more
Also known as
GIGABYTE GA-H61N-USB3 motherboard Intel® H61 LGA 1155 (Socket H2) mini ITX

Specifications

48 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory voltage1.5 V
ECC сompatibilityNon-ECC
Supported memory clock speeds800,1066,1333 MHz
Maximum internal memory16 GB
Controller typeiTE IT8728

Storage controllers

Supported storage drive interfacesSATA II

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors2
Number of SATA II connectors2
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Peripheral (Molex) power connectors (4-pin)1
TPM connectorYes

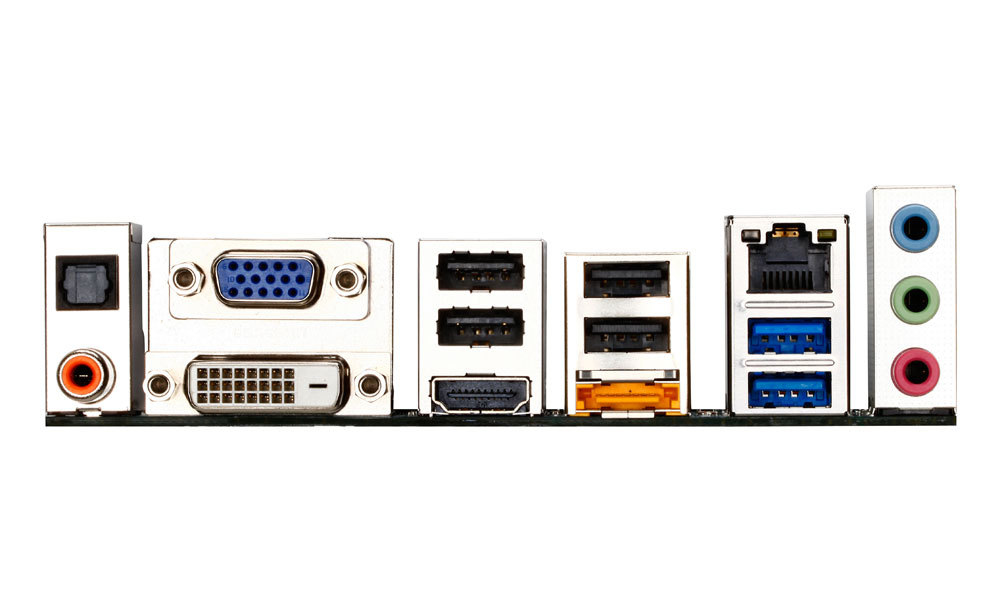

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H61
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsMicrosoft Windows 7/Vista/XP

Expansion slots

PCI Express x16 slots1

BIOS

BIOS typeAWARD
ACPI version1.0b
Clear CMOS buttonYes

Weight & dimensions

Width170 mm
Depth170 mm

Packaging content

Bundled softwareNorton Internet Security
