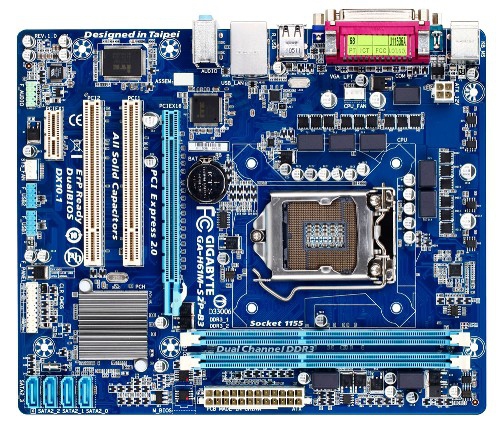

GIGABYTE GA-H61M-S2P-B3 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX

GIGABYTE GA-H61M-S2P-B3 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX

Model GA-H61M-S2P-B3EAN 818313013446

51 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Parallel processing technology support
Not supported
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
GIGABYTE
Category
Motherboard
Model
GA-H61M-S2P-B3
Part number
GA-H61M-S2P-B3
EAN / UPC
818313013446, 4719331825164
Also known as
GIGABYTE GA-H61M-S2P-B3 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX

Specifications

51 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory voltage1.5 V
ECC сompatibilityNon-ECC
Supported memory clock speeds800,1066,1333 MHz
Maximum internal memory16 GB
Controller typeiTE IT8728

Storage controllers

Supported storage drive interfacesSATA II

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors2
Number of SATA II connectors4
Number of SATA connectors4
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Peripheral (Molex) power connectors (4-pin)1

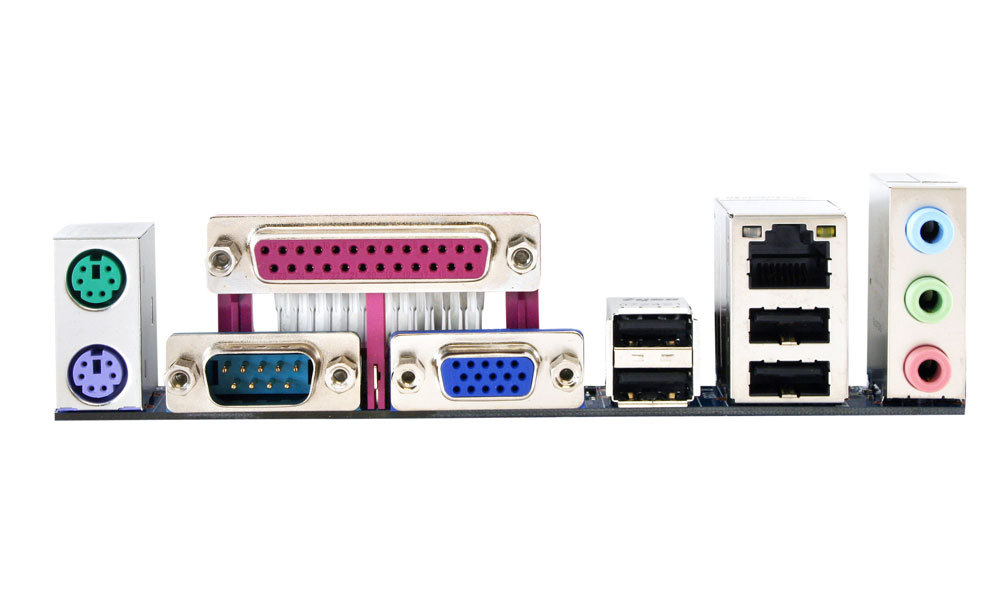

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Parallel ports quantity1
Serial ports quantity1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerAtheros AR8151
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H61
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsMicrosoft Windows 7/Vista/XP

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI slots2

BIOS

BIOS typeAWARD
ACPI version1.0b
Clear CMOS buttonYes

Weight & dimensions

Width244 mm
Depth200 mm

Packaging content

Bundled softwareNorton Internet Security
