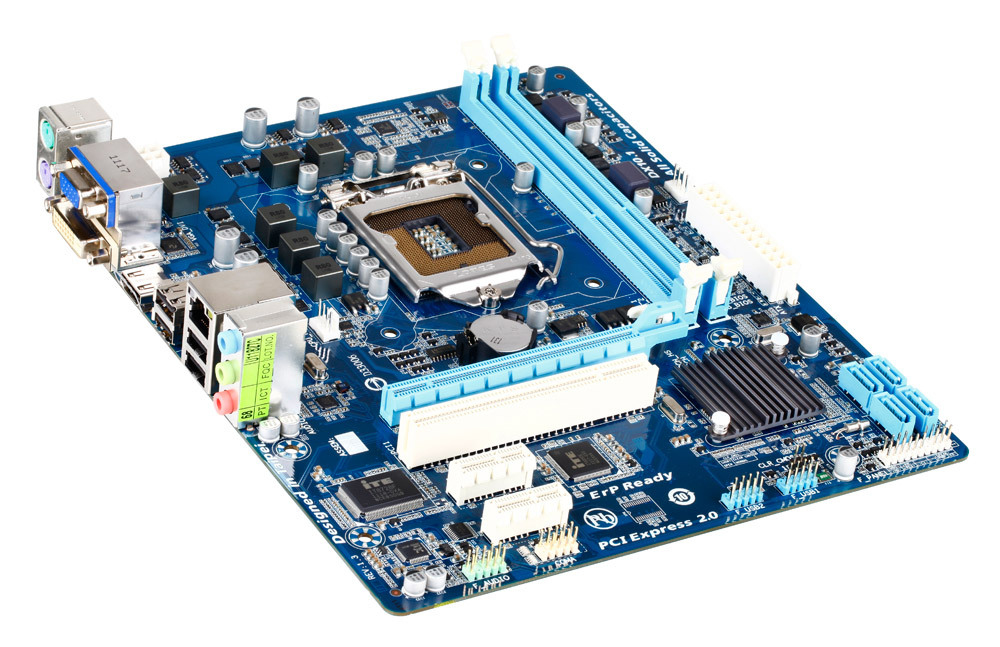

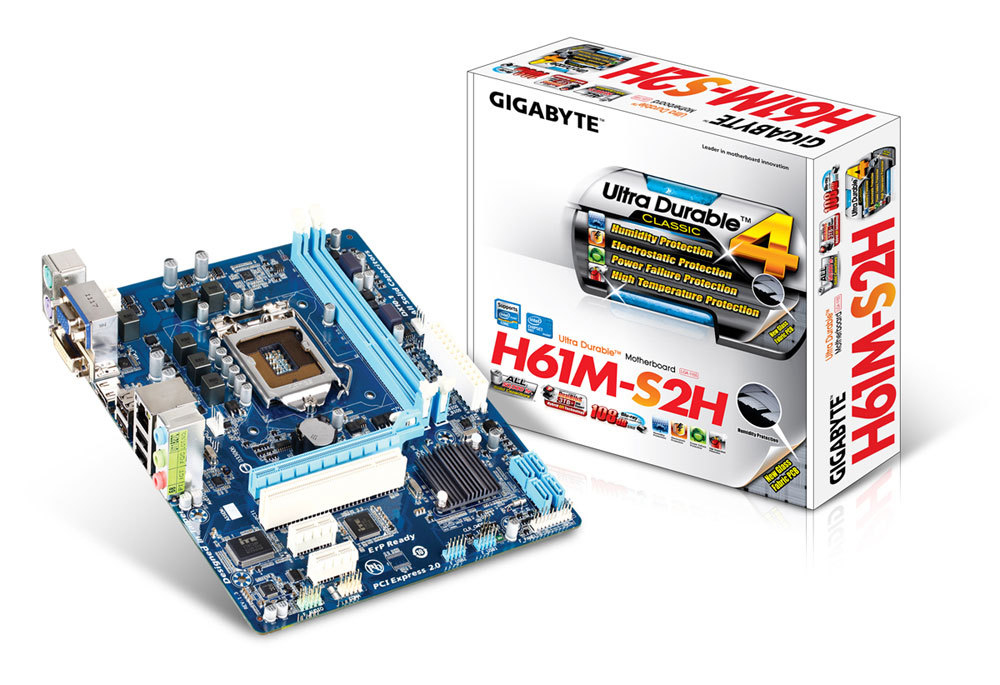

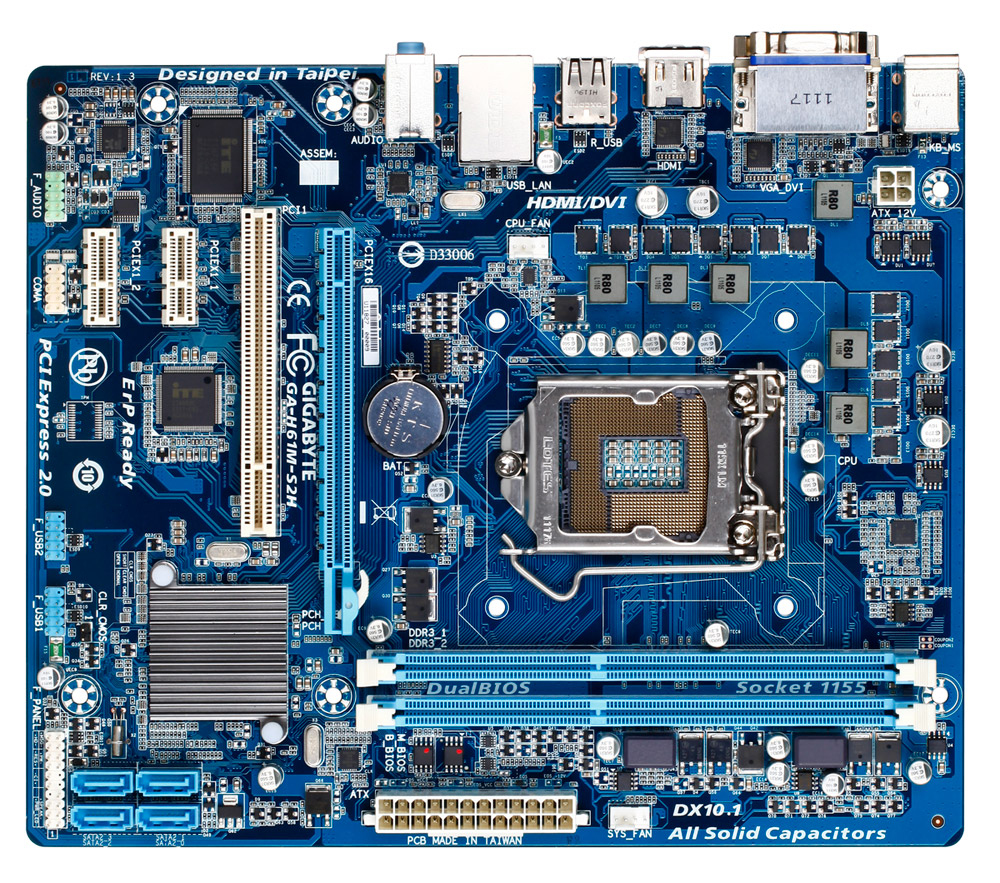

GIGABYTE GA-H61M-S2H motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX
Model GA-H61M-S2HEAN 818313013583
58 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-H61M-S2H
- Part number
- GA-H61M-S2H
- EAN / UPC
- 818313013583
- Also known as
- GIGABYTE GA-H61M-S2H motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX
Specifications
58 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 800,1066,1333 MHz |
| Maximum internal memory | 16 GB |
| Supported memory module capacities | 16GB, 1GB, 2GB, 4GB, 8GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |

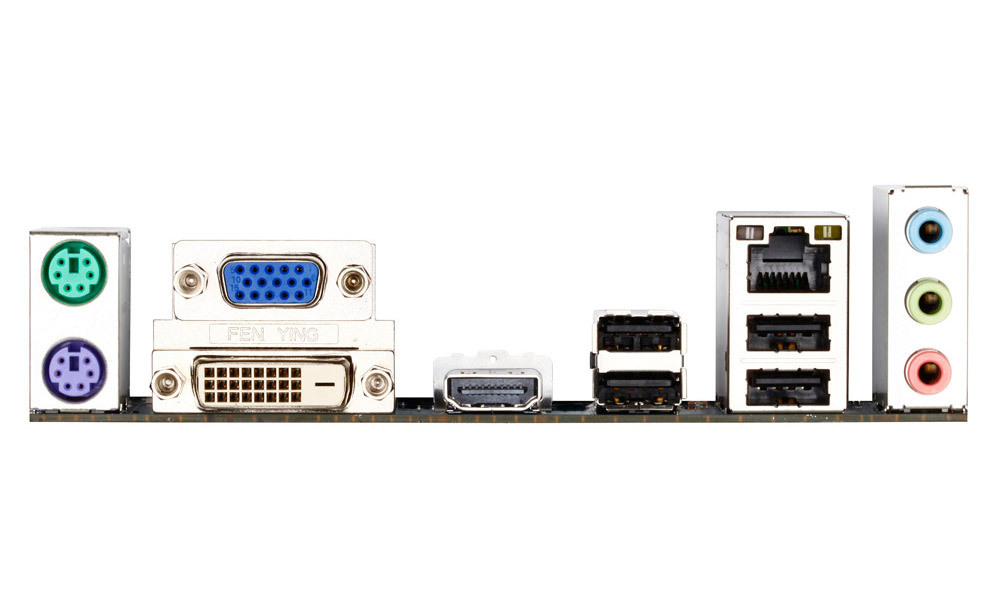

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 2 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Atheros AR8151 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H61 |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 64 Mbit |
| ACPI version | 1.0b |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 205 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Trial software | Norton Internet Security |
What people say
Reviews & ratings
GIGABYTE GA-H61M-S2H motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-H61M-S2H motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-H61M-S2H motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX

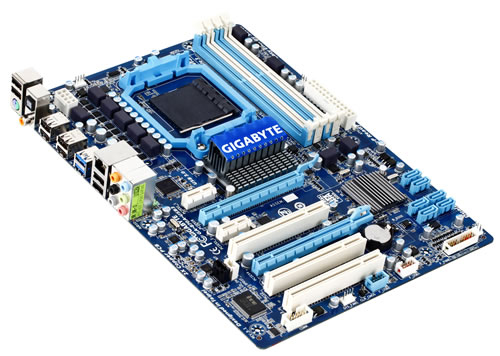

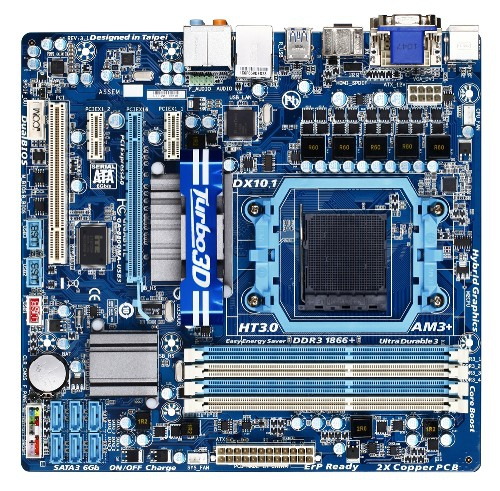

All motherboard comparisons- GIGABYTE GA-H61M-S2H motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-880GMA-USB3 REV 3.1Compare specs
- GIGABYTE GA-H61M-S2H motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-870A-USB3 (rev. 3.1)Compare specs

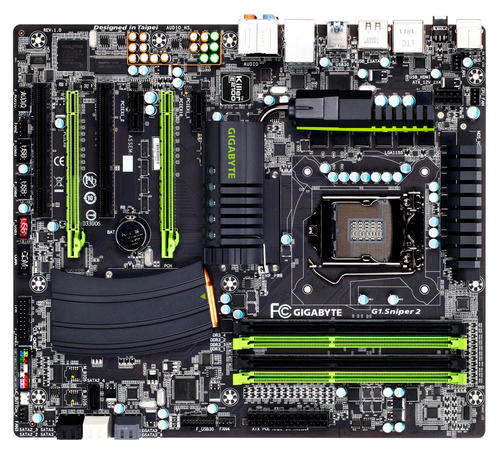

- GIGABYTE GA-H61M-S2H motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX vsGIGABYTE G1.Sniper2 Intel Z68 LGA 1155 (Socket H2) ATXCompare specs

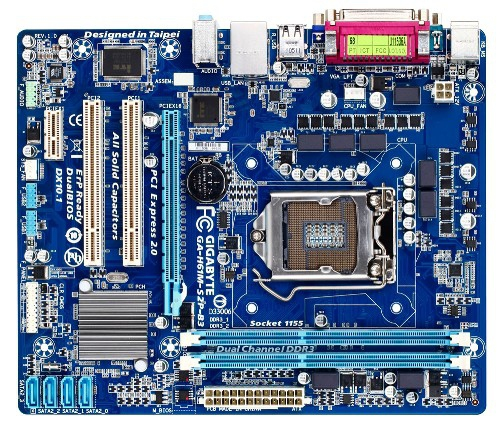

- GIGABYTE GA-H61M-S2H motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-H61M-S2P-B3 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs
- GIGABYTE GA-H61M-S2H motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX vsMSI Z68A-GD80 motherboard Intel Z68 LGA 1155 (Socket H2) ATXCompare specs
- GIGABYTE GA-H61M-S2H motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX vsHP System boardCompare specs

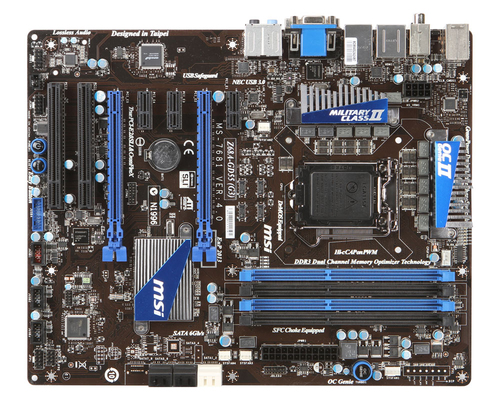

- GIGABYTE GA-H61M-S2H motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX vsMSI Z68A-GD55 (G3)Compare specs

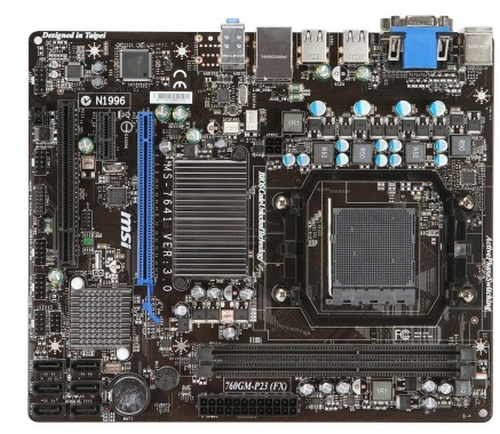

- GIGABYTE GA-H61M-S2H motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX vsMSI 760GM-P23 (FX)Compare specs
