GIGABYTE GA-H61M-S2-B3 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX
Model GA-H61M-S2-B3EAN 4719331822217
53 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Parallel processing technology supportNot supported
- USB 2.0 ports quantity4
- Ethernet interface typeGigabit Ethernet
- Component forPC
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Parallel processing technology support
- Not supported
- USB 2.0 ports quantity
- 4
- Ethernet interface type
- Gigabit Ethernet
- Component for
- PC
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-H61M-S2-B3
- Part numbers
- GA-H61M-S2-B3, GA-H61M-S2-B3-R1
- EAN / UPC
- 4719331822217
- Also known as
- GIGABYTE GA-H61M-S2-B3 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX
Specifications
53 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 800,1066,1333 MHz |
| Maximum internal memory | 16 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | Intel |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Parallel connector | Yes |

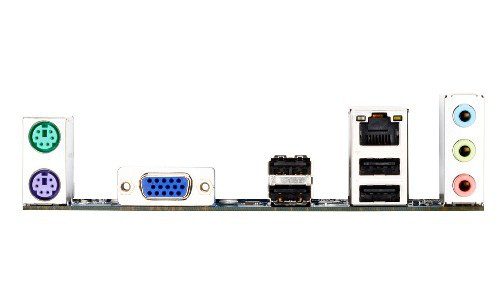

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Atheros AR8151 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel® H61 |
| Audio chip | VIA VT1708 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 64 Mbit |
| ACPI version | 1.0b |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 195 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Controller interface type | SATA 3Gb/s |
