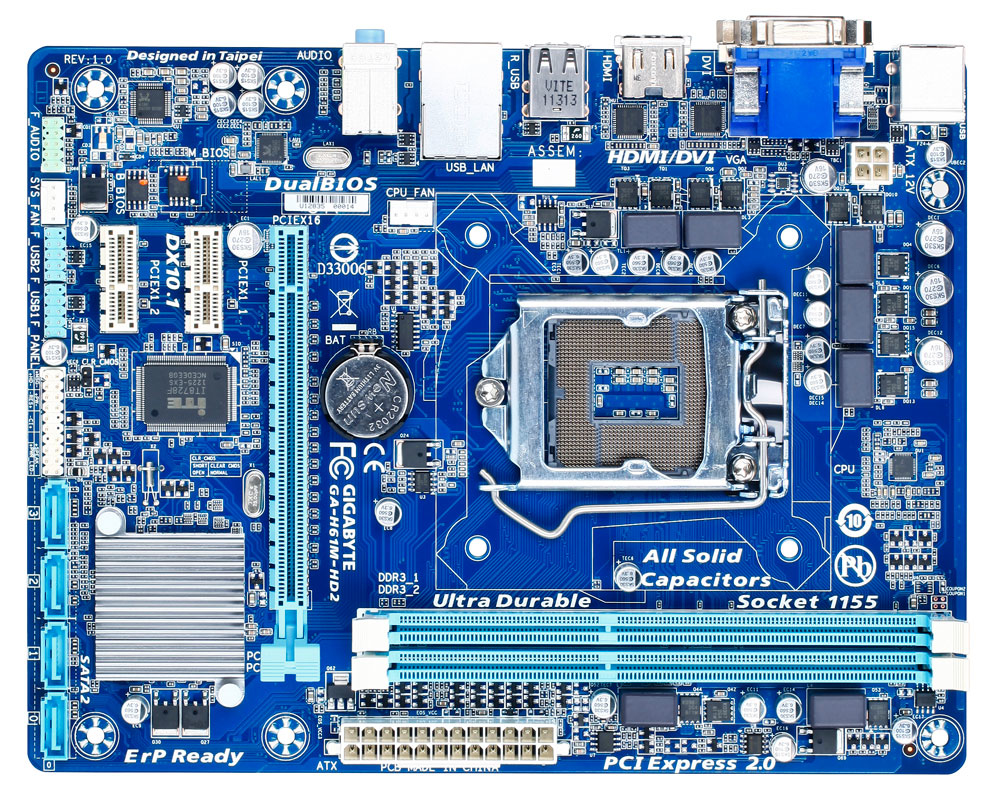

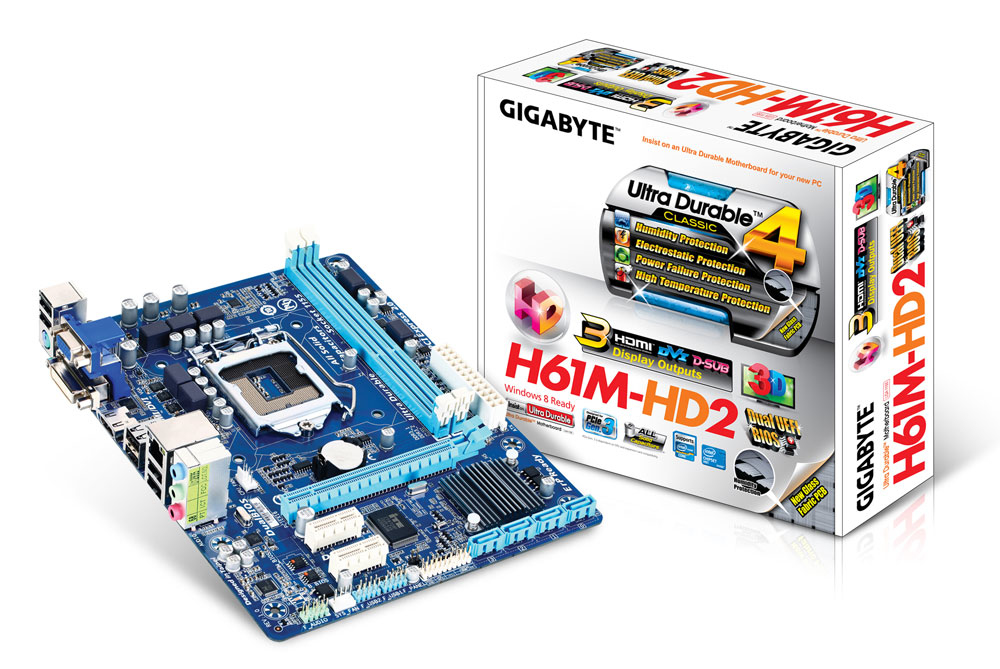

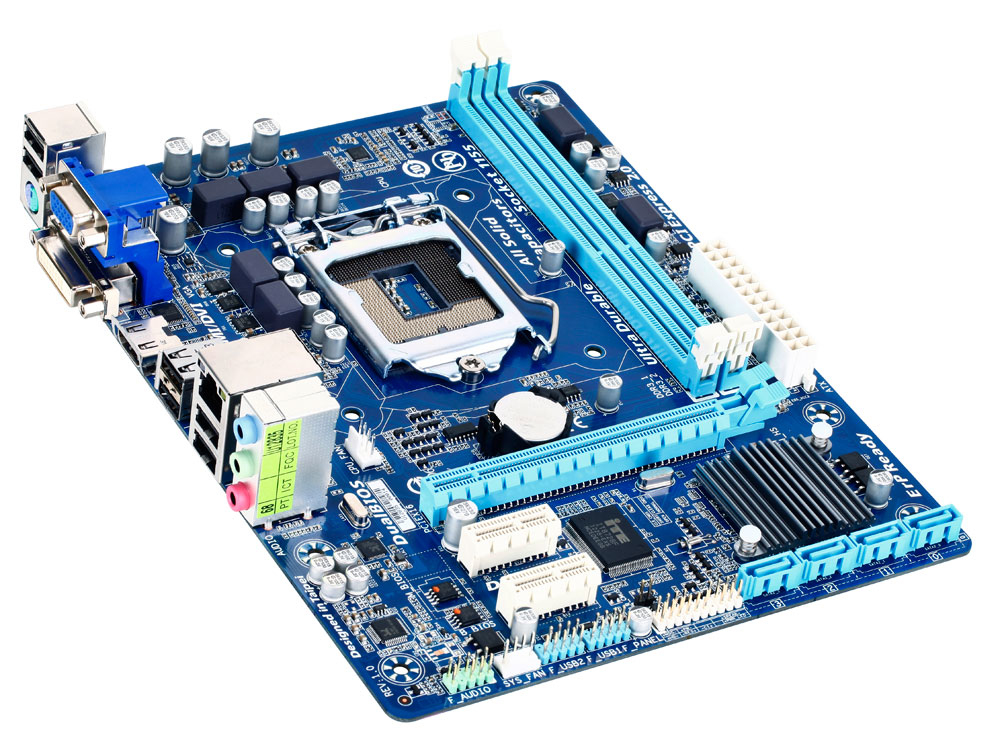

GIGABYTE GA-H61M-HD2 (rev. 1.0)
Model GA-H61M-HD2 (rev. 1.0)Part no. GA-H61M-HD2EAN 818313016300
72 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- USB 2.0 ports quantity6
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 6
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-H61M-HD2 (rev. 1.0)
- Part number
- GA-H61M-HD2
- EAN / UPC
- 818313016300, 4719331840167
- Also known as
- GIGABYTE GA-H61M-HD2 (rev. 1.0) Intel® H61 LGA 1155 (Socket H2) micro ATX
Specifications
72 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 800,1066,1333 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Maximum resolution | 1920 x 1200 pixels |
| HDCP | Yes |
| DirectX version | 11 |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 4 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |

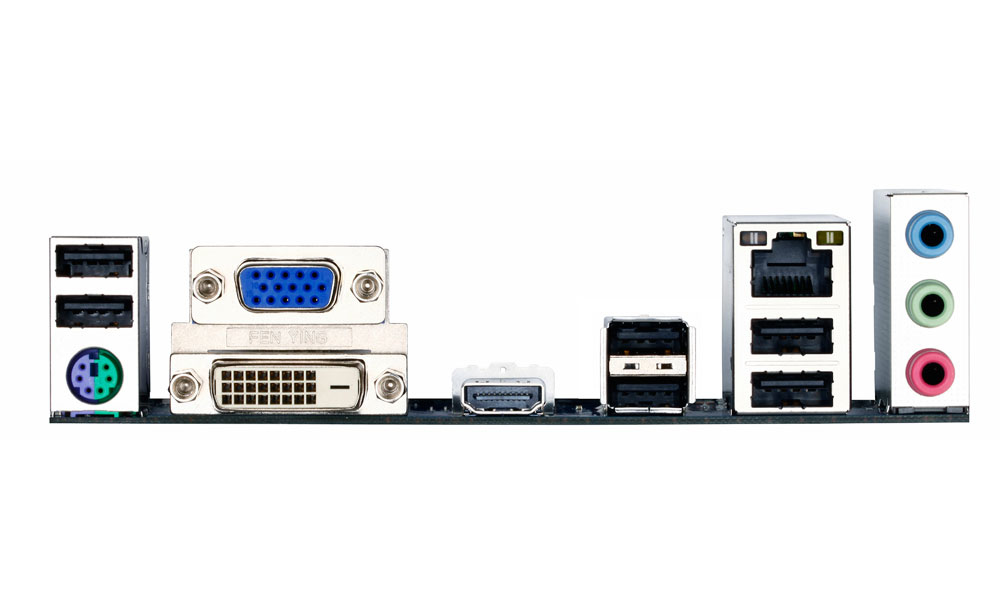

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H61 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 8/7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI Express configurations | 1x16, 2x1 |
| PCI Express slots version | 2.0, 3.0 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 174 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Trial software | Norton Internet Security |
| Bundled software | Intel Rapid Start Technology Intel Smart Connect Technology |
Other features
| Specification | Value |
|---|---|
| Controller interface type | Intel H61 |
| Audio output | 3 |
| PCI Express slots quantity | 3 |
| Quick installation guide | Yes |
What people say
Reviews & ratings
GIGABYTE GA-H61M-HD2 (rev. 1.0)
No reviews yet
Be the first to tell others how GIGABYTE GA-H61M-HD2 (rev. 1.0) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-H61M-HD2 (rev. 1.0)
All motherboard comparisons- GIGABYTE GA-H61M-HD2 (rev. 1.0) vsGIGABYTE GA-B75M-D2V motherboard Intel B75 LGA 1155 (Socket H2) micro ATXCompare specs
- GIGABYTE GA-H61M-HD2 (rev. 1.0) vsGIGABYTE GA-B75M-HD3 (rev. 1.0)Compare specs
- GIGABYTE GA-H61M-HD2 (rev. 1.0) vsGIGABYTE GA-F2A85X-D3H (rev. 1.0)Compare specs

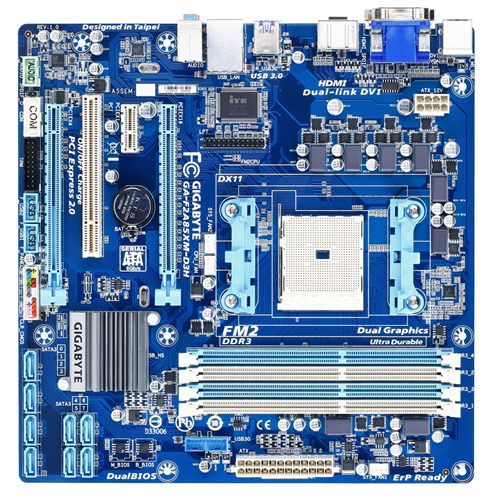

- GIGABYTE GA-H61M-HD2 (rev. 1.0) vsGIGABYTE GA-F2A85XM-D3H (rev. 1.0)Compare specs
- GIGABYTE GA-H61M-HD2 (rev. 1.0) vsASUS C8HM70-I Intel® HM70 Express BGA 1023 mini ITXCompare specs
- GIGABYTE GA-H61M-HD2 (rev. 1.0) vsASUS F2A85-V AMD A85X Socket FM2 ATXCompare specs

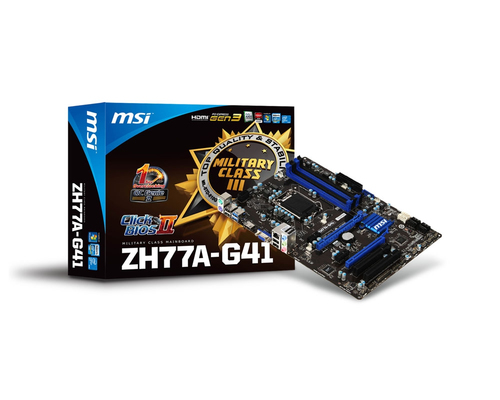

- GIGABYTE GA-H61M-HD2 (rev. 1.0) vsMSI ZH77A-G41 Intel H77 LGA 1155 (Socket H2) ATXCompare specs
