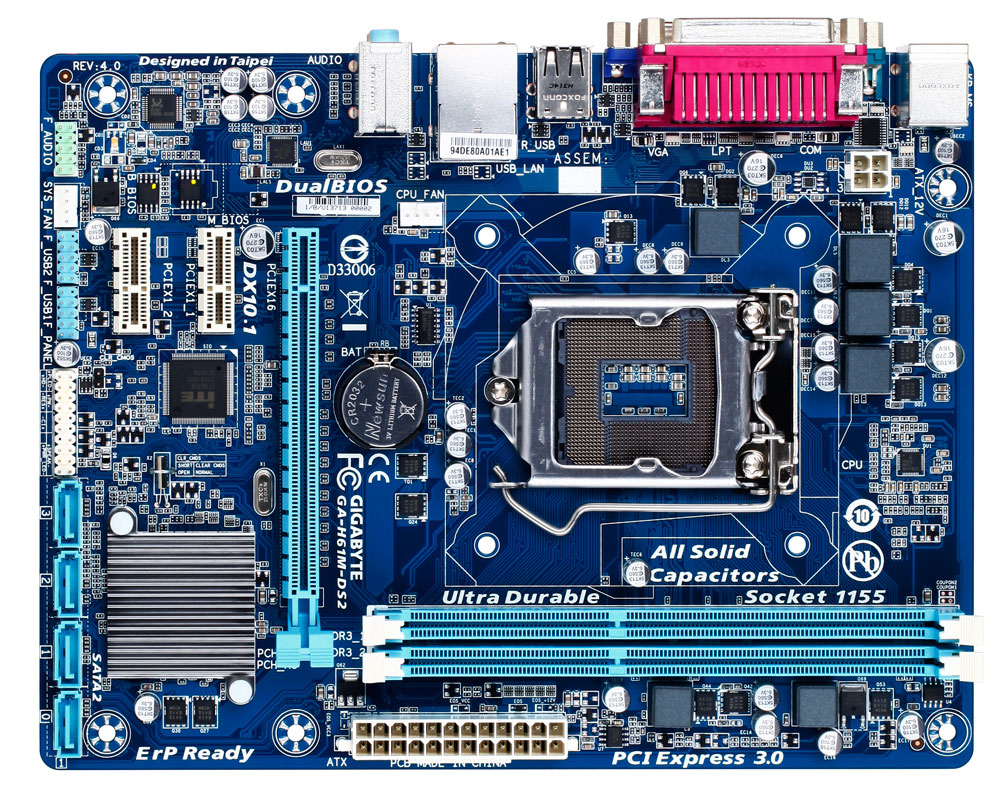

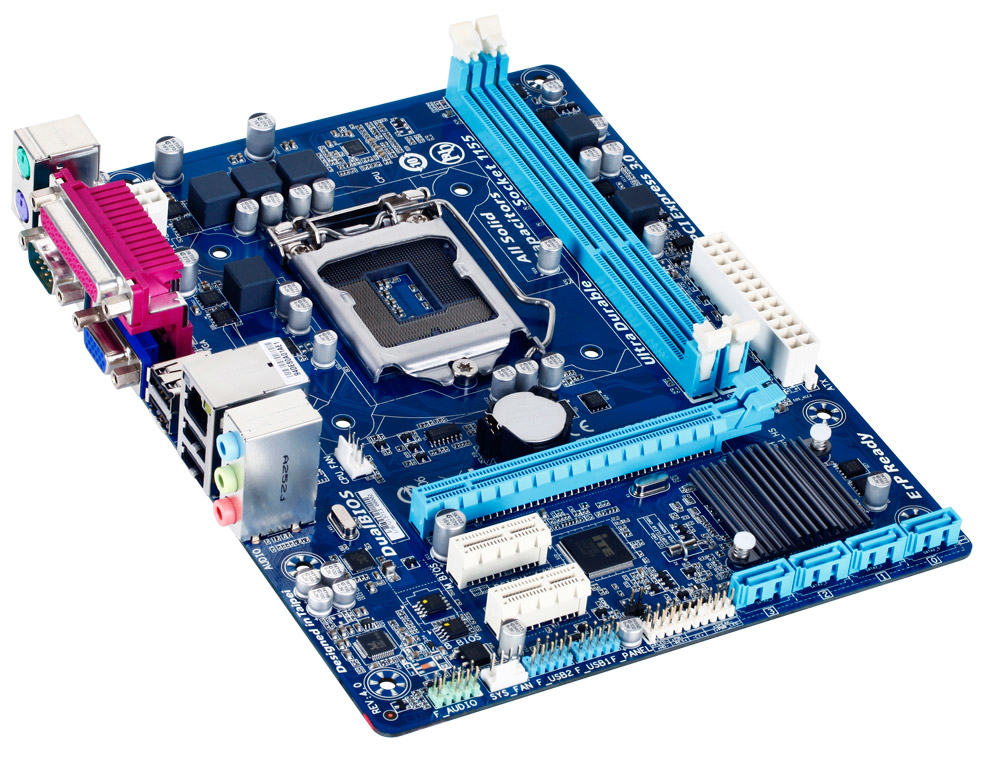

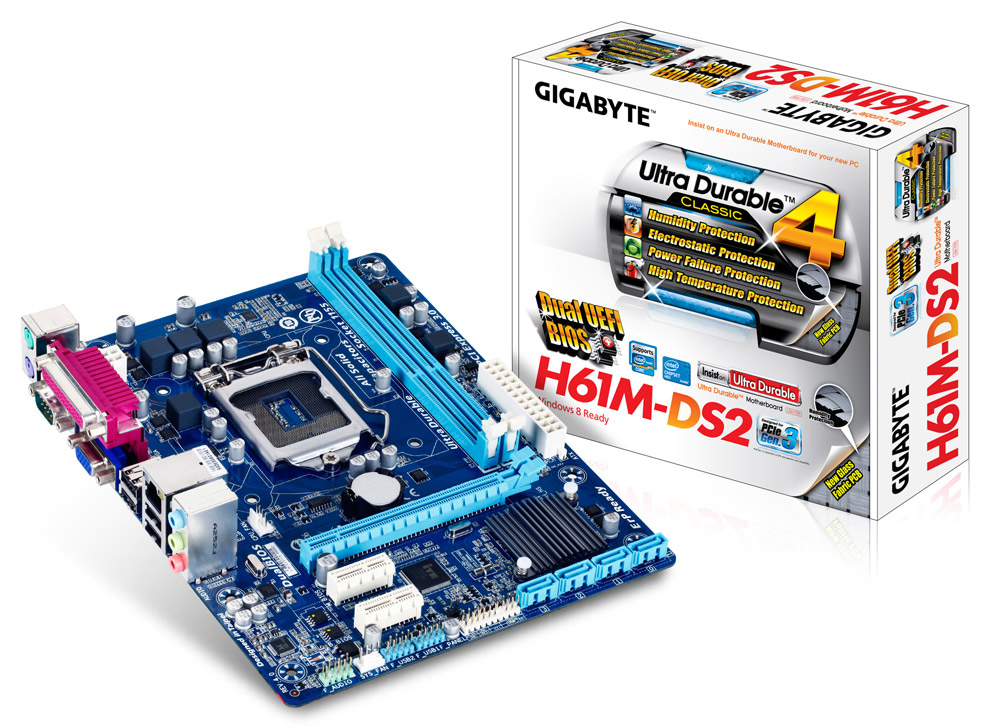

GIGABYTE GA-H61M-DS2-LA 4.0

GIGABYTE GA-H61M-DS2-LA 4.0

Model GA-H61M-DS2-LA 4.0

46 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors4
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA
Parallel processing technology support
Not supported
USB 2.0 connectors
4
USB 2.0 ports quantity
2
Brand
GIGABYTE
Category
Motherboard
Model
GA-H61M-DS2-LA 4.0
Part number
GA-H61M-DS2-LA 4.0
Also known as
GIGABYTE GA-H61M-DS2-LA 4.0 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX

Specifications

46 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,2200,800,1066 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA

Graphics

Parallel processing technology supportNot supported
Graphics card familyIntel

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA connectors4
Number of Parallel ATA connectors0
ATX Power connector (24-pin)Yes
CPU fan connectorYes

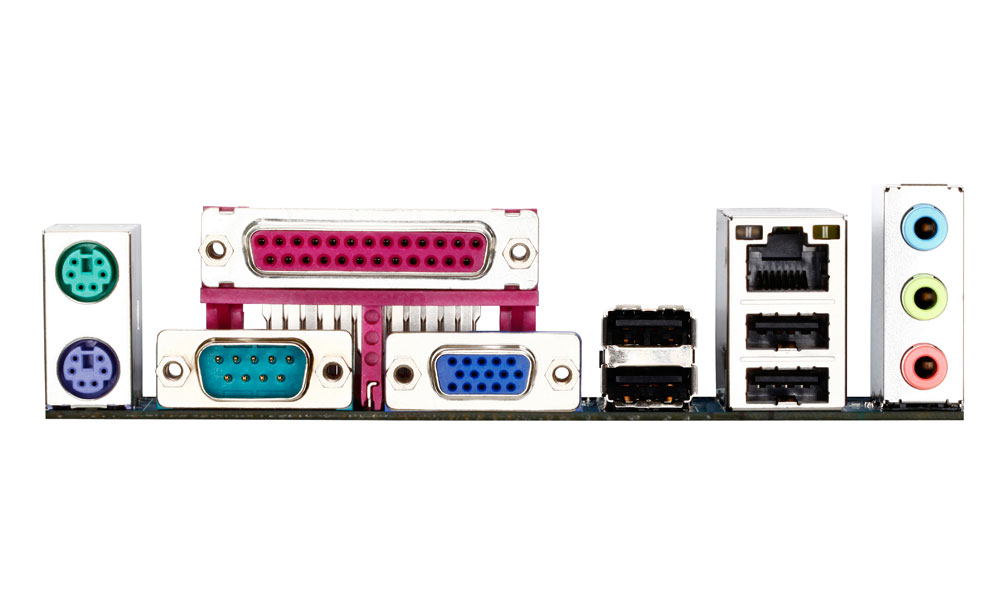

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity00
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H61
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeEFI AMI
BIOS memory size16 Mbit
ACPI version2.0a

Weight & dimensions

Width226 mm
Depth174 mm

Packaging content

Bundled softwareNorton Internet Security (OEM version)
