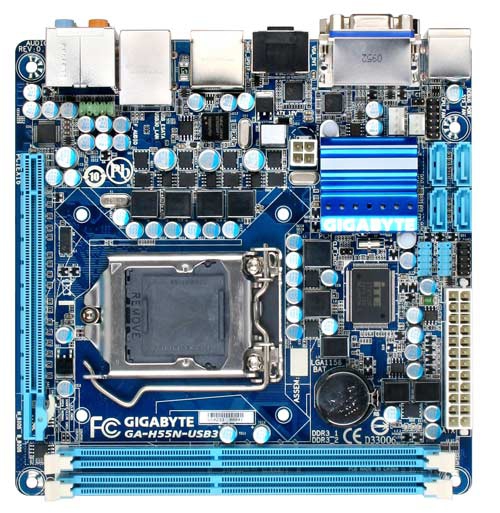

GIGABYTE GA-H55N-USB3 motherboard LGA 1156 (Socket H) mini ITX
Model GA-H55N-USB3EAN 4719331819149
36 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- Networking featuresRealtek RTL8111E
- Motherboard form factormini ITX
- PCI Express x16 slots1
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- Networking features
- Realtek RTL8111E
- Motherboard form factor
- mini ITX
- PCI Express x16 slots
- 1
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-H55N-USB3
- Part number
- GA-H55N-USB3
- EAN / UPC
- 4719331819149, 5052179621093
- Also known as
- GIGABYTE GA-H55N-USB3 motherboard LGA 1156 (Socket H) mini ITX
Specifications
36 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |

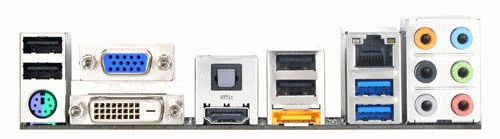

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek RTL8111E |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Audio chip | Realtek ALC892R |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| ACPI version | 1.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
