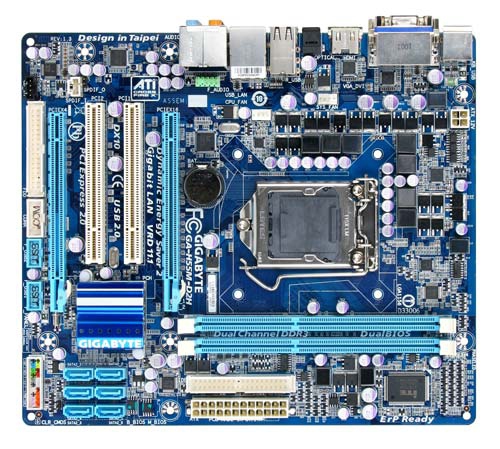

GIGABYTE GA-H55M-D2H motherboard LGA 1156 (Socket H) micro ATX
Model GA-H55M-D2HEAN 5055309609916
47 specifications
- Processor manufacturerIntel
- Number of memory slots2
- On-board graphics cardNo
- USB 2.0 ports quantity8
- Networking featuresGigabit Ethernet
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- On-board graphics card
- No
- USB 2.0 ports quantity
- 8
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- micro ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-H55M-D2H
- Part numbers
- GA-H55M-D2H, H55M-D2H, GAH55MD2H-00, GA-H55M-D2H-R1.4, GA-H55M-D2H-R1.3
- EAN / UPC
- 5055309609916
- Also known as
- GIGABYTE GA-H55M-D2H motherboard LGA 1156 (Socket H) micro ATX
Specifications
47 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2200 MHz |
| Maximum internal memory | 8 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |

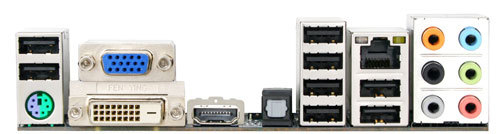

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888B / ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 128 Mbit |
| ACPI version | 1.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 210 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| Controller 2nd interface type | iTE IT8720 |
| Floppy disk drive connector | Yes |
