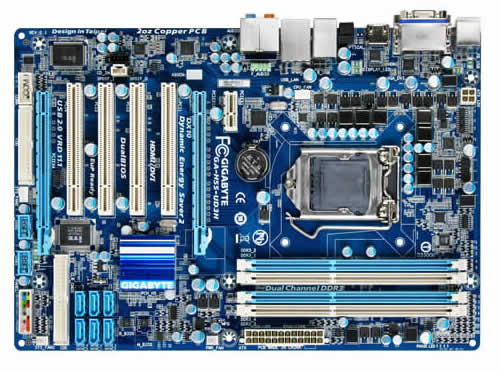

GIGABYTE GA-H55-UD3H motherboard LGA 1156 (Socket H) ATX
Model GA-H55-UD3HEAN 4719331850180
45 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 ports quantity8
- Networking features10/100/1000 Mbit/s
- Motherboard form factorATX
- PCI Express x1 slots1
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 ports quantity
- 8
- Networking features
- 10/100/1000 Mbit/s
- Motherboard form factor
- ATX
- PCI Express x1 slots
- 1
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-H55-UD3H
- Part numbers
- GA-H55-UD3H, H55UD3H
- EAN / UPC
- 4719331850180, 5052217135865
- Also known as
- GIGABYTE GA-H55-UD3H motherboard LGA 1156 (Socket H) ATX
Specifications
45 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |

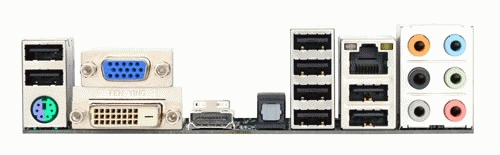

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbit/s |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 4 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| ACPI version | 1.0b |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 210 mm |
Other features
| Specification | Value |
|---|---|
| S/PDIF in port | Yes |
| Controller 2nd interface type | ATA-133/100/66/33 |
| Controller interface type | SATA2 |
| Floppy disk drive connector | Yes |
