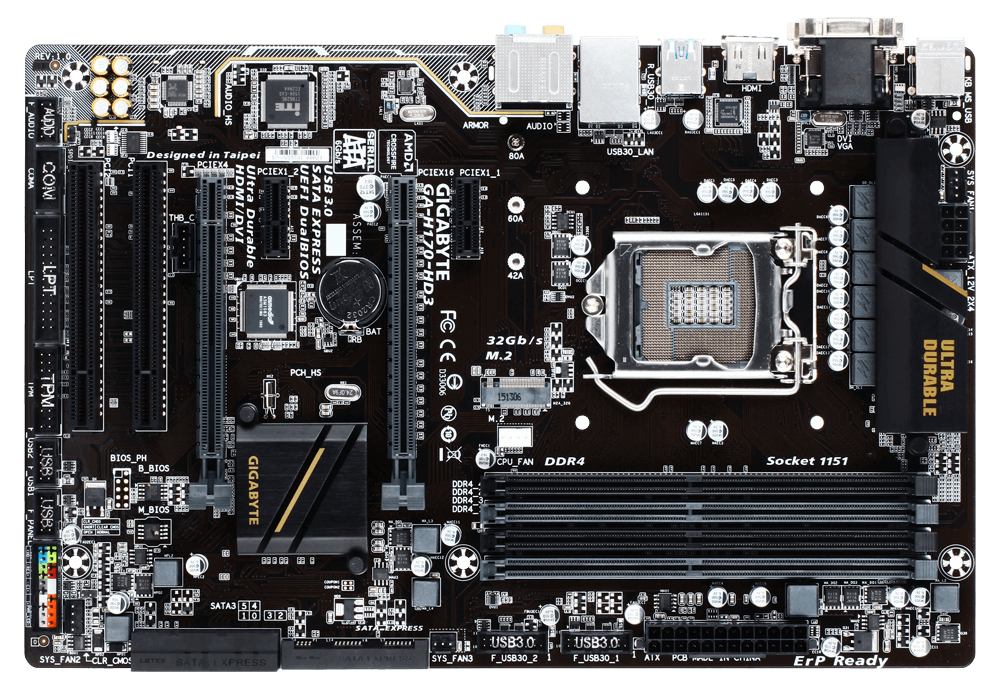

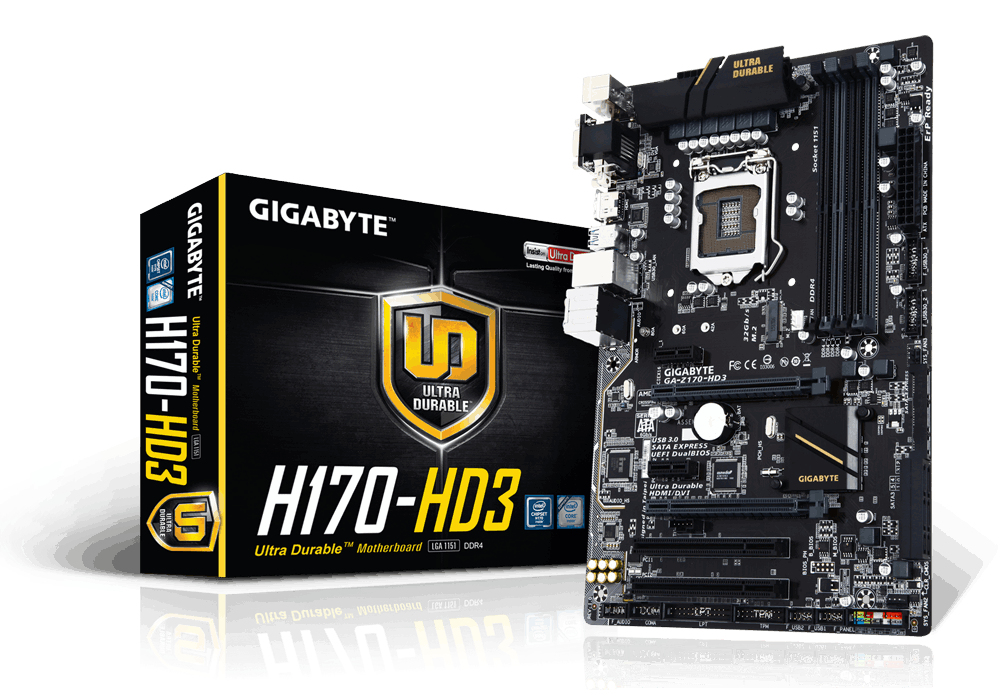

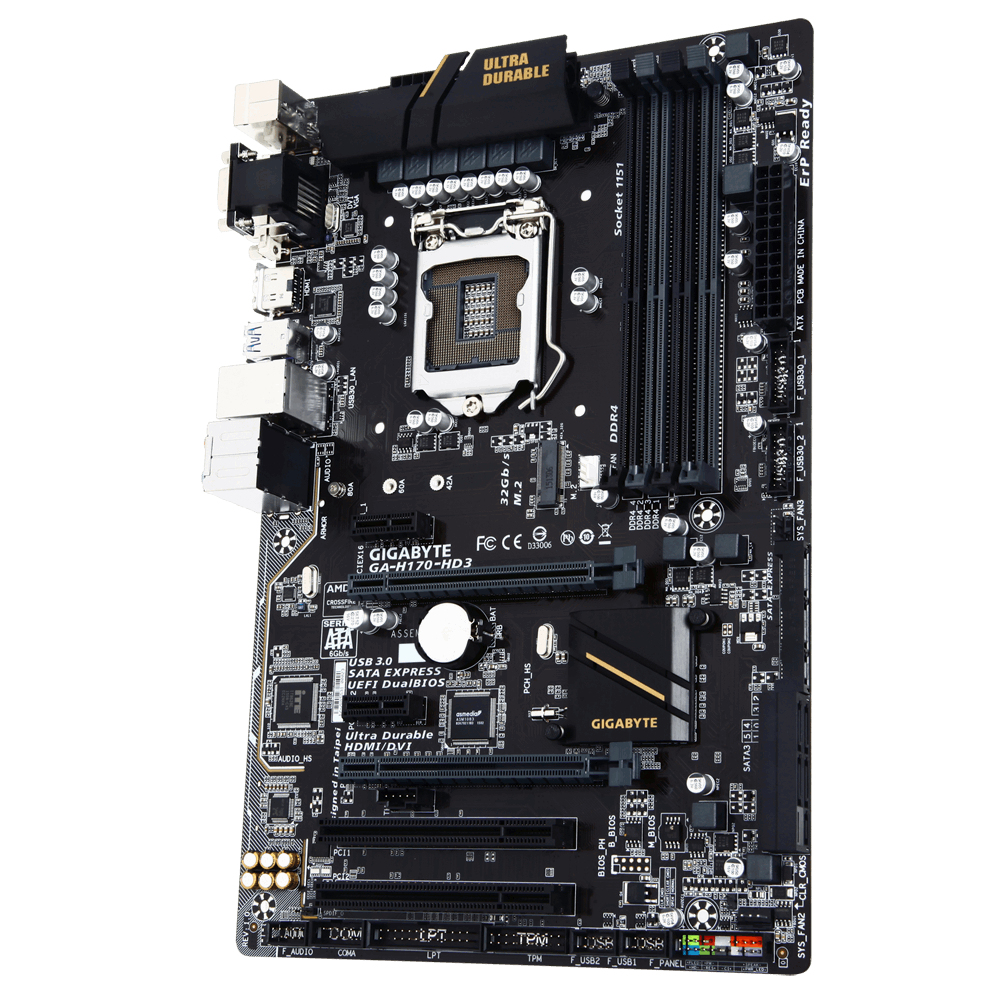

GIGABYTE GA-H170-HD3 motherboard Intel® H170 LGA 1151 (Socket H4) ATX
Model GA-H170-HD3EAN 889523001578
50 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesM.2, SATA
- Parallel processing technology support2-Way CrossFireX
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2, SATA
- Parallel processing technology support
- 2-Way CrossFireX
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-H170-HD3
- Part number
- GA-H170-HD3
- EAN / UPC
- 889523001578, 4719331829391, 8809321849334
- Also known as
- GIGABYTE GA-H170-HD3 motherboard Intel® H170 LGA 1151 (Socket H4) ATX
Specifications
50 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
| On-board graphics card | No |
| HDCP | Yes |
| Discrete graphics support | Yes |
| Number of displays supported | 3 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| Number of SATA III connectors | 6 |
| Number of SATA Express connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Thunderbolt headers | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H170 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 2 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| BIOS memory size | 128 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 199 mm |
What people say
Reviews & ratings
GIGABYTE GA-H170-HD3 motherboard Intel® H170 LGA 1151 (Socket H4) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-H170-HD3 motherboard Intel® H170 LGA 1151 (Socket H4) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-H170-HD3 motherboard Intel® H170 LGA 1151 (Socket H4) ATX
All motherboard comparisons- GIGABYTE GA-H170-HD3 motherboard Intel® H170 LGA 1151 (Socket H4) ATX vsGIGABYTE GA-Z170X-Gaming 3-EUCompare specs
- GIGABYTE GA-H170-HD3 motherboard Intel® H170 LGA 1151 (Socket H4) ATX vsGIGABYTE GA-Z170X-Gaming 5-EUCompare specs
- GIGABYTE GA-H170-HD3 motherboard Intel® H170 LGA 1151 (Socket H4) ATX vsGIGABYTE GA-B85M-HD3-A motherboard Intel® B85 LGA 1150 (Socket H3) micro ATXCompare specs
- GIGABYTE GA-H170-HD3 motherboard Intel® H170 LGA 1151 (Socket H4) ATX vsGIGABYTE GA-Z97X-Game PlusCompare specs
- GIGABYTE GA-H170-HD3 motherboard Intel® H170 LGA 1151 (Socket H4) ATX vsASUS Z170-P Intel® Z170 LGA 1151 (Socket H4) ATXCompare specs

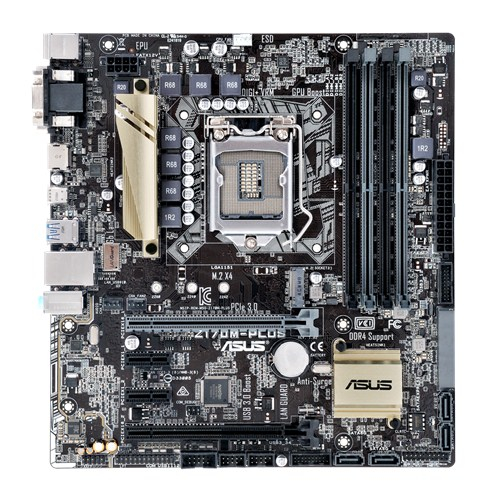

- GIGABYTE GA-H170-HD3 motherboard Intel® H170 LGA 1151 (Socket H4) ATX vsASUS Z170M-PLUS Intel® Z170 LGA 1151 (Socket H4) micro ATXCompare specs
