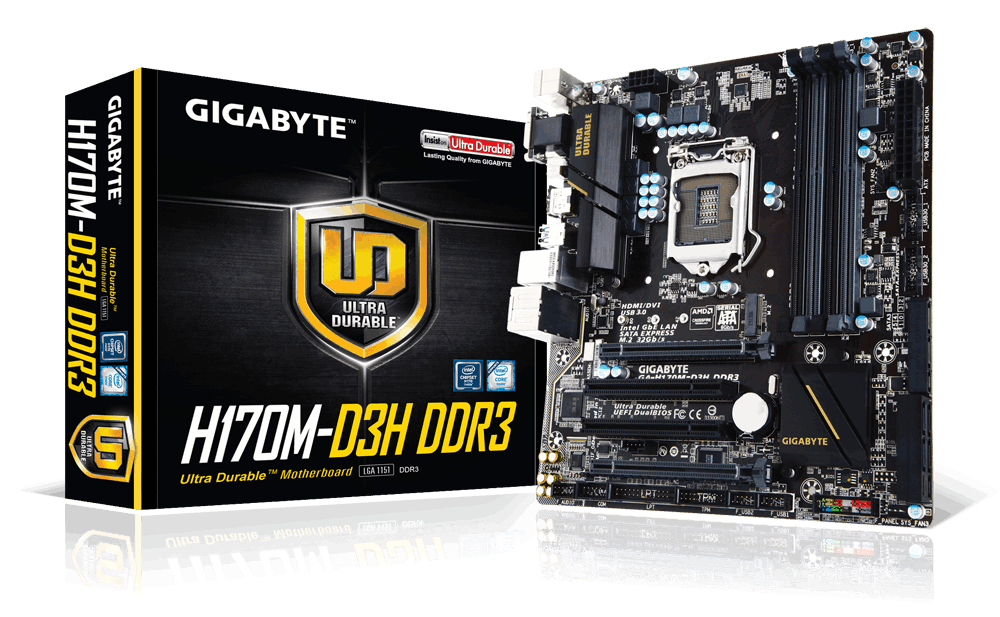

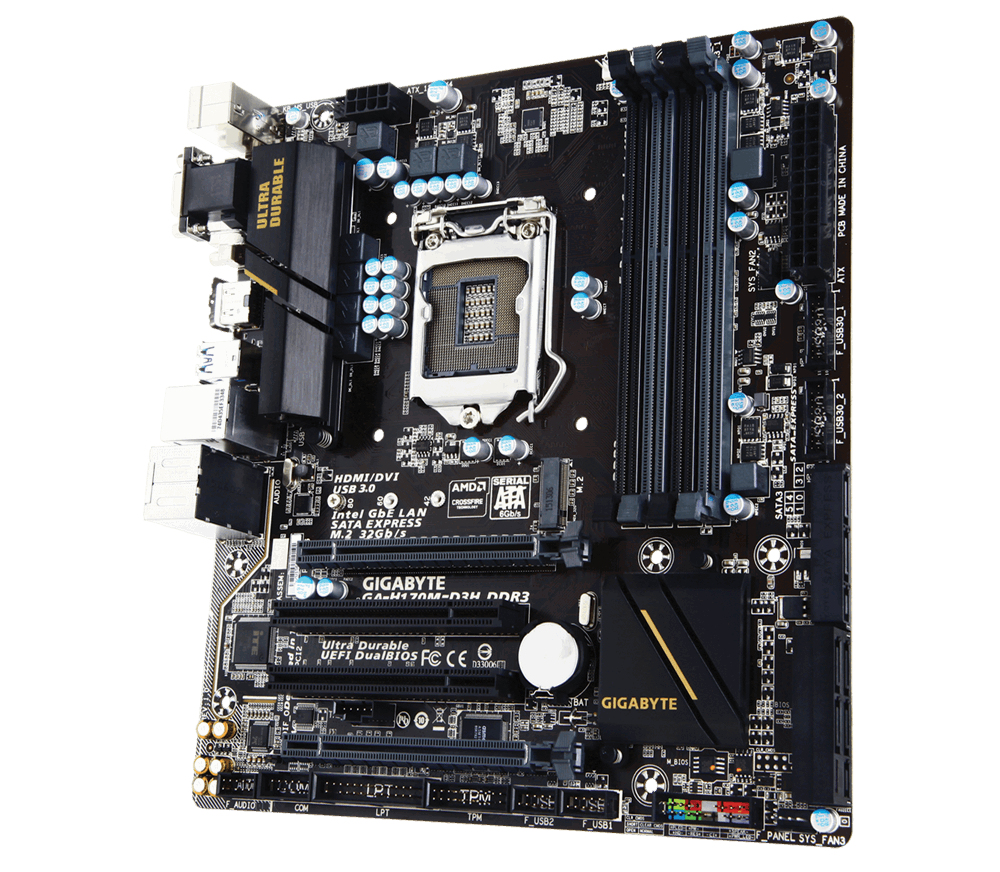

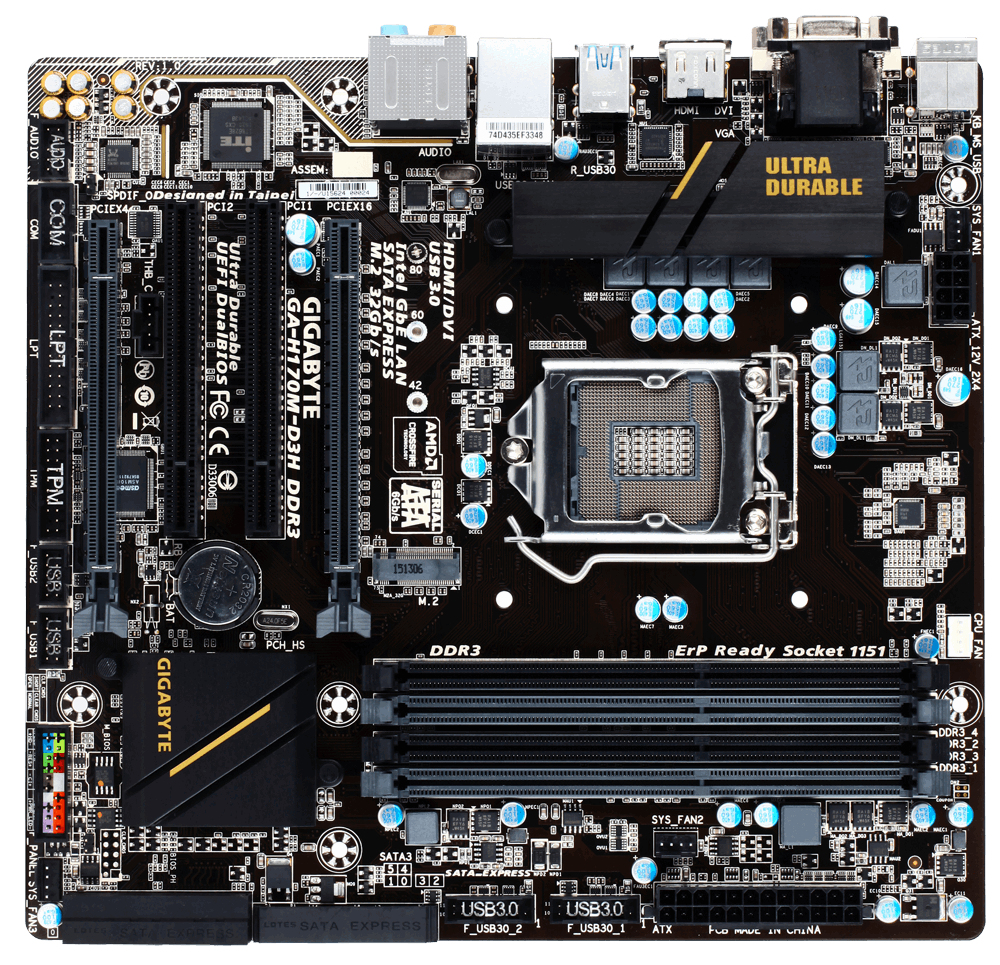

GIGABYTE GA-H170-D3H DDR3

GIGABYTE GA-H170-D3H DDR3

Model GA-H170-D3H DDR3

62 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
  • Supported storage drive interfacesM.2, SATA III
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM, DDR3L-SDRAM
Supported storage drive interfaces
M.2, SATA III
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
GA-H170-D3H DDR3
Part number
GA-H170-D3H DDR3
Also known as
GIGABYTE GA-H170-D3H DDR3 motherboard Intel® H170 LGA 1151 (Socket H4) micro ATX

Specifications

62 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX
On-board graphics cardNo
Graphics card familyIntel

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA Express connectors2
Number of Parallel ATA connectors0
S/PDIF out connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes
Thunderbolt headers1

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H170
Audio chipRealtek ALC892
Audio output channels7.1 channels
PC health monitoringFan, Temperature, Voltage
Power source typeATX
Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows

Expansion slots

PCI slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size32 Mbit
ACPI version5.0
Clear CMOS jumperYes

Weight & dimensions

Width244 mm
Depth255 mm

Packaging content

Cables includedSATA
Drivers includedYes
Bundled softwareNorton Internet Security (OEM version) Intel Smart Response Technology Intel Small Business Advantage cFosSpeed

Other features

mSATA ports quantity1
Parallel port via internal headerYes
Serial port via internal headerYes
