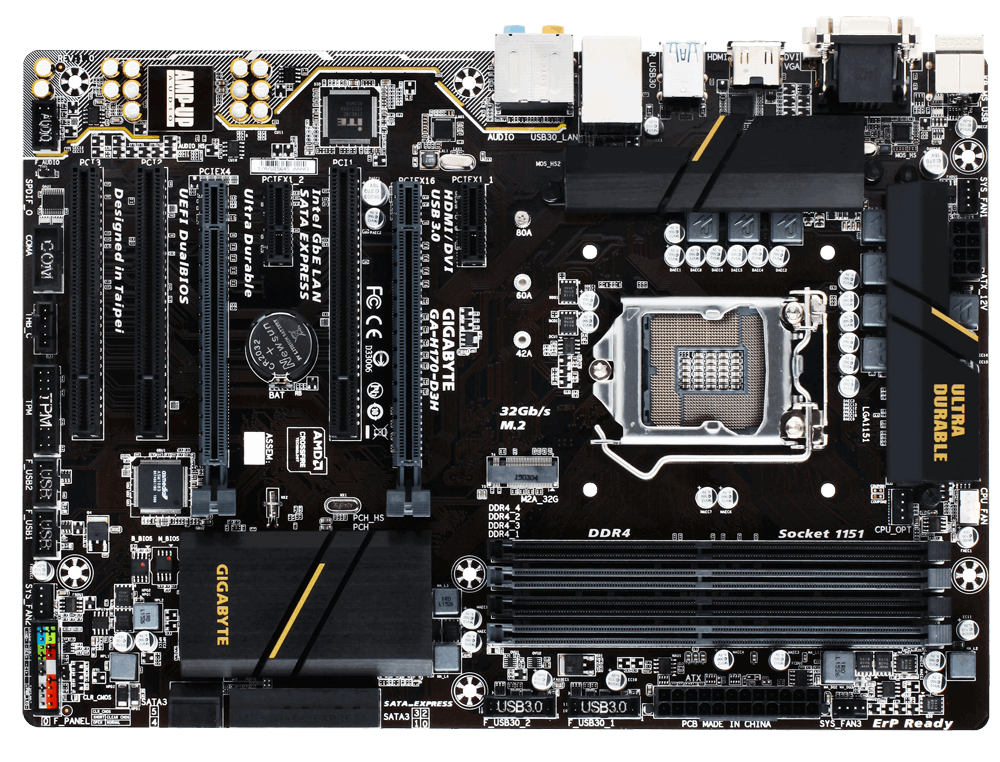

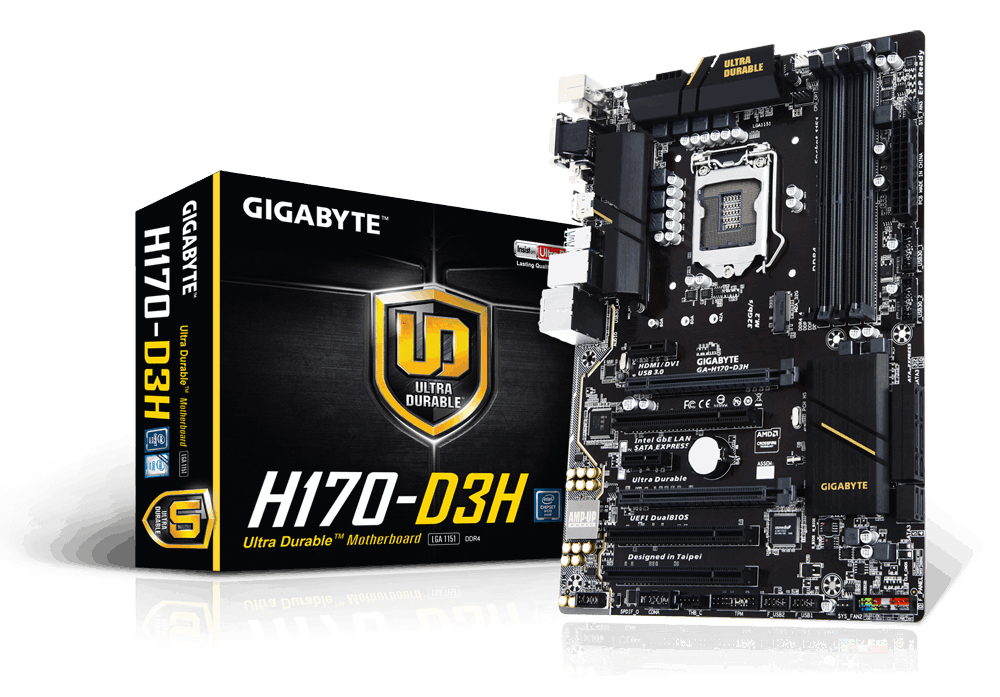

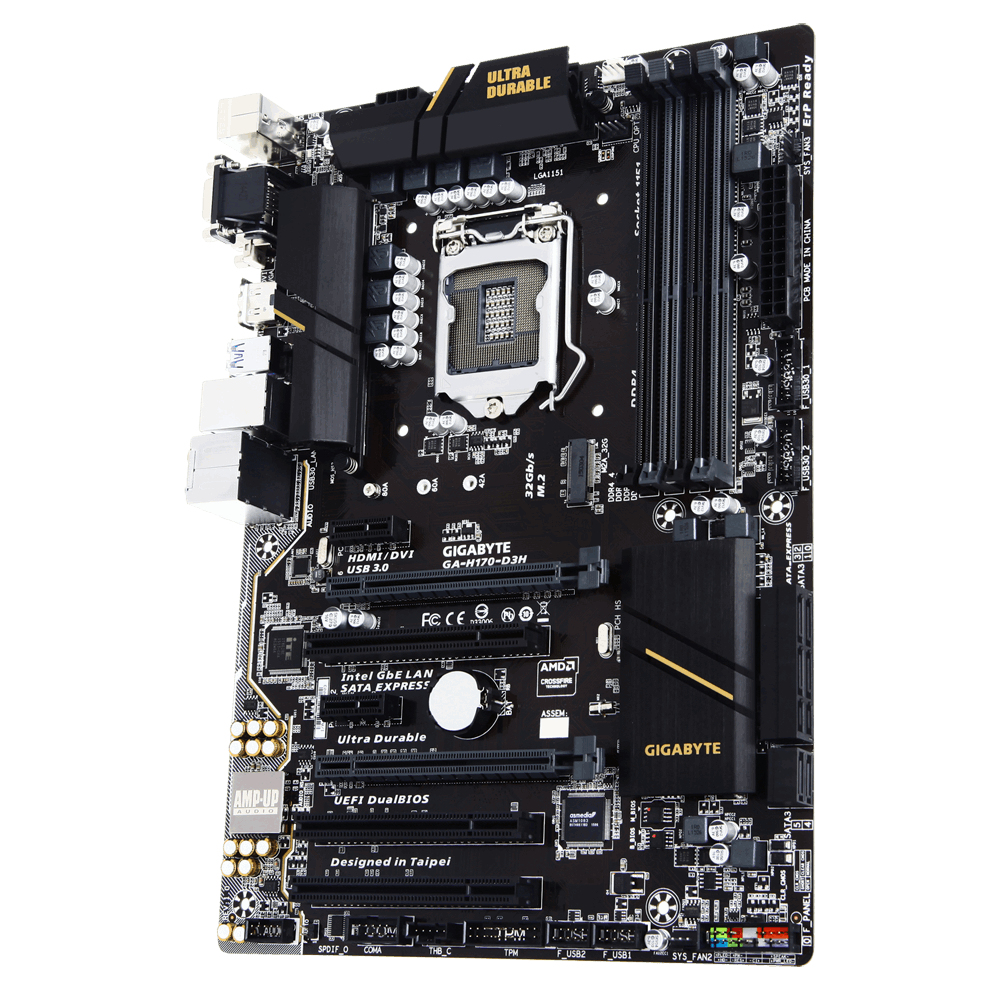

GIGABYTE GA-H170-D3H motherboard Intel® H170 LGA 1151 (Socket H4) ATX
Model GA-H170-D3HEAN 4719331832261
59 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesM.2, SATA III
- USB 2.0 connectors2
- Ethernet LANYes
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2, SATA III
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Component for
- PC
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-H170-D3H
- Part numbers
- GA-H170-D3H, GA-H170-D3H-R1
- EAN / UPC
- 4719331832261
- Also known as
- GIGABYTE GA-H170-D3H motherboard Intel® H170 LGA 1151 (Socket H4) ATX
Specifications
59 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| Thunderbolt headers | 1 |

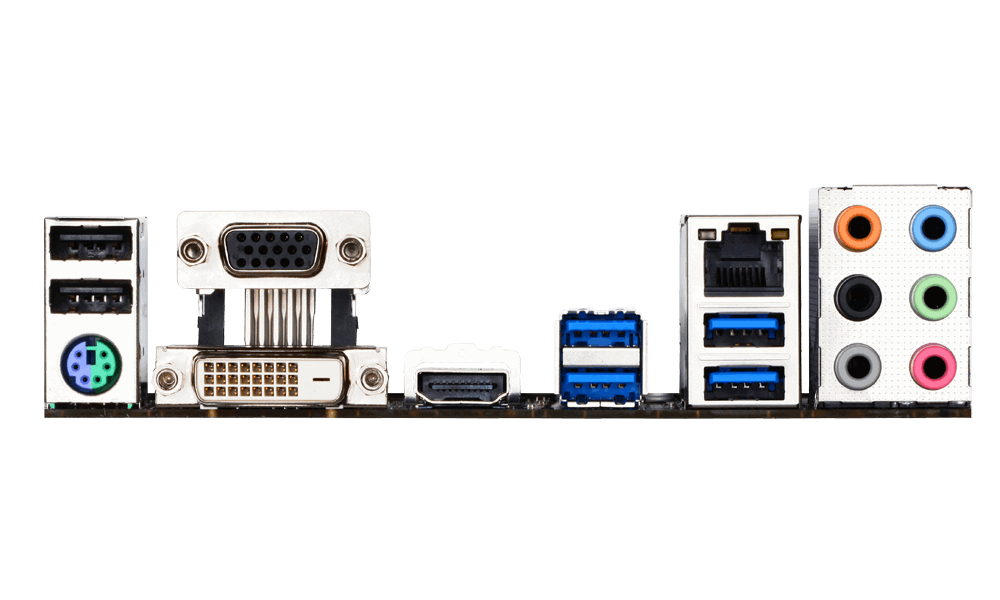

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H170 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
| PCI slots | 3 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 214 mm |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| Serial port via internal header | Yes |
What people say
Reviews & ratings
GIGABYTE GA-H170-D3H motherboard Intel® H170 LGA 1151 (Socket H4) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-H170-D3H motherboard Intel® H170 LGA 1151 (Socket H4) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-H170-D3H motherboard Intel® H170 LGA 1151 (Socket H4) ATX

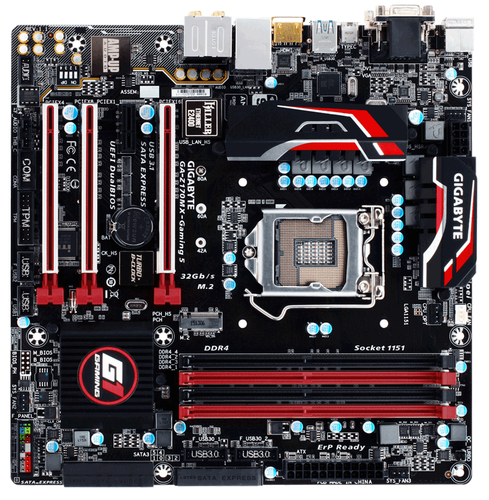

All motherboard comparisons- GIGABYTE GA-H170-D3H motherboard Intel® H170 LGA 1151 (Socket H4) ATX vsGIGABYTE GA-Z170MX-Gaming 5 (rev. 1.1)Compare specs

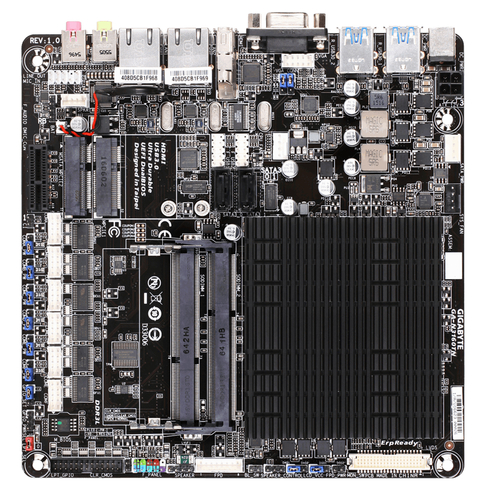

- GIGABYTE GA-H170-D3H motherboard Intel® H170 LGA 1151 (Socket H4) ATX vsGIGABYTE GA-N3160TN (rev. 1.0)Compare specs
- GIGABYTE GA-H170-D3H motherboard Intel® H170 LGA 1151 (Socket H4) ATX vsGIGABYTE MW31-SP0 Intel® C236 LGA 1151 (Socket H4) ATXCompare specs
- GIGABYTE GA-H170-D3H motherboard Intel® H170 LGA 1151 (Socket H4) ATX vsGIGABYTE MD60-SC1 Intel® C612 LGA 2011-v3 Extended ATXCompare specs

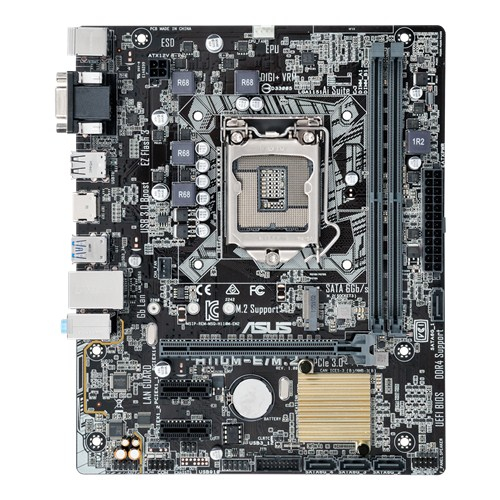

- GIGABYTE GA-H170-D3H motherboard Intel® H170 LGA 1151 (Socket H4) ATX vsASUS H110M-E/M.2 Intel® H110 LGA 1151 (Socket H4) micro ATXCompare specs

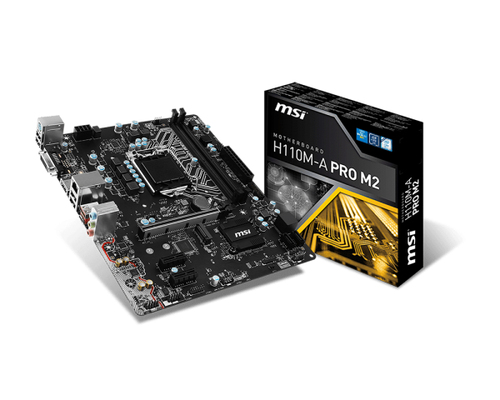

- GIGABYTE GA-H170-D3H motherboard Intel® H170 LGA 1151 (Socket H4) ATX vsMSI H110M-A PROCompare specs

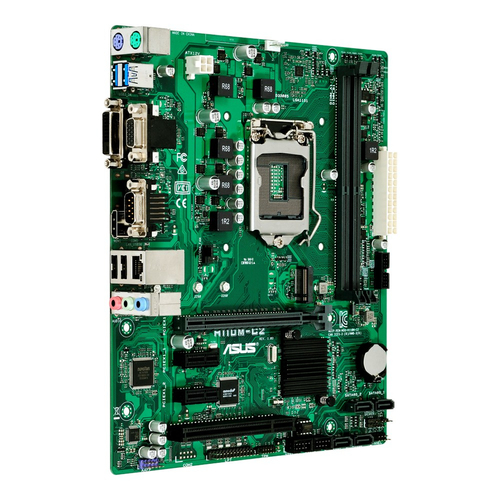

- GIGABYTE GA-H170-D3H motherboard Intel® H170 LGA 1151 (Socket H4) ATX vsASUS H110M-C2 motherboard Intel® H110 LGA 1151 (Socket H4) micro ATXCompare specs
