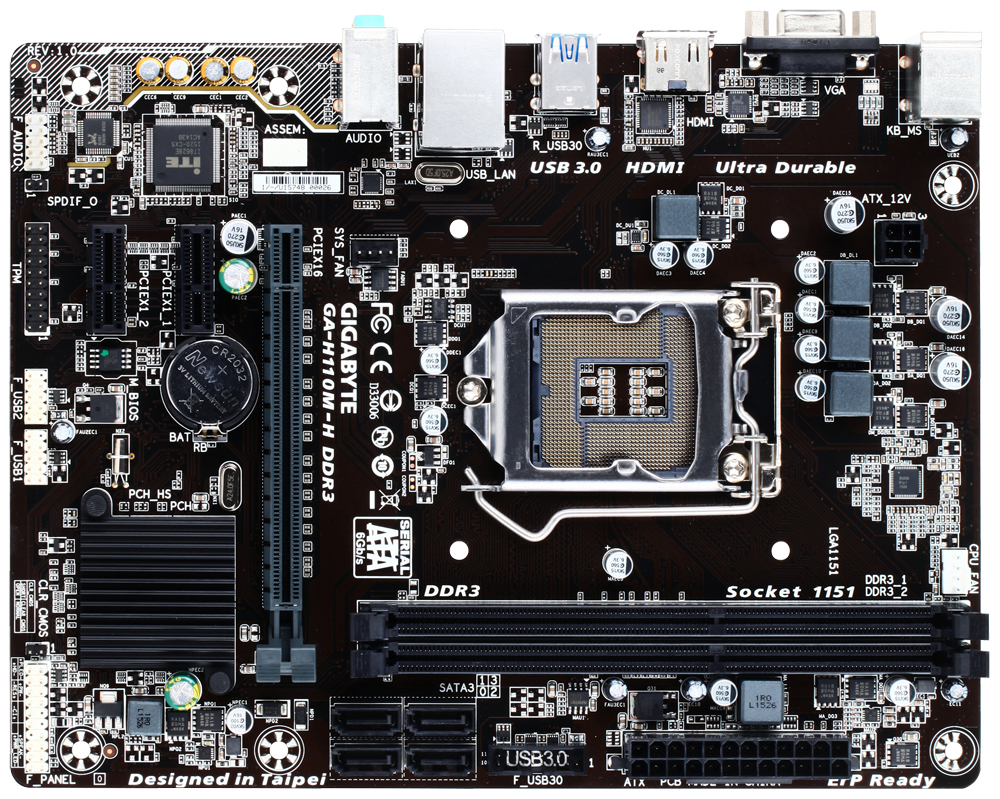

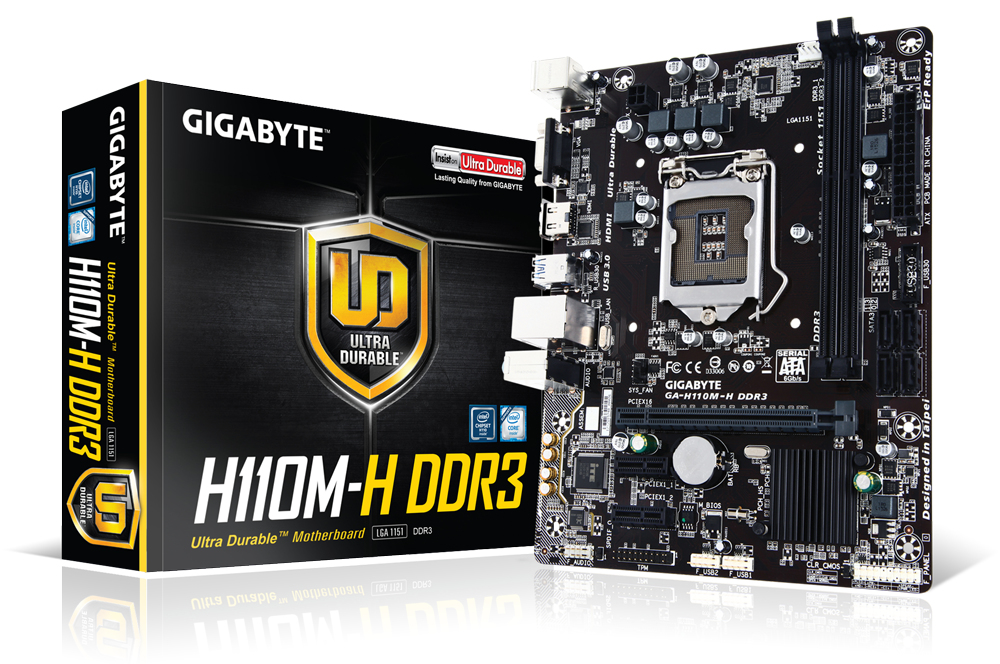

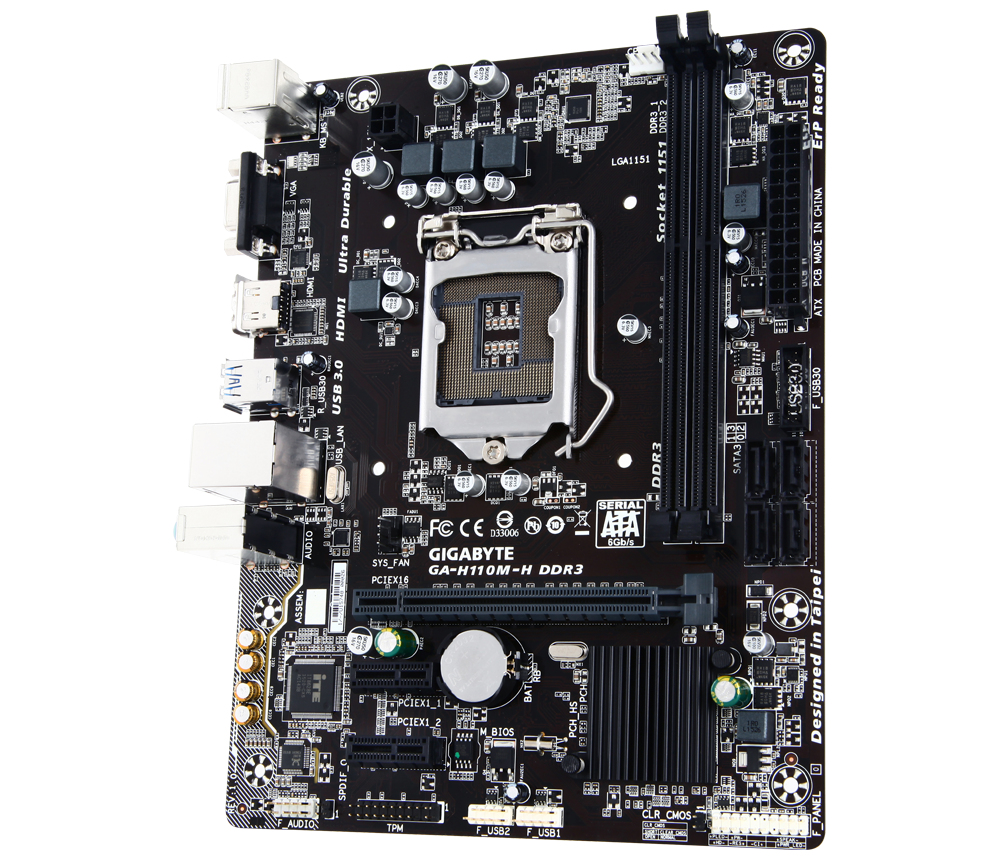

GIGABYTE GA-H110M-H DDR3 (rev. 1.0)
Model GA-H110M-H DDR3 (rev. 1.0)Part no. GA-H110M-H-DDR3
49 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
- Supported storage drive interfacesSATA III
- USB 2.0 connectors4
- USB 2.0 ports quantity2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM, DDR3L-SDRAM
- Supported storage drive interfaces
- SATA III
- USB 2.0 connectors
- 4
- USB 2.0 ports quantity
- 2
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-H110M-H DDR3 (rev. 1.0)
- Part number
- GA-H110M-H-DDR3
- Also known as
- GIGABYTE GA-H110M-H DDR3 (rev. 1.0) H110 Express LGA 1151 (Socket H4) micro ATX
Specifications
49 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM, DDR3L-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 1600 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |

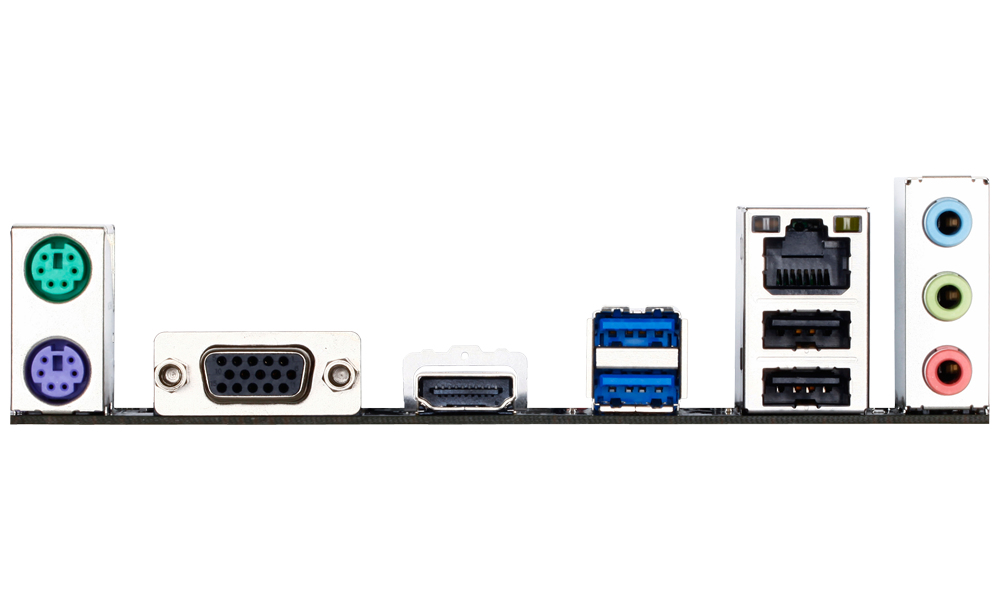

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | H110 Express |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 174 mm |
What people say
Reviews & ratings
GIGABYTE GA-H110M-H DDR3 (rev. 1.0)
No reviews yet
Be the first to tell others how GIGABYTE GA-H110M-H DDR3 (rev. 1.0) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-H110M-H DDR3 (rev. 1.0)

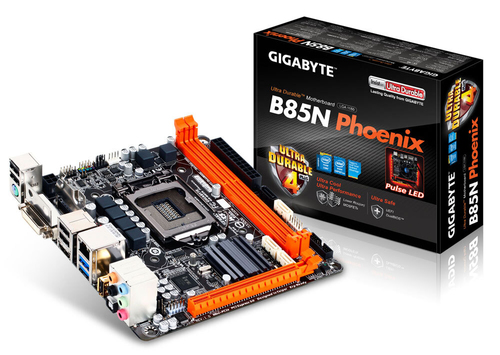

All motherboard comparisons- GIGABYTE GA-H110M-H DDR3 (rev. 1.0) vsGIGABYTE GA-B85N Phoenix (rev. 1.1)Compare specs
- GIGABYTE GA-H110M-H DDR3 (rev. 1.0) vsGIGABYTE B550M AORUS PRO-P (rev. 1.0)Compare specs
- GIGABYTE GA-H110M-H DDR3 (rev. 1.0) vsGIGABYTE GA-C1037UN-LA (rev. 1.0)Compare specs

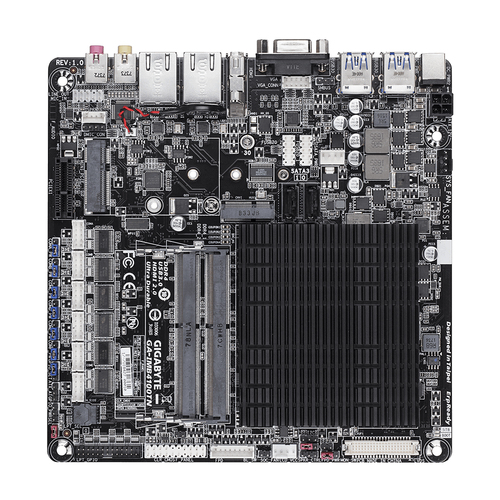

- GIGABYTE GA-H110M-H DDR3 (rev. 1.0) vsGIGABYTE GA-IMB4100TN motherboard Intel SoC mini ITXCompare specs
