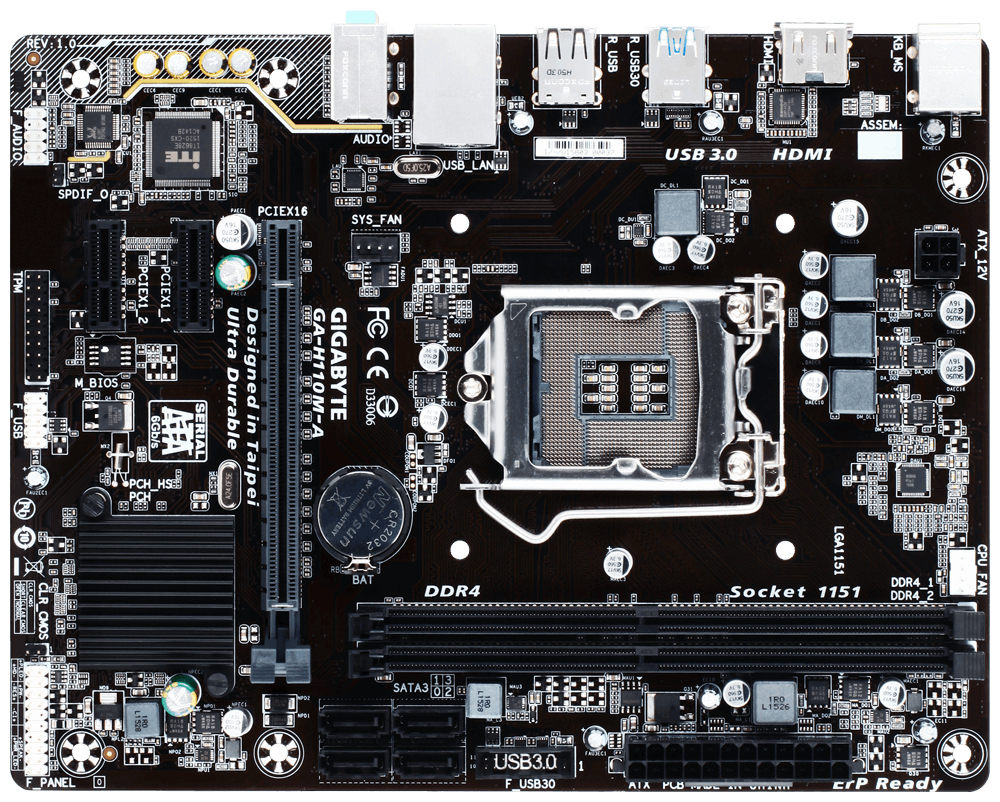

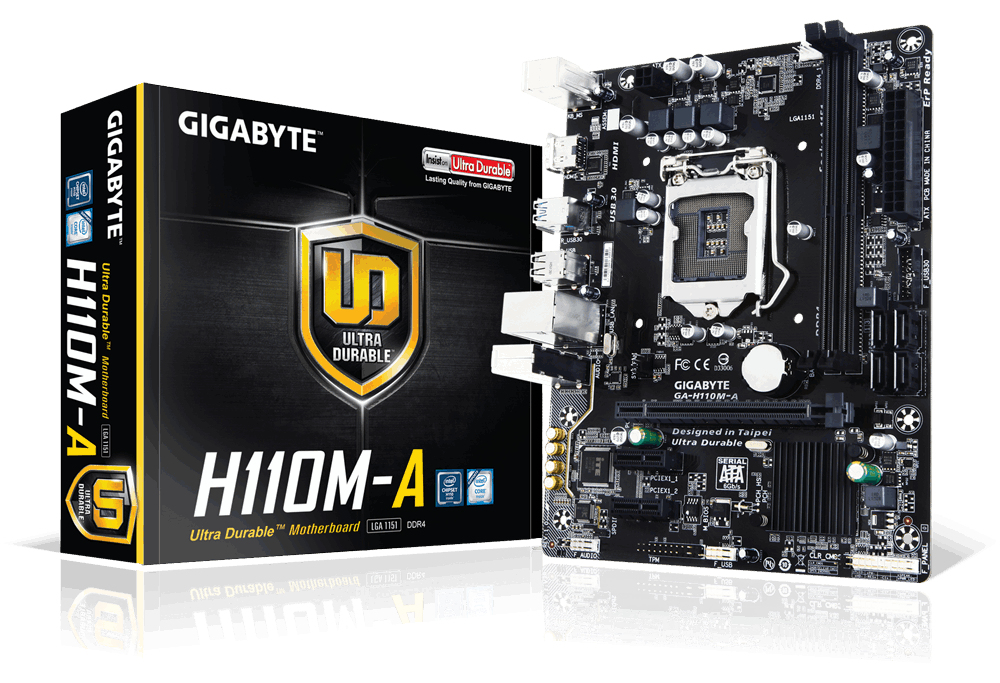

GIGABYTE GA-H110M-A motherboard Intel® H110 LGA 1151 (Socket H4) micro ATX
Model GA-H110M-AEAN 9126603896770
52 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- USB 2.0 connectors1
- USB 2.0 ports quantity2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-H110M-A
- Part number
- GA-H110M-A
- EAN / UPC
- 9126603896770, 789474969210, 796594171638, 889523002414 +9 more
- Also known as
- GIGABYTE GA-H110M-A motherboard Intel® H110 LGA 1151 (Socket H4) micro ATX
Specifications
52 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H110 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 174 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-H110M-A motherboard Intel® H110 LGA 1151 (Socket H4) micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-H110M-A motherboard Intel® H110 LGA 1151 (Socket H4) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-H110M-A motherboard Intel® H110 LGA 1151 (Socket H4) micro ATX
All motherboard comparisons- GIGABYTE GA-H110M-A motherboard Intel® H110 LGA 1151 (Socket H4) micro ATX vsGIGABYTE GA-X99-GAMING5 motherboard Intel® X99 LGA 2011-v3 ATXCompare specs
- GIGABYTE GA-H110M-A motherboard Intel® H110 LGA 1151 (Socket H4) micro ATX vsGIGABYTE GA-H170-HD3 DDR3 (rev. 1.0)Compare specs
- GIGABYTE GA-H110M-A motherboard Intel® H110 LGA 1151 (Socket H4) micro ATX vsGIGABYTE GA-6PXSV2 (rev. 1.0)Compare specs
- GIGABYTE GA-H110M-A motherboard Intel® H110 LGA 1151 (Socket H4) micro ATX vsGIGABYTE GA-H61M-DS2-LA 4.0Compare specs

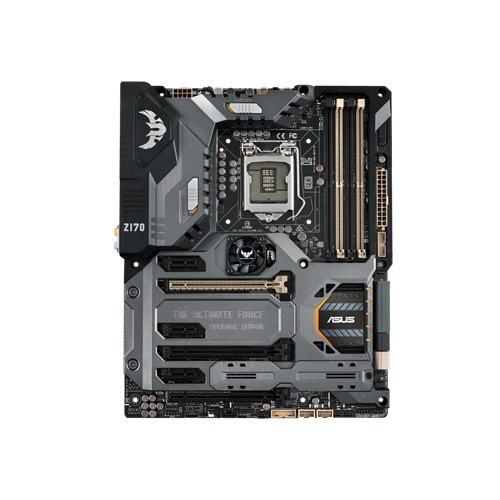

- GIGABYTE GA-H110M-A motherboard Intel® H110 LGA 1151 (Socket H4) micro ATX vsASUS SABERTOOTH Z170 MARK 1Compare specs
