GIGABYTE GA-GC330UD motherboard NA (integrated CPU) mini ITX
Model GA-GC330UDEAN 4719331810207
36 specifications
- Processor330
- Processor manufacturerIntel
- Number of memory slots1
- USB 2.0 connectors4
- USB 2.0 ports quantity3
- Networking featuresFast Ethernet
Overview
- Processor
- 330
- Processor manufacturer
- Intel
- Number of memory slots
- 1
- USB 2.0 connectors
- 4
- USB 2.0 ports quantity
- 3
- Networking features
- Fast Ethernet
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-GC330UD
- Part number
- GA-GC330UD
- EAN / UPC
- 4719331810207
- Also known as
- GIGABYTE GA-GC330UD motherboard NA (integrated CPU) mini ITX
Specifications
36 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | NA (integrated CPU) |
| Processor model | 330 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 1 |
| Maximum internal memory | 2 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |

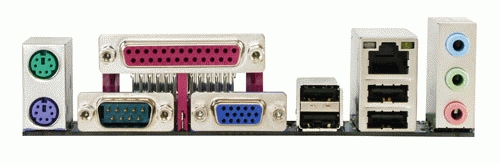

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows XP/Vista |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller interface type | iTE IT8718 |
