GIGABYTE GA-Gaming B8

GIGABYTE GA-Gaming B8

Model GA-Gaming B8Part no. GA-GAMING B8EAN 889523007990

68 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • Graphics card familyAMD
  • USB 2.0 connectors2
  • USB 2.0 ports quantity1
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Graphics card family
AMD
USB 2.0 connectors
2
USB 2.0 ports quantity
1
Brand
GIGABYTE
Category
Motherboard
Model
GA-Gaming B8
Part number
GA-GAMING B8
EAN / UPC
889523007990
Also known as
GIGABYTE GA-Gaming B8 Intel® B250 LGA 1151 (Socket H4) ATX

Specifications

68 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesi3-6xxx, i3-7xxx, i5-6xxx, i5-7xxx, i7-6xxx, i7-7xxx

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III

Graphics

Graphics card familyAMD
Graphics cardHD Graphics
Maximum resolution4096 x 2160 pixels
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
Thunderbolt headers1

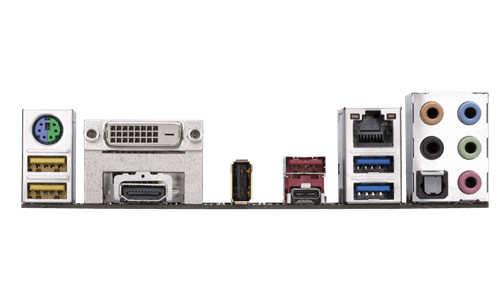

Rear panel I/O ports

USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version1.4
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® B250
Audio chipRealtek ALC1220
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
CertificationCE

Expansion slots

Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
ACPI version5.0
Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth230 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes
