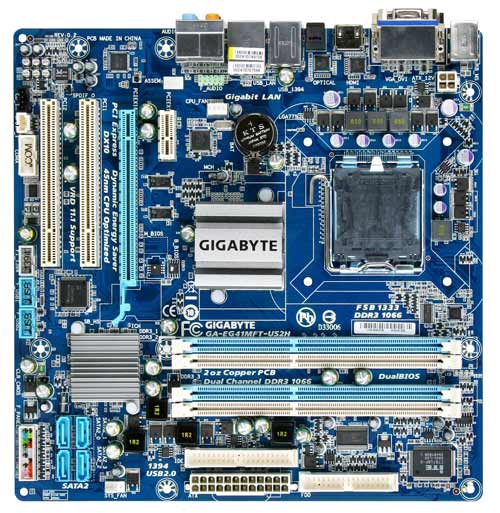

GIGABYTE GA-G41MFT-US2H motherboard LGA 775 (Socket T) micro ATX
Model GA-G41MFT-US2H
33 specifications
- Processor socketLGA 775 (Socket T)
- Number of memory slots4
- Parallel processing technology supportNot supported
- USB 2.0 connectors8
- Motherboard form factormicro ATX
- PCI Express x1 slots1
Overview
- Processor socket
- LGA 775 (Socket T)
- Number of memory slots
- 4
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 8
- Motherboard form factor
- micro ATX
- PCI Express x1 slots
- 1
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-G41MFT-US2H
- Part number
- GA-G41MFT-US2H
- Also known as
- GIGABYTE GA-G41MFT-US2H motherboard LGA 775 (Socket T) micro ATX
Specifications
33 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 800,1066,1333 MHz |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 8 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| CD/AUX audio in | Yes |

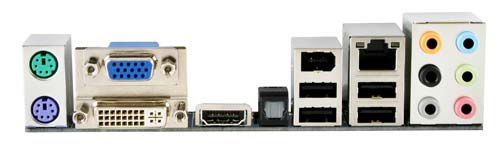

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 16 Mbit |
| ACPI version | 1.0 |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| S/PDIF in port | Yes |
| Audio output | 6 |
