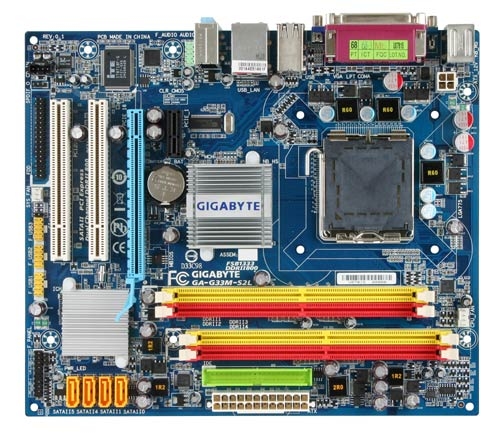

GIGABYTE GA-G33M-S2L - LGA 775, Micro ATX
Model GA-G33M-S2L - LGA 775, Micro ATXPart no. GA-G33M-S2LEAN 818313004918
30 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111B
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- micro ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-G33M-S2L - LGA 775, Micro ATX
- Part number
- GA-G33M-S2L
- EAN / UPC
- 818313004918, 4719331841065
- Also known as
- GIGABYTE GA-G33M-S2L - LGA 775, Micro ATX LGA 775 (Socket T)
Specifications
30 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Vista/XP/2000 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express X16 1 x PCI Express X1 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 207 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
