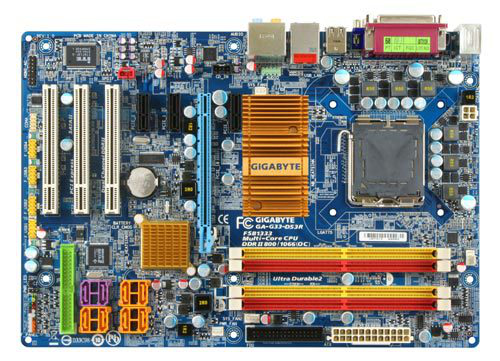

GIGABYTE GA-G33M-DS3R Intel G33 + ICH9R Chipset
Model GA-G33M-DS3R Intel G33 + ICH9R ChipsetPart no. GA-G33-DS3R
33 specifications
- Processor manufacturerIntel
- Number of memory slots4
- LAN controllerRealtek RTL8111B
- Motherboard form factorATX
- Width244 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- ATX
- Width
- 244 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-G33M-DS3R Intel G33 + ICH9R Chipset
- Part number
- GA-G33-DS3R
- Also known as
- GIGABYTE GA-G33M-DS3R Intel G33 + ICH9R Chipset LGA 775 (Socket T) ATX
Specifications
33 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 8 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
| Networking features | Gigabit Ethernet, IEEE1394 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889A |
| Power source type | ATX |
| Compatible operating systems | - Win9X/ME - Linux |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 1 x PCI Express X16 - 1 x PCI Express X4 - 2 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Graphics controller | Intel GMA 3100 |
| RAID controller type | SATA 3Gb/s |
