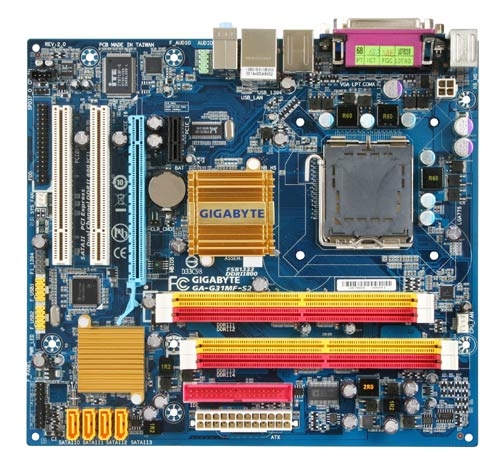

GIGABYTE GA-G31MF-S2 motherboard LGA 775 (Socket T) micro ATX
Model GA-G31MF-S2
35 specifications
- Processor manufacturerIntel
- Number of memory slots4
- Graphics cardGMA 3100
- LAN controllerRealtek RTL8111C
- Motherboard form factormicro ATX
- Expansion slots1 X PCIe x16 1 x PCIe x1 2 x PCI
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- Graphics card
- GMA 3100
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- micro ATX
- Expansion slots
- 1 X PCIe x16 1 x PCIe x1 2 x PCI
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-G31MF-S2
- Part number
- GA-G31MF-S2
- Also known as
- GIGABYTE GA-G31MF-S2 motherboard LGA 775 (Socket T) micro ATX
Specifications
35 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron® |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Graphics card | GMA 3100 |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 3 |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek AL662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Vista/XP/2000 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 X PCIe x16 1 x PCIe x1 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-G31MF-S2 motherboard LGA 775 (Socket T) micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-G31MF-S2 motherboard LGA 775 (Socket T) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-G31MF-S2 motherboard LGA 775 (Socket T) micro ATX

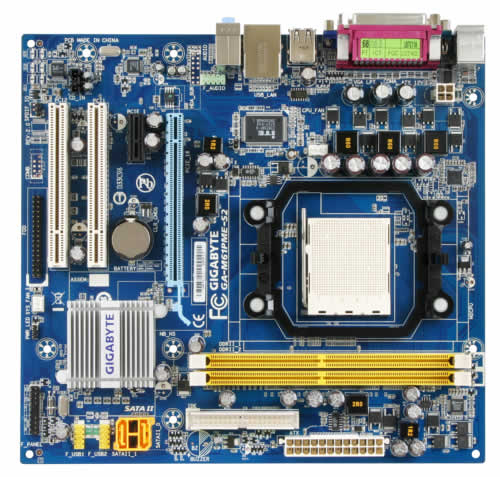

All motherboard comparisons- GIGABYTE GA-G31MF-S2 motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-M61PME-S2 motherboard Socket AM2 micro ATXCompare specs

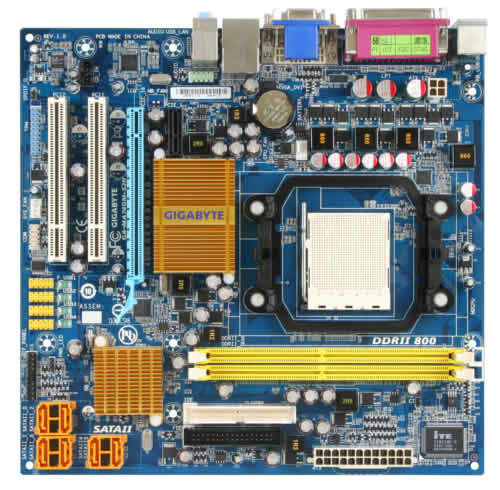

- GIGABYTE GA-G31MF-S2 motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-MA74GM-S2H motherboard AMDCompare specs

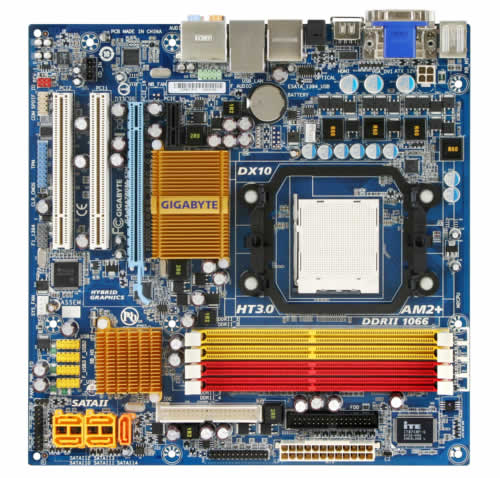

- GIGABYTE GA-G31MF-S2 motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-MA78GM-S2H motherboard AMDCompare specs

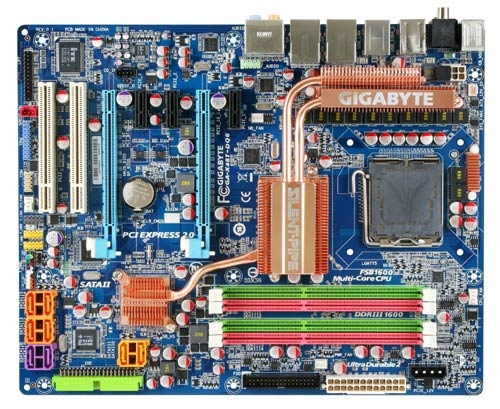

- GIGABYTE GA-G31MF-S2 motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-X48T-DQ6 motherboard LGA 775 (Socket T) ATXCompare specs
