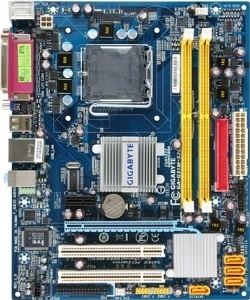

GIGABYTE GA-G31M-S2L motherboard LGA 775 (Socket T) micro ATX
Model GA-G31M-S2LEAN 818313004741
34 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- Motherboard form factormicro ATX
- Width243 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- Motherboard form factor
- micro ATX
- Width
- 243 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-G31M-S2L
- Part number
- GA-G31M-S2L
- EAN / UPC
- 818313004741, 4719331834159
- Also known as
- GIGABYTE GA-G31M-S2L motherboard LGA 775 (Socket T) micro ATX
Specifications
34 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Vista/XP/2000 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 1 x PCI Express x1 2 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 243 mm |
| Depth | 193 mm |
Other features
| Specification | Value |
|---|---|
| Audio output | S/PDIF |
| Floppy disk drive connector | Yes |
| Special features | -@BIOS -Q-Flash -EasyTune -Xpress Install -Xpress Recovery2 -Virtual Dual BIOS |
