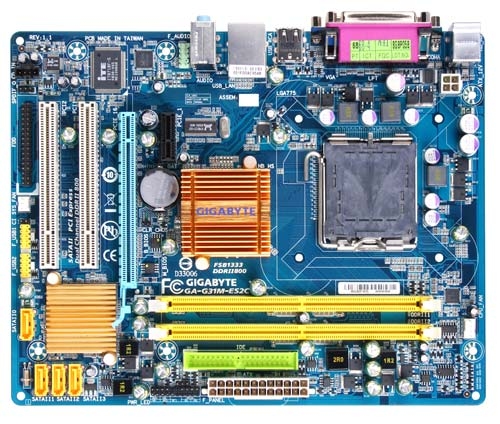

GIGABYTE GA-G31M-ES2C motherboard LGA 775 (Socket T) micro ATX
Model GA-G31M-ES2CEAN 4719331843243
41 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 connectors8
- USB 2.0 ports quantity4
- Networking features10/100 Mbit
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 connectors
- 8
- USB 2.0 ports quantity
- 4
- Networking features
- 10/100 Mbit
- Motherboard form factor
- micro ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-G31M-ES2C
- Part number
- GA-G31M-ES2C
- EAN / UPC
- 4719331843243
- Also known as
- GIGABYTE GA-G31M-ES2C motherboard LGA 775 (Socket T) micro ATX
Specifications
41 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory voltage | 1.8 V |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 8 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |

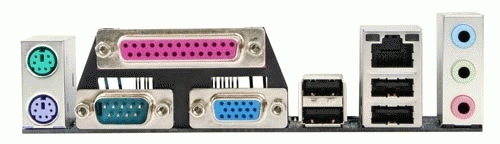

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| S/PDIF out port | No |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC883 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Vista, XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Expansion slots | 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 194 mm |
Packaging content
| Specification | Value |
|---|---|
| Trial software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-G31M-ES2C motherboard LGA 775 (Socket T) micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-G31M-ES2C motherboard LGA 775 (Socket T) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-G31M-ES2C motherboard LGA 775 (Socket T) micro ATX
All motherboard comparisons- GIGABYTE GA-G31M-ES2C motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-X58A-UD7 motherboard Socket B (LGA 1366) ATXCompare specs
- GIGABYTE GA-G31M-ES2C motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-5AX motherboard ATXCompare specs
- GIGABYTE GA-G31M-ES2C motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE EX58A-UD7 Socket 1366 ATX 6.4GTCompare specs

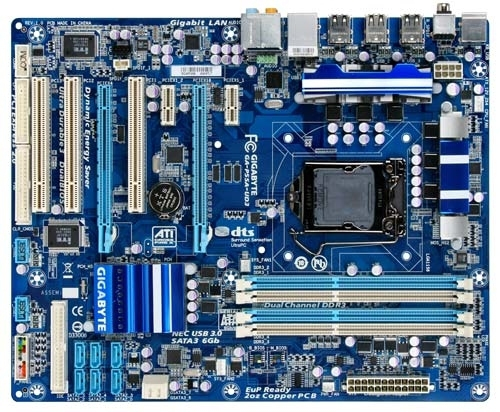

- GIGABYTE GA-G31M-ES2C motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-P55A-UD3 motherboard Intel® P55 LGA 1156 (Socket H) ATXCompare specs

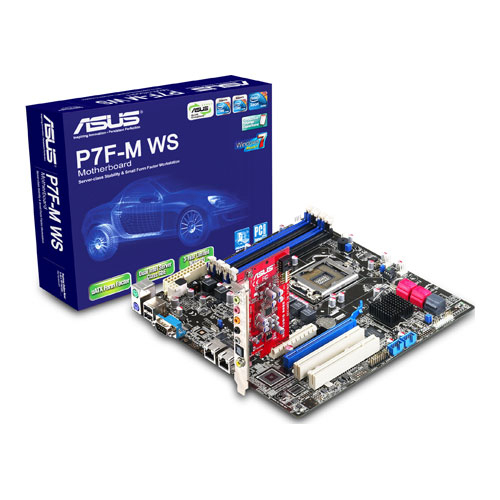

- GIGABYTE GA-G31M-ES2C motherboard LGA 775 (Socket T) micro ATX vsASUS P7F-M WSCompare specs
