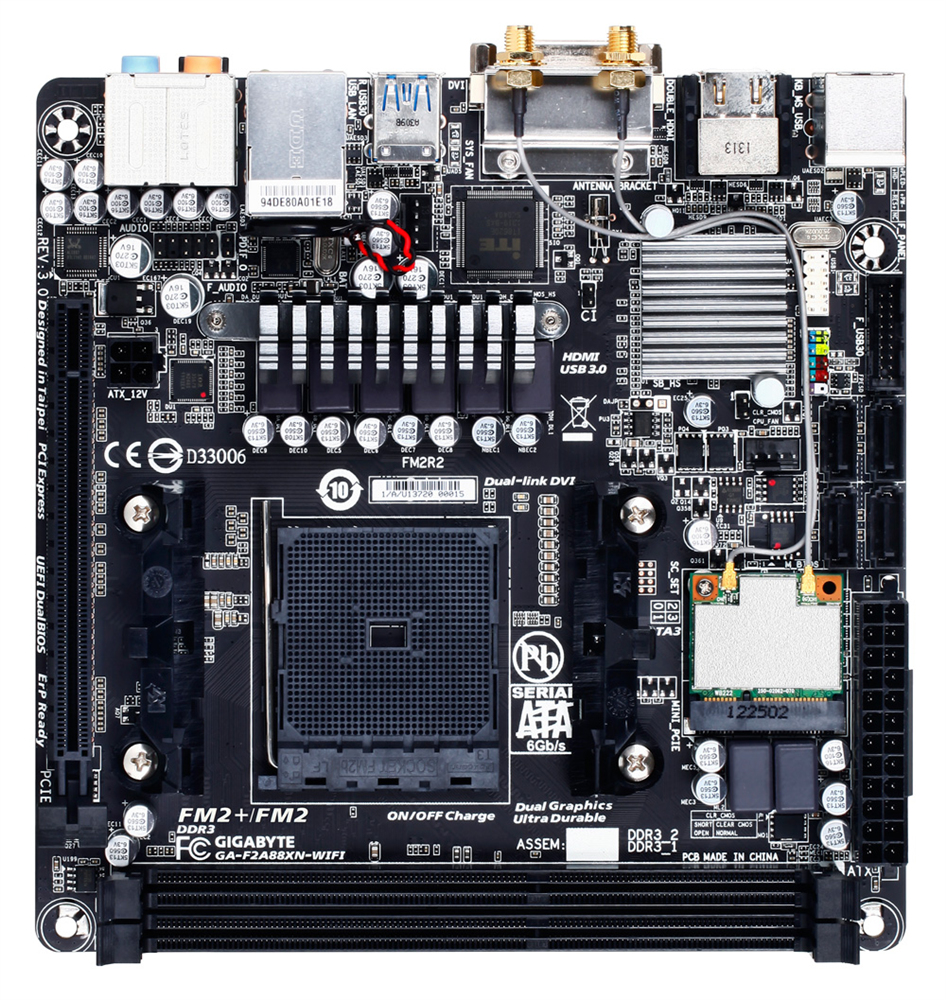

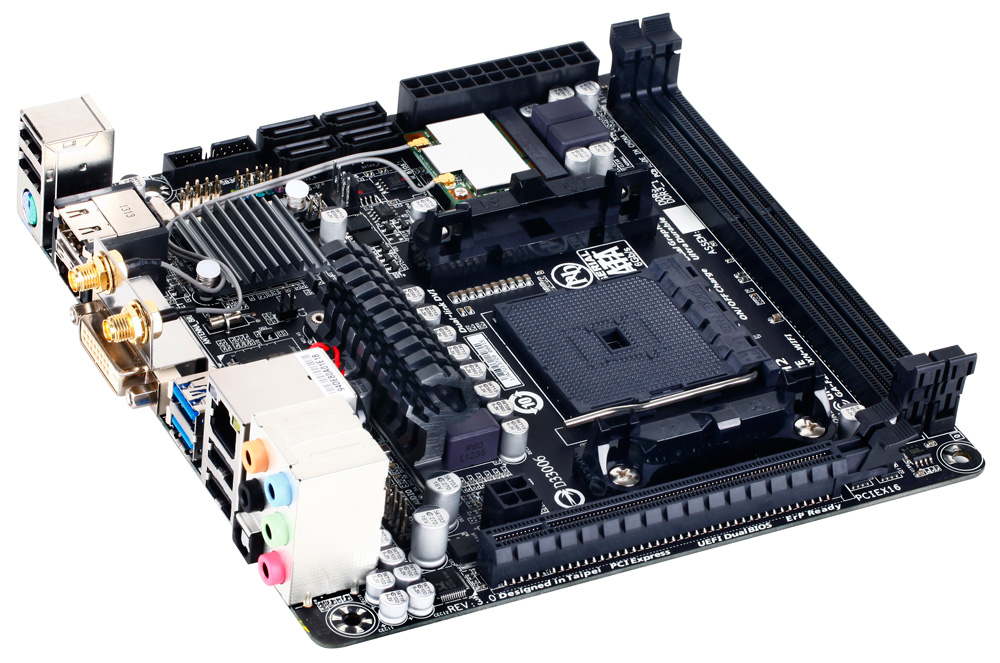

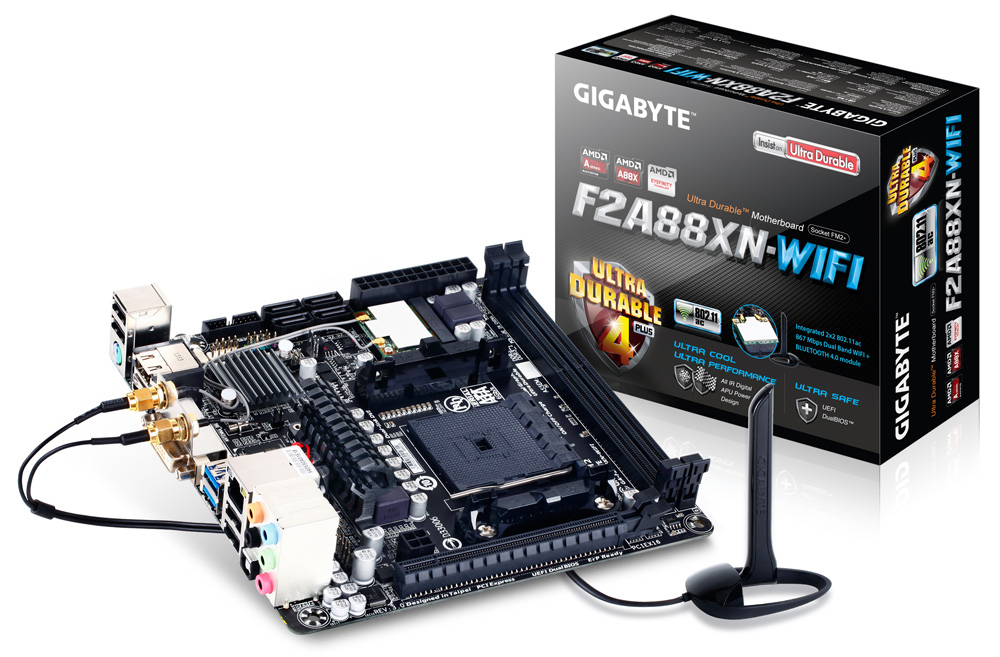

GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX
Model GA-F2A88XN-WIFIPart no. GA-F2A88XN-WIFI-R3EAN 8183130181138
71 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- Maximum graphics card memory2048 MB
- USB 2.0 connectors1
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- Maximum graphics card memory
- 2048 MB
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-F2A88XN-WIFI
- Part numbers
- GA-F2A88XN-WIFI-R3, GA-F2A88XN-WIFI
- EAN / UPC
- 8183130181138, 115971586948, 132018197332, 163121396213 +7 more
- Also known as
- GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX
Specifications
71 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket FM2+ |
| Compatible processor series | AMD A |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1333,1600,1866,2133 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 2048 MB |
| Graphics card family | AMD |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |

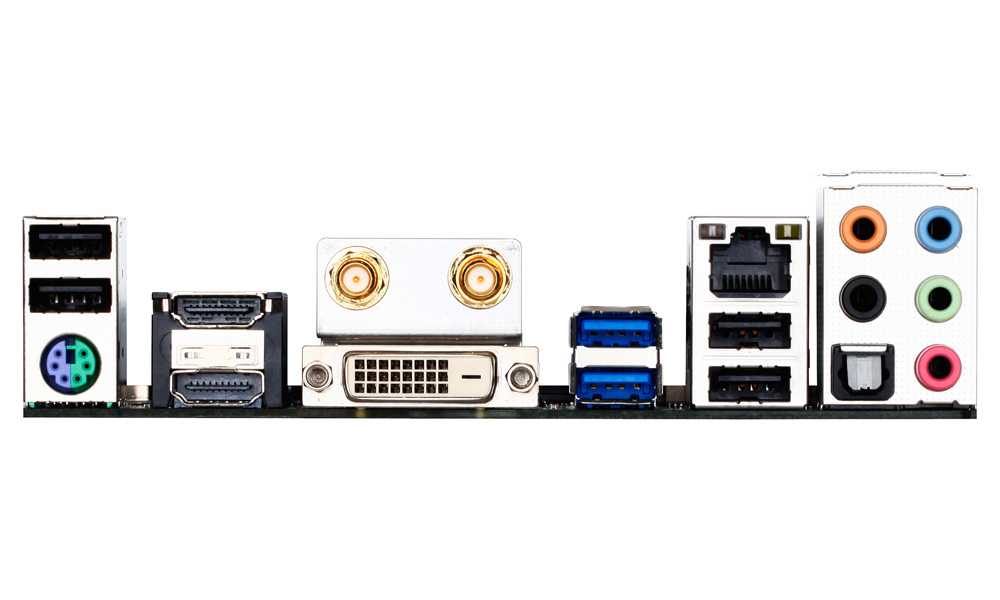

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4a |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| WiFi-AP antenna jack | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A88X |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Power supply, Temperature |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| Mini PCI Express slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Dual Link DVI | Yes |
| Number of processors supported | 1 |
| PCI Express slots quantity | 2 |
What people say
Reviews & ratings
GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX
No reviews yet
Be the first to tell others how GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX
All motherboard comparisons- GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX vsGIGABYTE GA-H81TN motherboard Intel® H81 LGA 1150 (Socket H3) mini ITXCompare specs
- GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX vsGIGABYTE GA-H87TN motherboard Intel® H87 LGA 1150 (Socket H3) mini ITXCompare specs
- GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX vsGIGABYTE GA-970A-UD3P motherboard AMD 970 Socket AM3+ ATXCompare specs

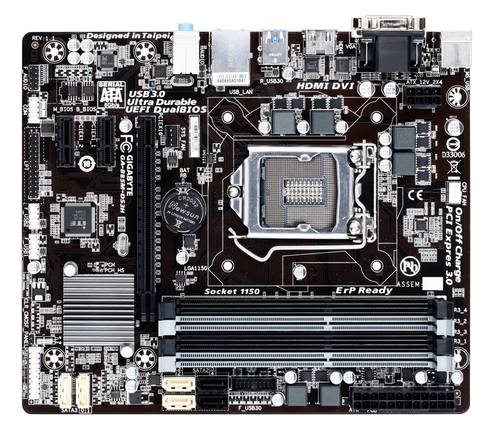

- GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX vsGIGABYTE GA-B85M-DS3H motherboard Intel® B85 LGA 1150 (Socket H3) micro ATXCompare specs
- GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX vsASUS A55BM-PLUS AMD A55 FCH Socket FM2+ micro ATXCompare specs
- GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX vsASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATXCompare specs
- GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX vsASUS P8Z68V-PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATXCompare specs

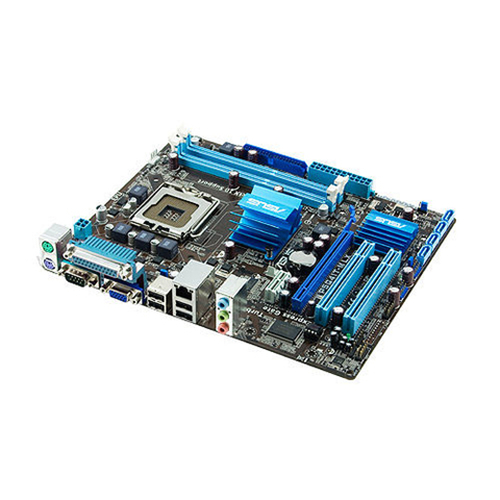

- GIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITX vsASUS P5G41TM-LX motherboard Intel® G41 LGA 775 (Socket T) micro ATXCompare specs
