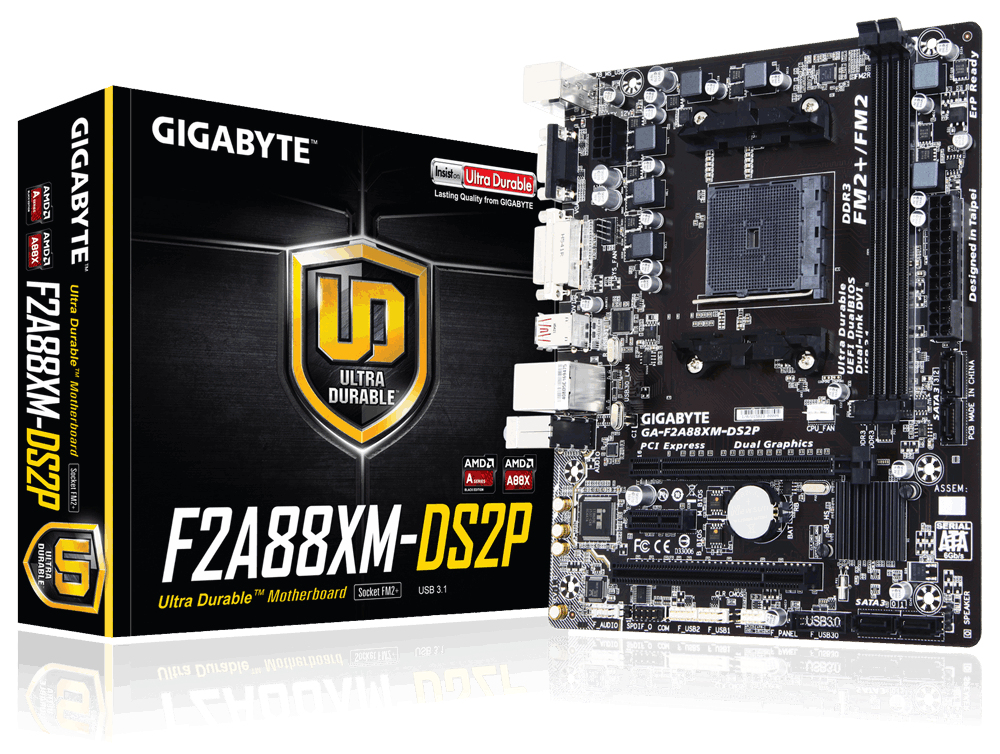

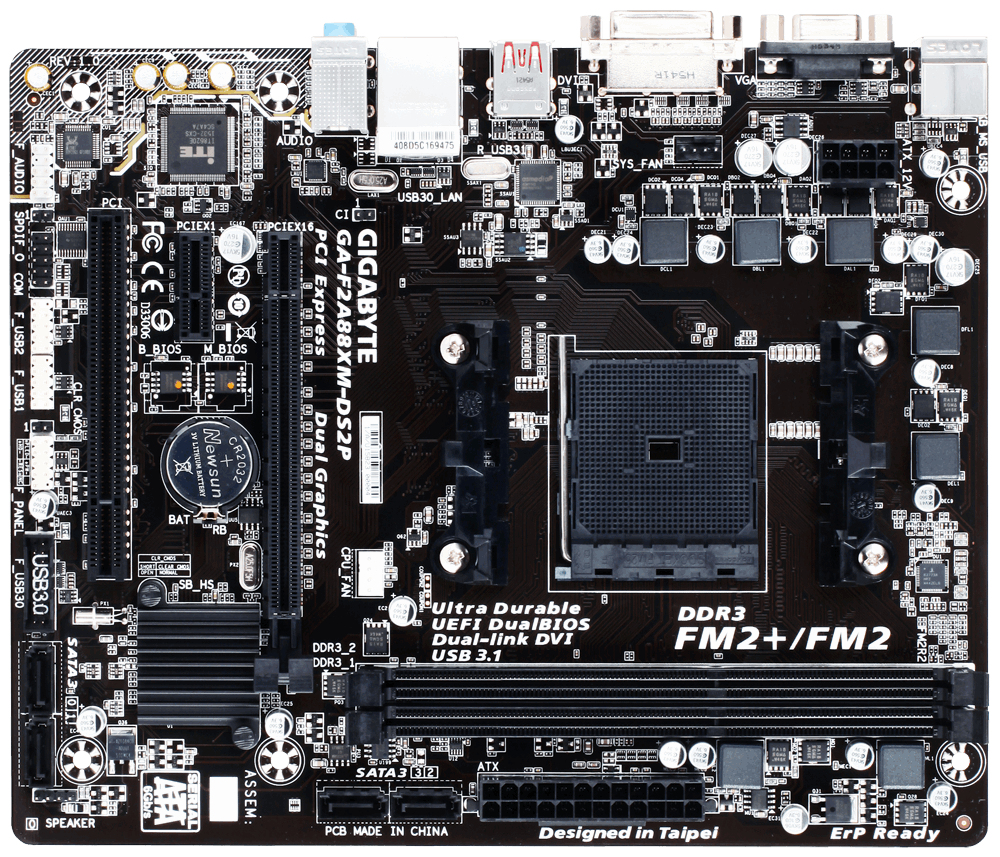

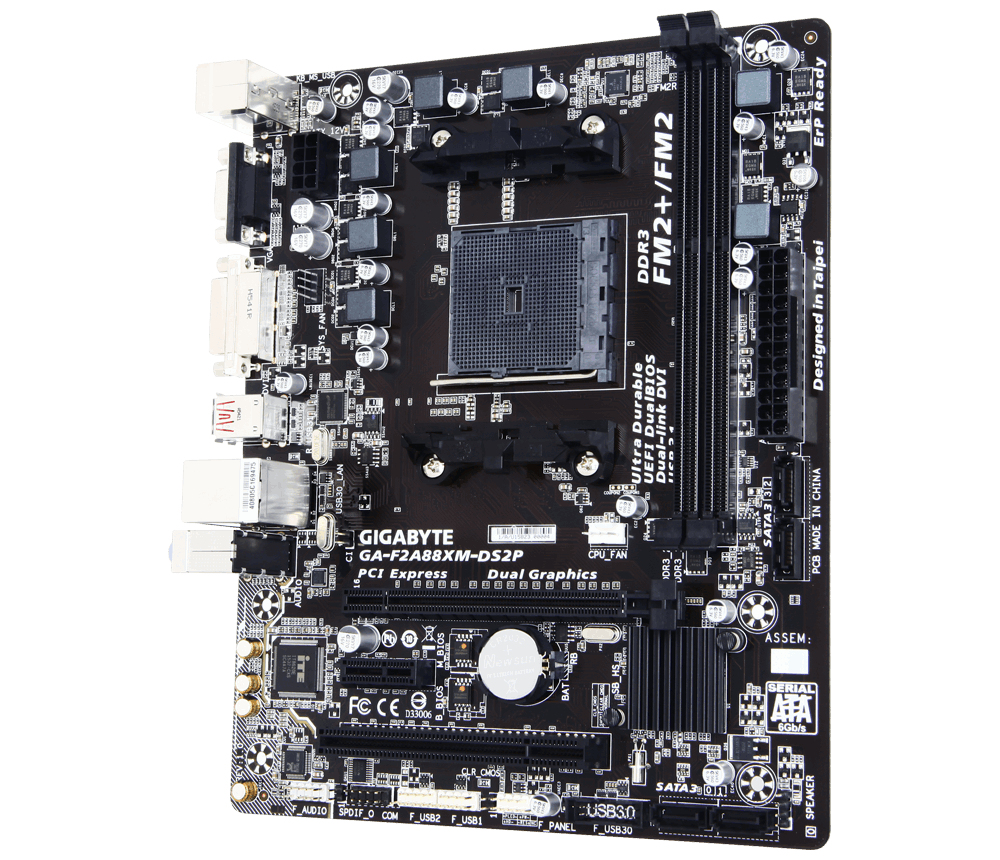

GIGABYTE GA-F2A88XM-DS2P (rev. 1.0)

GIGABYTE GA-F2A88XM-DS2P (rev. 1.0)

Model GA-F2A88XM-DS2P (rev. 1.0)Part no. GA-F2A88XM-DS2PEAN 4719331803223

52 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA
  • Maximum graphics card memory2000 MB
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA
Maximum graphics card memory
2000 MB
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
GA-F2A88XM-DS2P (rev. 1.0)
Part number
GA-F2A88XM-DS2P
EAN / UPC
4719331803223
Also known as
GIGABYTE GA-F2A88XM-DS2P (rev. 1.0) A88X Socket FM2+ micro ATX

Specifications

52 specifications in 14 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM2+
Compatible processor seriesAMD A

Memory

Supported memory typesDDR3-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds1333,1600,1866,2133,2400 MHz
Maximum internal memory64 GB
Supported memory module capacities1GB, 2GB, 4GB, 8GB, 16GB, 32GB, 64GB

Storage controllers

Supported storage drive interfacesSATA
RAID levels0, 1, 5, 10, JBOD

Graphics

Maximum graphics card memory2000 MB
Graphics card familyAMD

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Serial port headers1

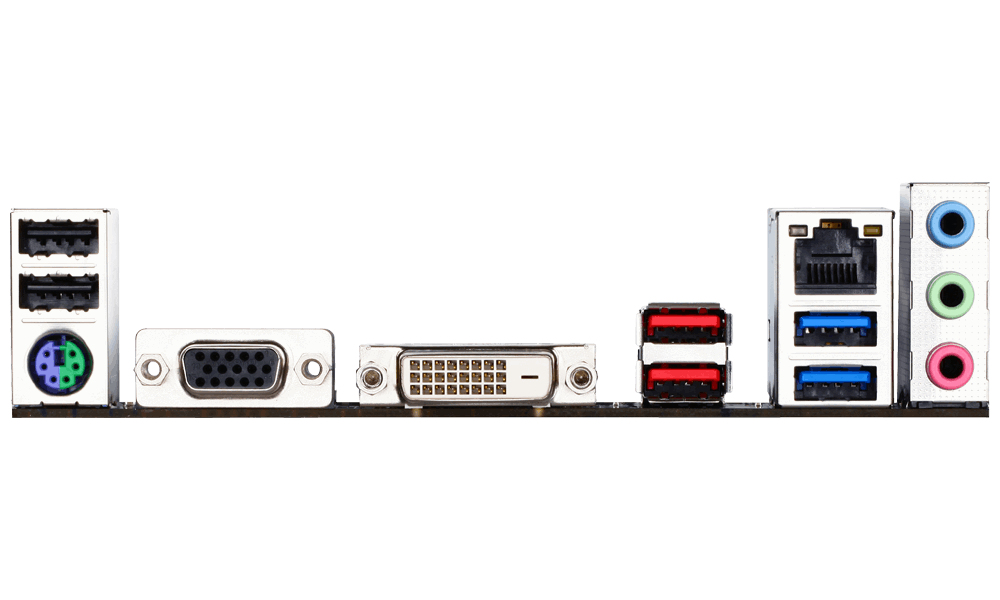

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
VGA (D-Sub) ports quantity1
DVI-D ports quantity1
Microphone inYes
USB connector typeUSB Type-A

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetA88X
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Window

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width226 mm
Depth185 mm

Packaging content

Bundled softwareNorton® Internet Security (OEM version)

Other features

Other features@BIOS, Cloud Station, EasyTune, Smart TimeLock, Game Controller, Smart Recovery 2, System Information Viewer, USB Blocker, Q-Flash, ON/OFF Charge, Smart Switch, Xpress Install
