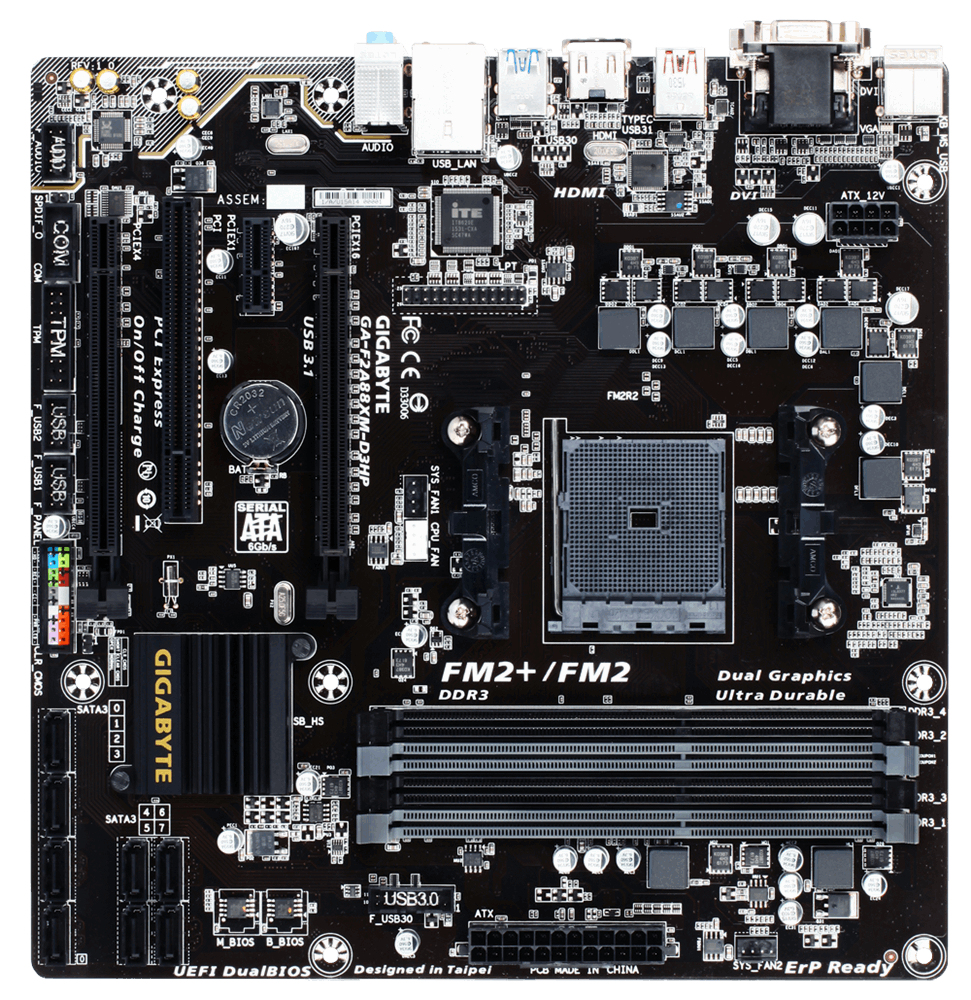

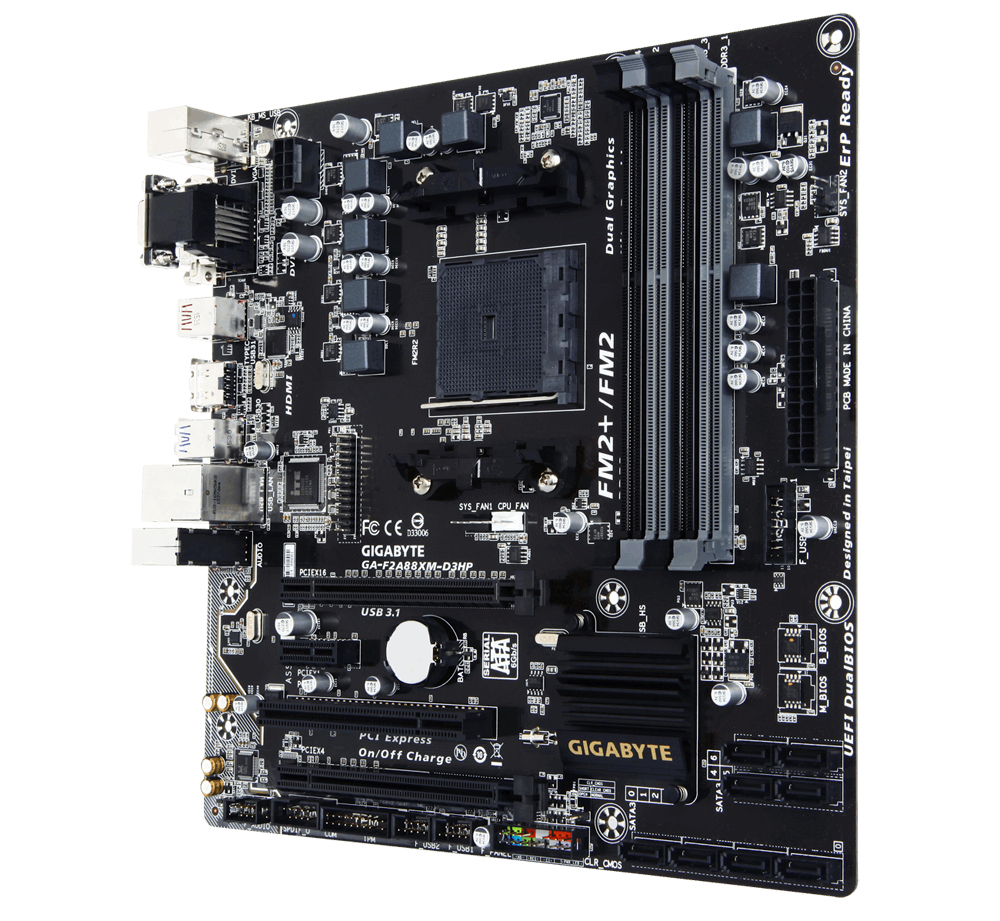

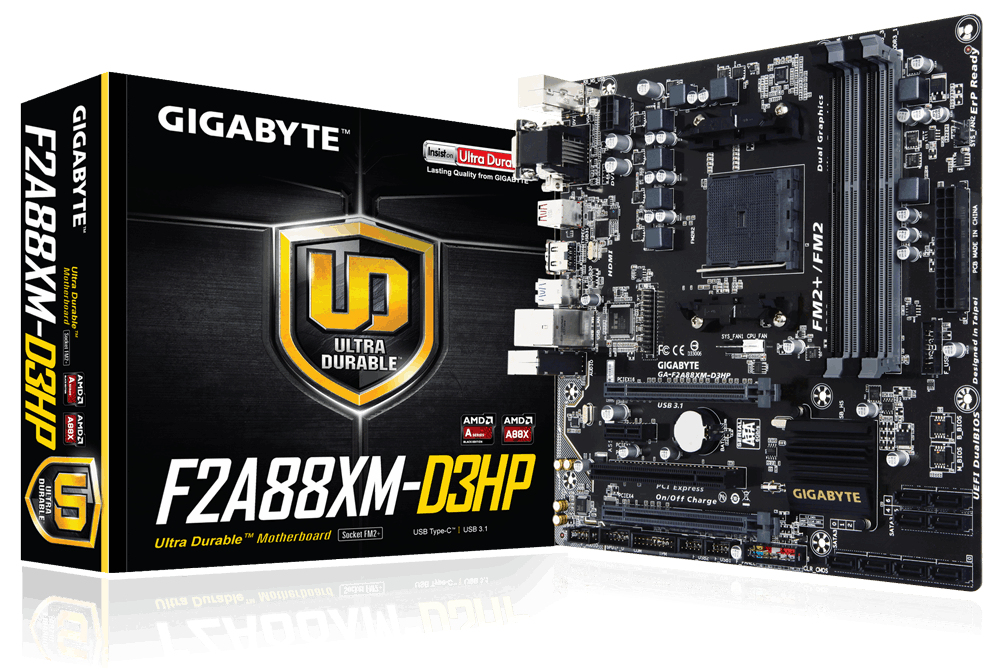

GIGABYTE GA-F2A88XM-D3HP motherboard A88X Socket FM2+ micro ATX
Model GA-F2A88XM-D3HPPart no. GA-F2A88XM-D3HP-R1EAN 8809481924575
58 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA
- Maximum graphics card memory2000 MB
- USB 2.0 connectors8
- Ethernet LANYes
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA
- Maximum graphics card memory
- 2000 MB
- USB 2.0 connectors
- 8
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-F2A88XM-D3HP
- Part numbers
- GA-F2A88XM-D3HP-R1, GA-F2A88XM-D3HP
- EAN / UPC
- 8809481924575, 889523003992, 2529011613040, 4719331852252 +1 more
- Also known as
- GIGABYTE GA-F2A88XM-D3HP motherboard A88X Socket FM2+ micro ATX
Specifications
58 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket FM2+ |
| Compatible processor series | AMD Athlon |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 1333,1600,1866,2133,2400 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB, 32GB, 64GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
| RAID levels | 0, 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 2000 MB |
| On-board graphics card | Yes |
| Graphics card family | AMD |
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 3 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| Number of SATA connectors | 8 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

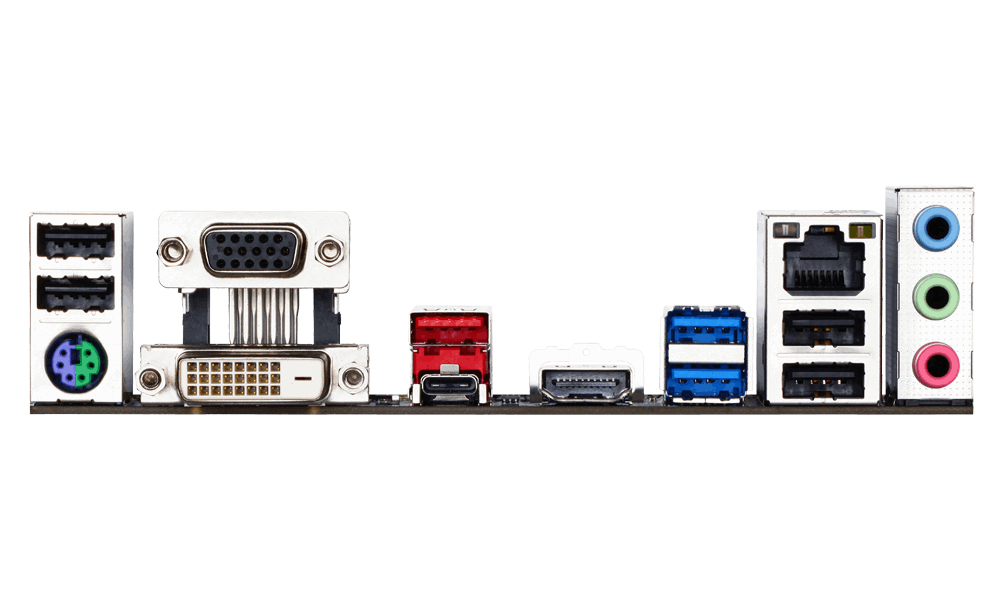

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | A88X |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Window |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Height | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton® Internet Security (OEM version) |
Other features
| Specification | Value |
|---|---|
| Dual Link DVI | Yes |
What people say
Reviews & ratings
GIGABYTE GA-F2A88XM-D3HP motherboard A88X Socket FM2+ micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-F2A88XM-D3HP motherboard A88X Socket FM2+ micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-F2A88XM-D3HP motherboard A88X Socket FM2+ micro ATX
All motherboard comparisons- GIGABYTE GA-F2A88XM-D3HP motherboard A88X Socket FM2+ micro ATX vsGIGABYTE GA-X170-EXTREME ECC (rev. 1.0)Compare specs
- GIGABYTE GA-F2A88XM-D3HP motherboard A88X Socket FM2+ micro ATX vsGIGABYTE GA-X99-UD5WIFI motherboard Intel® X99 LGA 2011-v3 Extended ATXCompare specs
- GIGABYTE GA-F2A88XM-D3HP motherboard A88X Socket FM2+ micro ATX vsGIGABYTE GA-F2A88X-D3HP (rev. 1.0)Compare specs

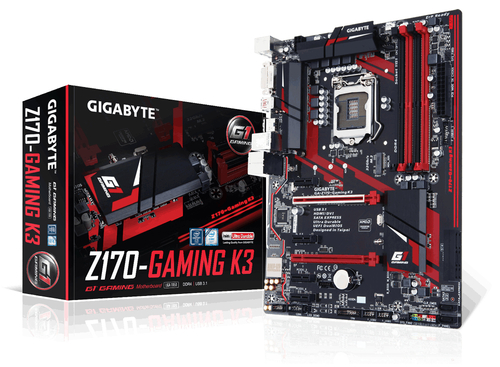

- GIGABYTE GA-F2A88XM-D3HP motherboard A88X Socket FM2+ micro ATX vsGIGABYTE GA-Z170-Gaming K3 (rev. 1.0)Compare specs
