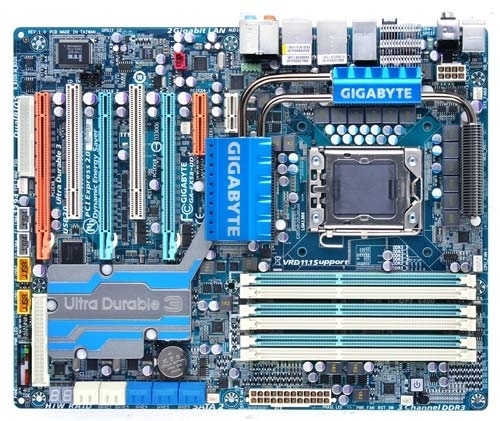

GIGABYTE GA-EX58-UD5 motherboard Socket B (LGA 1366) ATX
Model GA-EX58-UD5EAN 818313006837
42 specifications
- Processor manufacturerIntel
- Number of memory slots6
- USB 2.0 connectors12
- USB 2.0 ports quantity8
- Networking features10/100/1000 Mbit
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- USB 2.0 connectors
- 12
- USB 2.0 ports quantity
- 8
- Networking features
- 10/100/1000 Mbit
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-EX58-UD5
- Part number
- GA-EX58-UD5
- EAN / UPC
- 818313006837, 4719331843205
- Also known as
- GIGABYTE GA-EX58-UD5 motherboard Socket B (LGA 1366) ATX
Specifications
42 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| Memory voltage | 1.5 V |
| Maximum internal memory | 24 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 12 |
| Number of SATA connectors | 10 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 3 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Vista, XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 2 |
| Expansion slots | 2 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Trial software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
