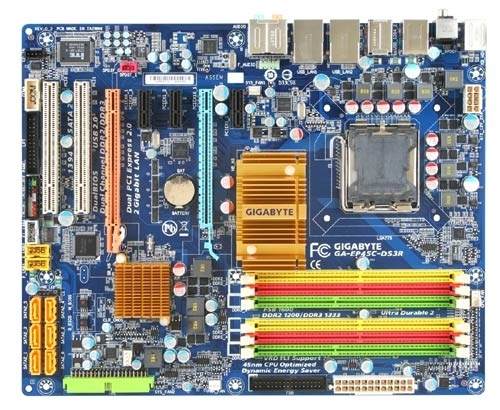

GIGABYTE GA-EP45C-DS3R (rev. 1.0)
Model GA-EP45C-DS3R (rev. 1.0)Part no. GA-EP45C-DS3REAN 4719331819125
33 specifications
- Processor manufacturerIntel
- Number of memory slots2
- RAID levels0, 1, 10
- USB 2.0 ports quantity8
- LAN controllerRealtek RTL8111C
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- RAID levels
- 0, 1, 10
- USB 2.0 ports quantity
- 8
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-EP45C-DS3R (rev. 1.0)
- Part number
- GA-EP45C-DS3R
- EAN / UPC
- 4719331819125
- Also known as
- GIGABYTE GA-EP45C-DS3R (rev. 1.0) LGA 775 (Socket T) ATX
Specifications
33 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft/ Windows/ Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
