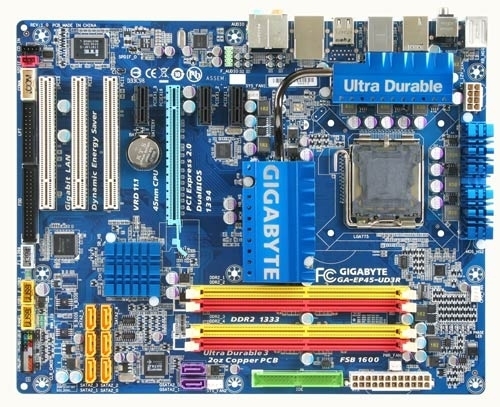

GIGABYTE GA-EP45-UD3R motherboard Intel® P45 LGA 775 (Socket T) ATX
Model GA-EP45-UD3REAN 818313006424
61 specifications
- Processor manufacturerIntel
- Supported memory typesDDR2-SDRAM
- Supported storage drive interfacesIDE, SATA II
- Parallel processing technology supportNot supported
- USB 2.0 connectors12
- USB 2.0 ports quantity8
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR2-SDRAM
- Supported storage drive interfaces
- IDE, SATA II
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 12
- USB 2.0 ports quantity
- 8
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-EP45-UD3R
- Part number
- GA-EP45-UD3R
- EAN / UPC
- 818313006424, 4719331836108
- Also known as
- GIGABYTE GA-EP45-UD3R motherboard Intel® P45 LGA 775 (Socket T) ATX
Specifications
61 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® 4, Intel® Pentium® 4 Extreme Edition, Intel® Pentium® D, Intel® Pentium® Extreme Edition |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR2-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.8 V |
| Supported memory clock speeds | 677,800,1066 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | IDE, SATA II |
| RAID levels | 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 12 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 8 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 3 |

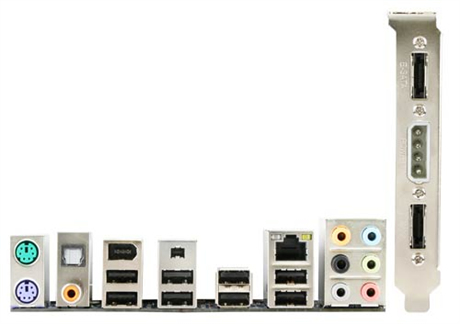

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® P45 |
| Audio chip | Realtek ALC889A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Vista, XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
| Expansion slots | 3 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Trial software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
